Voltage Sensitive Relay

Product Specifications

Voltage Sensitive Relay

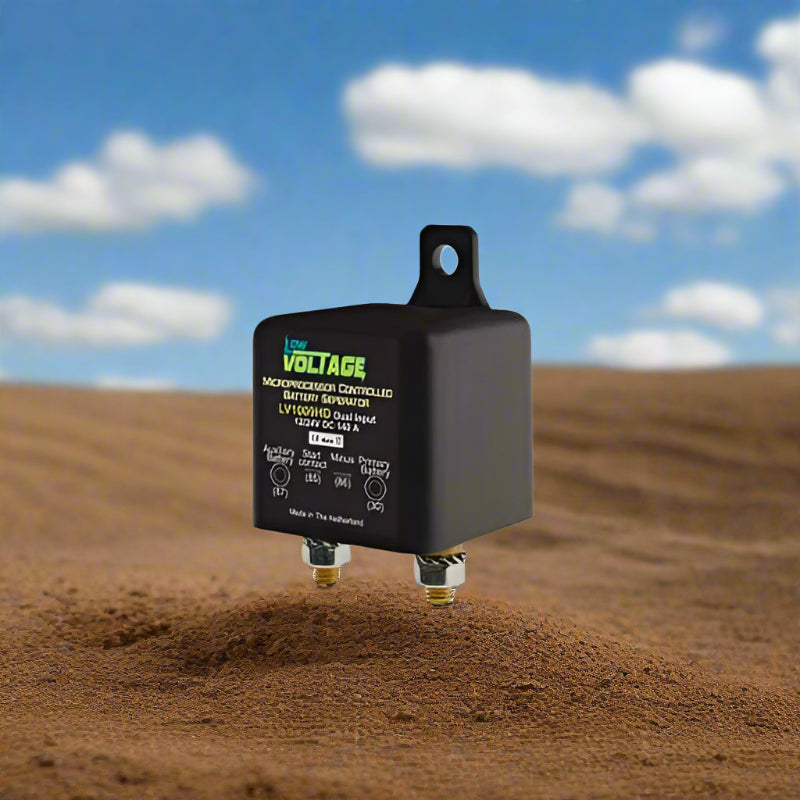

The LV1009HD is designed for use in situations where 2 batteries are used; for example in boats, campers and caravans. The LV1009HD is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a present voltage for at least 5 seconds (13,2V/26,4V) (indicating that the battery is being charged), and disconnects when the voltage decreases below float level for at least 5 seconds (12,8V/25,6V) (indicating that one or more batteries are being discharged). The Battery Separator is an excellent alter native to a battery isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased. Another advantage is that the LV1009HD is that it can be mounted without changing the existing circuit. That makes the LV1009HD not only very easy to install, but is sometimes the only option because some alternators do not accept a Battery Isolator between itself and the the battery
