Vacuum Switching Valve Connector Kit - Toyota

Vacuum Switching Valve Connector Kit - Toyota

Black Right Keyway 2 way sealed female connector kit complete with terminals and seals suits Toyota Vacuum Switching Valve connectors.

Jay-Dee Part #: TVSVR2K

Pack Qty: 1 (1 x Connector, 1 x Lock, 2 x Terminal, 2 x Seal)

Brand: Jay-Dee

Material: Housing:PBT+G,PA66+GF;Terminal:Copper Alloy, Brass, Phosphor Bronze

Operating Temperature range -40℃~120℃

Length: 23.90mm

Width: 20.60mm

Height: 21.00mm

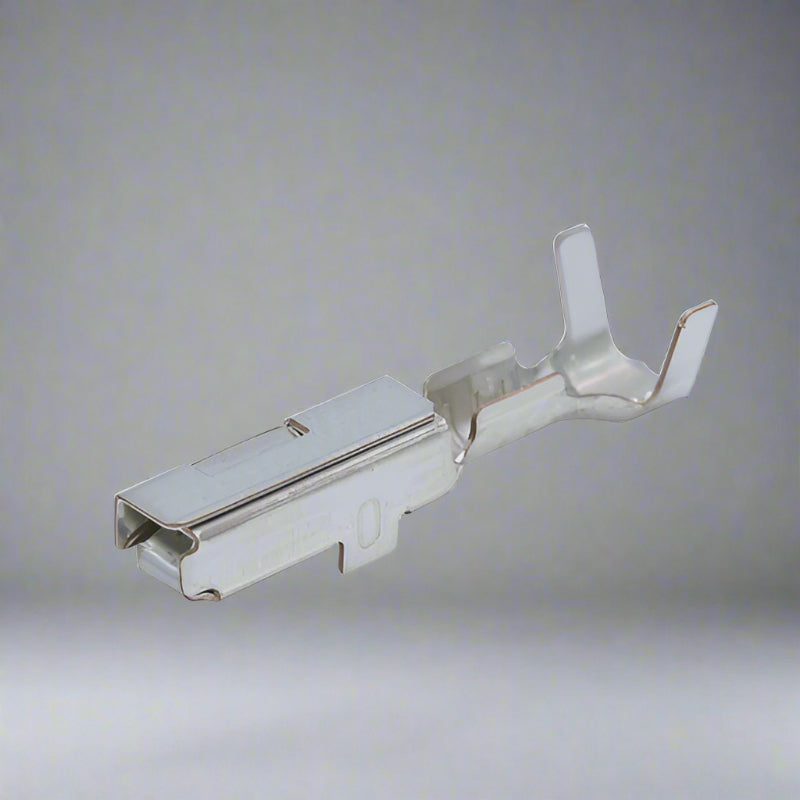

Spare Terminals: AUDPT

Applications:

Toyota Vacuum Switching Valve

Toyota 1UZGTE Variable Intake Control Solenoid

Toyota 2JZGTE Twin Turbo Systems Solenoid

Toyota - Some Speed Sensors

Recommended Crimping Tools:

IWS-1424AB
