Vacuum Switching Valve Connector Kit - Toyota

Vacuum Switching Valve Connector Kit - Toyota

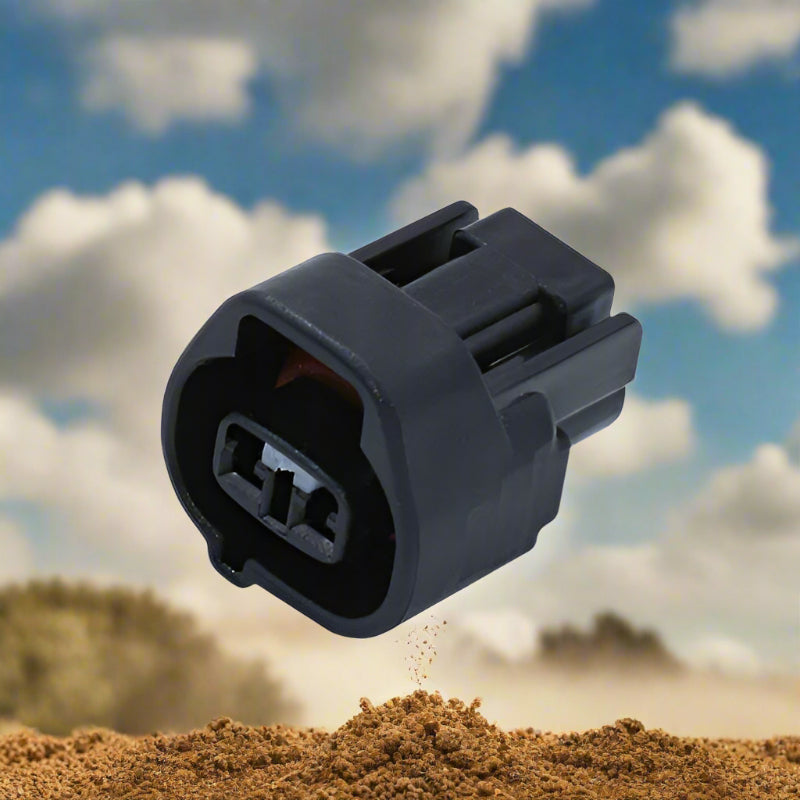

Black Left Keyway 2 way sealed female connector kit complete with terminals and seals suits Toyota Vacuum Switching Valves & Mitsubishi Mivec Dual Boost connectors.

Please refer to the applications tab below.

Jay-Dee Part #: TVSVL2K

Pack Qty: 1 (1 x Connector, 1 x Lock, 2 x Terminal, 2 x Seal)

Brand: Jay-Dee

Material: Housing:PBT+G,PA66+GF;Terminal:Copper Alloy, Brass, Phosphor Bronze

Operating Temperature range -40℃~120℃

Length: 23.90mm

Width: 20.60mm

Height: 21.00mm

Spare Terminals: AUDPT

Applications:

Toyota 1JZGTE Vacuum Switching Valve

Toyota 2JZGTE Vacuum Switching Valve

Toyota 1UZGTE Vacuum Switching Valve

Toyota - Some Speed Sensors

Mitsubishi Mivec Dual Boost Connector

Recommended Crimping Tools:

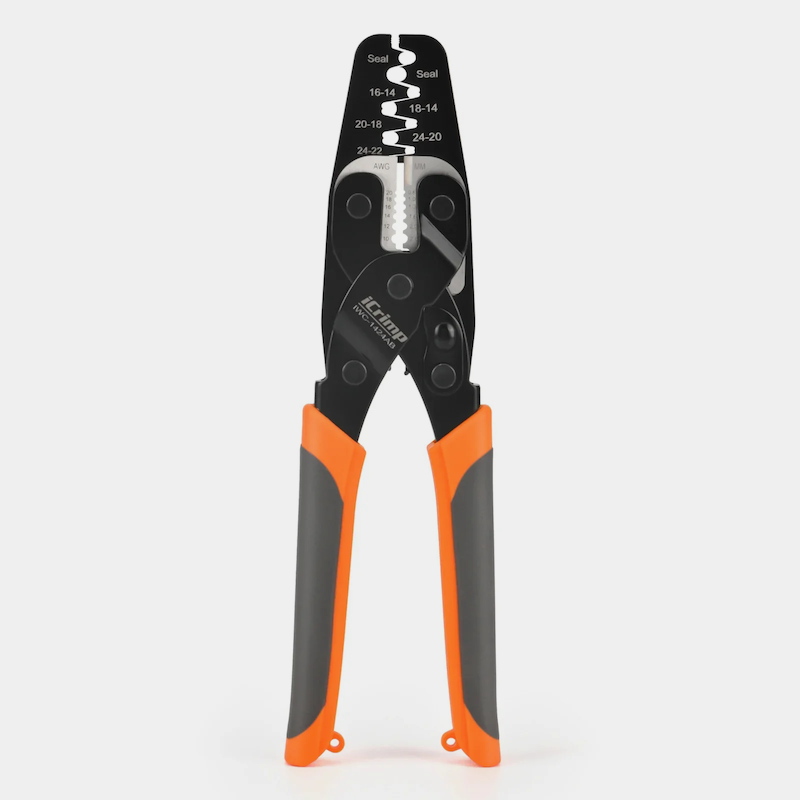

IWS-1424AB
