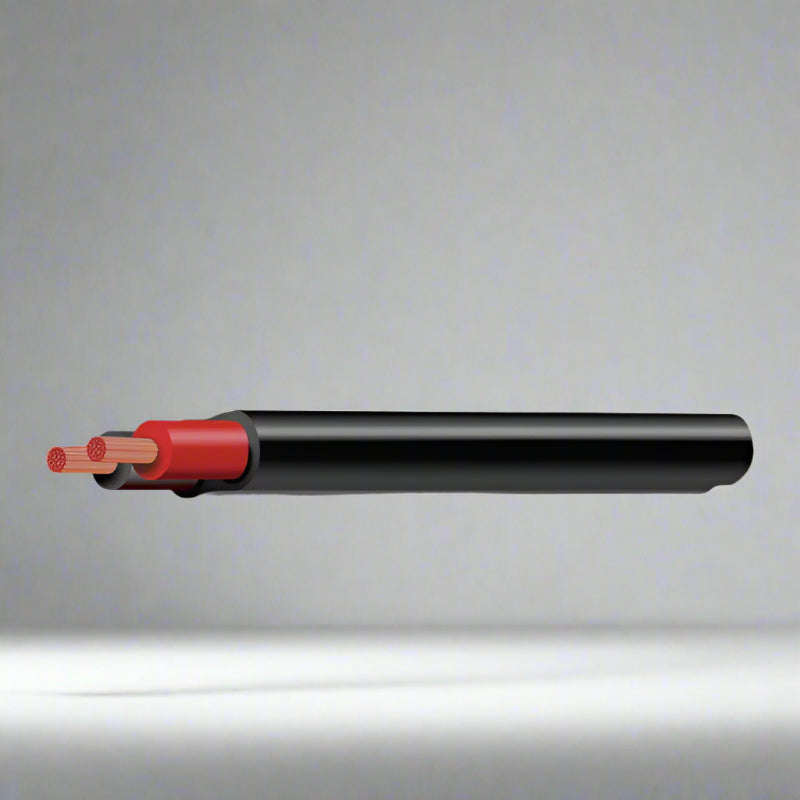

Twin Sheathed Cable

C2/18-1



Oxygen free plain copper conductor to 99.98%
60 V dc / 25 V ac

PVC V90 HT (V105)



Code Industry Conductor Nom mm2 AMP  Insulation Resistance Nom OD
C2/18 2mm 7/0.32 0.56 7 0.4/0.6 45.0 3.70 x 5.60
C2/16 3mm 14/0.32 1.13 16 0.4/0.6 15.8 3.90 x 6.40
C2/14 4mm 23/0.32 1.84 22 0.4/0.6 9.5 4.00 x 6.50
C2/12 5mm 36/0.32 2.90 29 0.4/0.6 6.0 4.70 x 7.50
C2/10 6mm 57/0.32 4.59 38 0.4/0.6 3.8 6.10 x 9.00
C2/8 8AWG 96/0.32 7.71 59 7.10 x 12.50
C2/6 6AWG 168/0.32 13.50 82 8.80 x 16.00
C2/2 2AWG 399/0.32 32.07 150 13.40 x 24.60



AMP rating uses JASO D609 derating factors

Resistance is @20oC (ohm/km)



Roll size available in 1m, 10m, 30m,50m,100m
Sheath Colour: Black

Core Colours: Red/Black, Red/Blue, Brown/White



Download Sizing Guide
