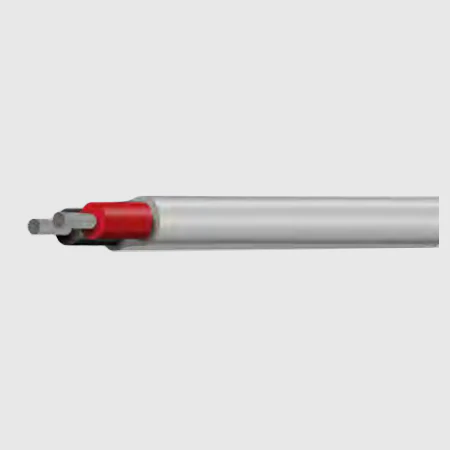

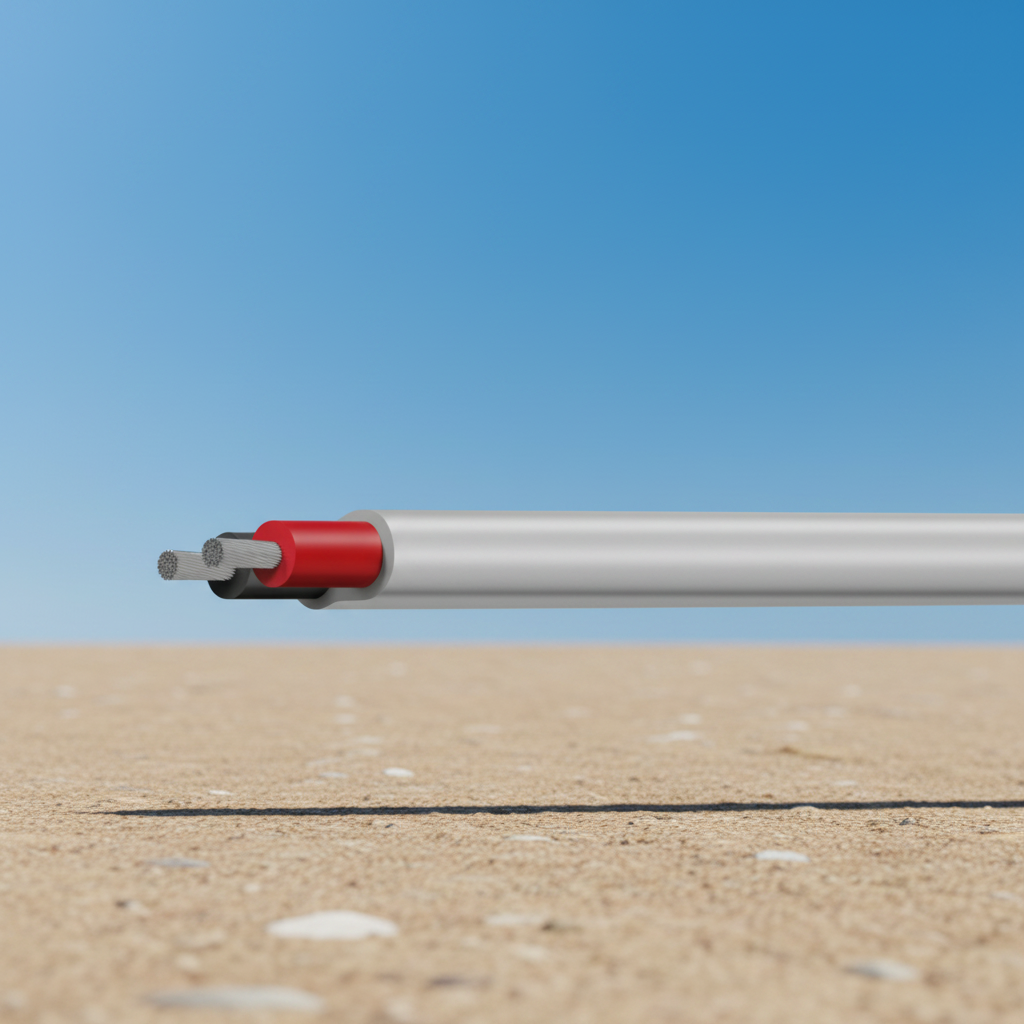

Twin Sheath Marine Cable

Marine Twin Sheath Cable

Extra low voltage twin core tinned cable to suit pleasure craft and general purpose marine wiring.

Colour: White Outer Sheath/Red & Black Cores

Industry Equivalent Size: 3mm, 4mm or 6mm (Auto)

Gauge: 16, 14 or 10 AWG

Nominal Area: 1.13mm², 1.84mm² or 4.59mm²

AMP Rating at 30°C: 16 (Derating factors apply - Refer to JASO D609)

Conductor: Tinned Copper Wire (TCW) TO AS/NZS 1125

Conductor Qty & Diameter: 14/.032mm, 24/0.32mm or 57/0.32mm

Insulation: RoHS Compliant V90 P.V.C. to AS/NZS 3808

Insulation Thickness: 0.4mm
