Toyota Knock Sensor Connector Kit

Toyota Knock Sensor Connector Kit

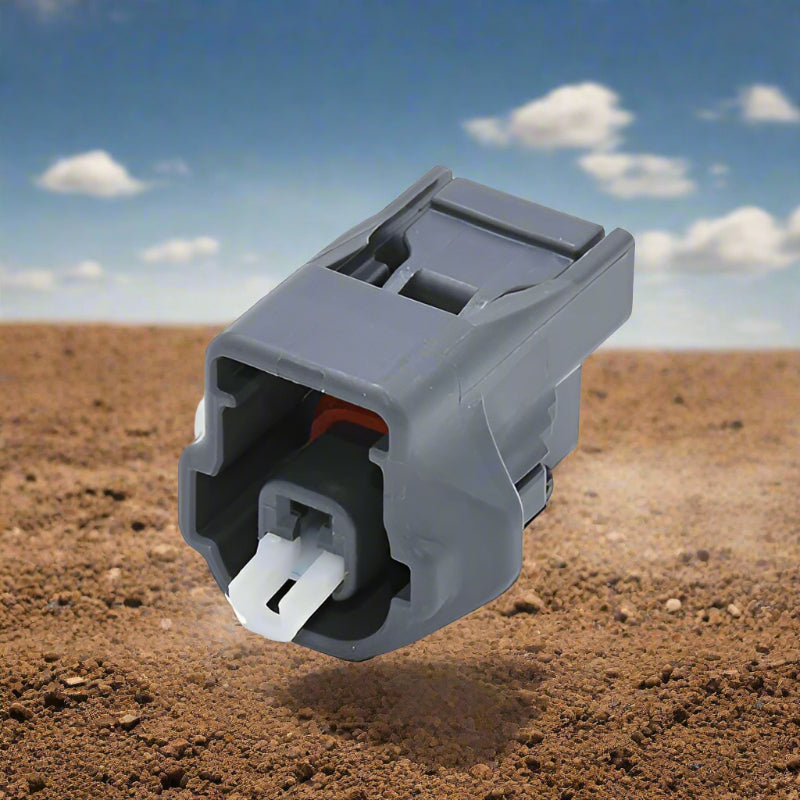

Grey 1 way sealed female connector kit complete with terminal and seal suits Toyota vehicle knock sensors.

Please refer to the applications tab below.

Jay-Dee Part #:TKS1K

Pack Qty: 1 (1 x Connector, 1 x Secondary Lock, 1 x Terminal, 1 x Seal)

Brand: Jay-Dee

Material: Housing:PBT+G,PA66+GF;Terminal:Copper Alloy,Brass,Phosphor Bronze

Operating Temperature range -40℃~120℃

Length: 24.50mm

Width: 20.90mm

Height: 19.15mm

Spare Terminals: AUDPT

Applications:

Toyota 3SGE Knock Sensor

Toyota 1JZ Knock Sensor

Toyota 2JZ Knock Sensor

Toyota 1UZFE Knock Sensor

Recommended Crimping Tools:

IWS-1424B
