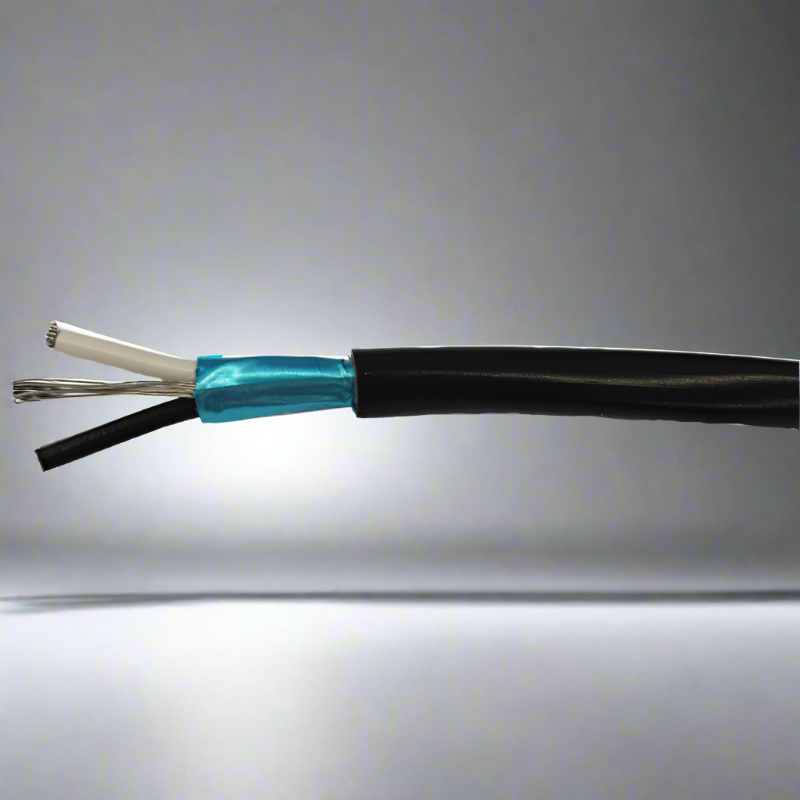

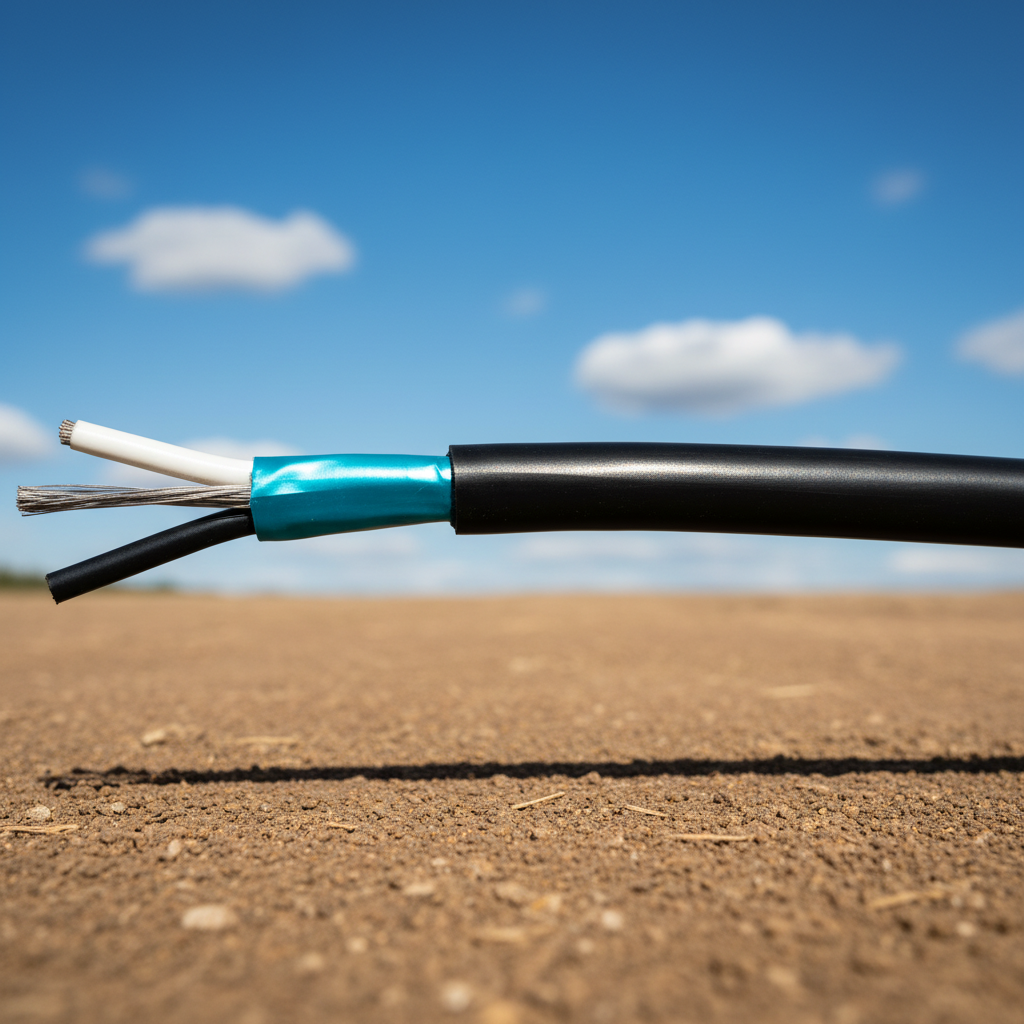

Security Cable

C4/SEC.5-100



 Security Cables

Typical Features (Multi Core; One Pair):

Application: Security systems, control and communications equipment, access control, detection and monitoring.
Conductor: Plain annealed copper
Insulation: PVC V75
Sheath: PVC V75
Voltage: 100v DC or 32V AC
Standard: AS/NZS 1125 (Conductor) and AS/NZS 3808 (PVC)
Pack Length:

100m, 250m, 300m, 500m





Code

Nom.area
mm²

No. Core/
Stranding No./mm

Nom.
O/D.mm

Insulation
Thickness mm

Sheath
Thickness mm

Amp
Rating

Max. cond. DC.
Resistance
@ 20°C ©/km

CSEC-14208

0.44

8 x 14/0.20

5.8

0.3

0.5

2.8

43.2

C4/SEC.5

 0.44

4 x 14/0.20

4.4

0.3

0.4

2.8

43.2
