Projecta DC/DC & Solar Charger IDC25
Projecta DC/DC & Solar Charger IDC25
Projecta DC/DC & Solar Charger IDC25
  • Part #: PIDC25
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

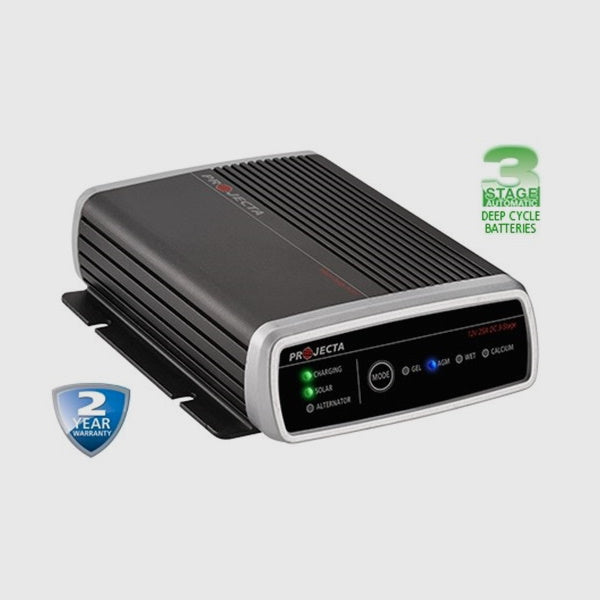

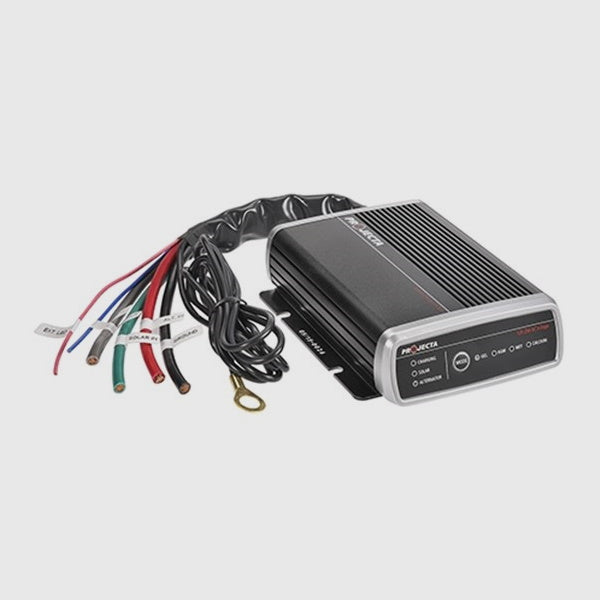

Projecta DC/DC & Solar Charger IDC25


Automatic 9-32V 25A 3 Stage DC/Solar Battery Charger - IDC25 V4

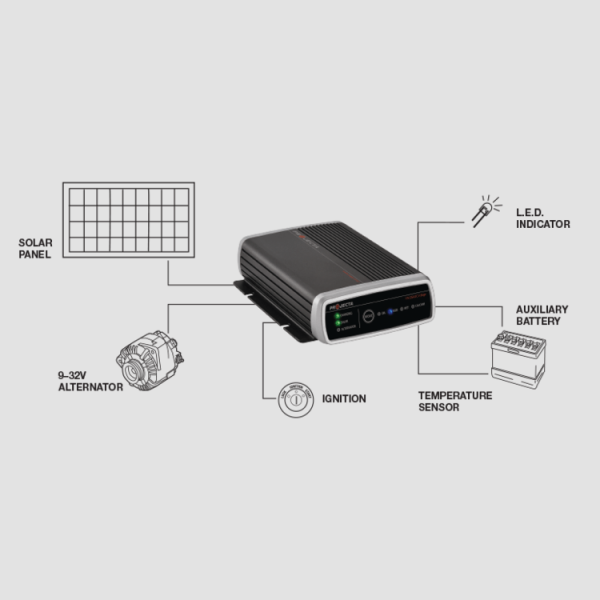

Allows you to charge your 12V second/auxiliary deep cycle battery on the go, simultaneously from solar and alternator (9-32V) inputs. Provides an advanced 3 stage charging process to produce a safe and comprehensive charge, a must for deep cycle batteries.

Jay-Dee Part #: PIDC25

Pack Qty: 1

Brand: Projecta IDC25 - Version 4

  • Simultaneous dual battery charging from both solar and alternator inputs
  • Sealed to IP67, the IDC is dust, splash and shock proof and can safely operate in extreme temperatures up to 80°C
  • Set the charging profile to suit battery chemistry type: Wet, Calcium AGM or Gel
  • Combines your solar and vehicle’s power to deliver a comprehensive multi-stage charge ensuring longer battery life and performance.
  • A sophisticated dual battery charger engineered for in-vehicle or under bonnet installation on vehicles fitted with traditional or smart alternators.

Charge Type: 3 Stage

Alternator Input Voltage: 9-32Vdc

Max Solar Input: 28Vdc

Output Current:

Input 9-11Vdc 20A,

Input 11-32Vdc 25A


Back Drain on AUX Battery: 9.5-10.mA

Charger Control: Gel 14.1V, AGM 14.4V, Wet 14.7V, Calcium 15.4V

Battery Capacity: 75-300Ah

Batteries Supported: Gel, AGM, Wet & Calcium

Smart Alternator:

12V Turn On: 12.2-20V, Turn Off: <11.9V

24V: Turn On: 24.4-32V Turn Off: <24V


Conventional Alternator:

12V: Turn On: 13.4-20V Turn Off: <12.8V

24V: Turn On: 26.8-32V Turn Off: <25.6V


Operating Temperature: -10°C to +80°C
