Projecta 12V Smart Battery Gauge

BM320

1 item left

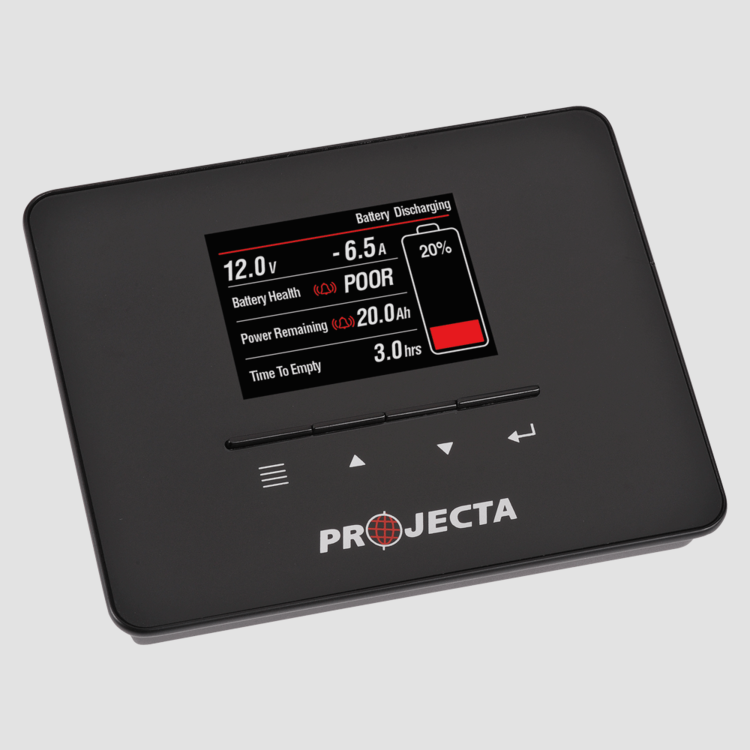

12V SMART BATTERY GAUGE

A sophisticated, full colour LCD monitor that accurately displays a battery’s total capacity, overall health and general status. Ideal for camper trailer and caravan interiors.

Jay-Dee Part #: BM320

Pack Qty: 1

Brand: Projecta BM320

2.4" colour LCD screen:

High intensity LCD screen displays: predicted state of charge, battery health, time to full charge and time to empty

Installation kit:

Kit includes 500 Amp shunt and terminals for professional installation

Total user control:

Easy to use and navigate buttons provide the user total control and the ability to program low battery capacity and battery health alarms

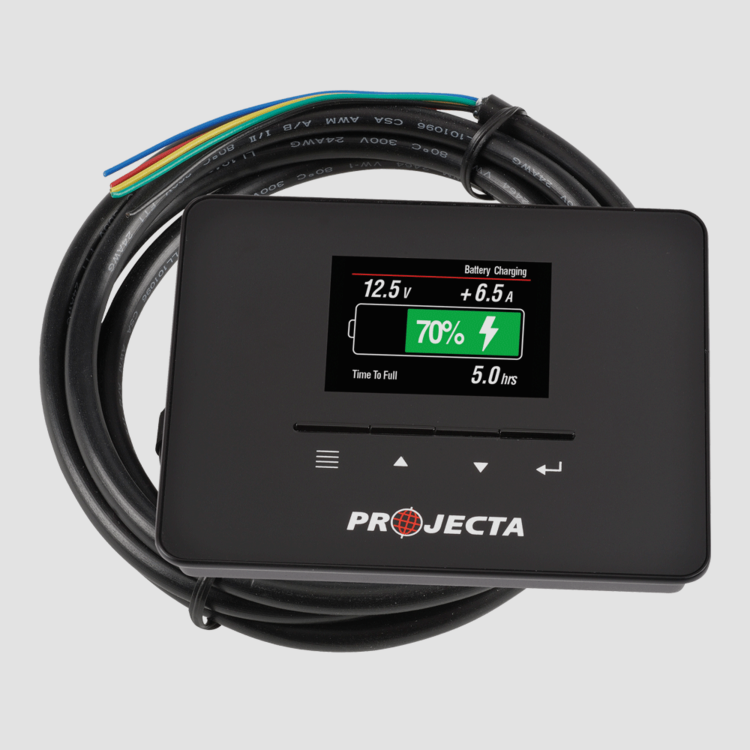

1.5M pre-wired harness:

Supplied pre-wired with 4 pin connector into the rear of the unit. A separate terminal block provides a further wiring option

Ease of fitment:

Easy and secure surface mount installation via supplied ‘click-fit’ mounting bracket enabling fixture to any surface



CURRENT DRAW: 12V/1.5mAdc

INPUT VOLTAGE RANGE: 6.0–17.0Vdc

MAX CURRENT: 320A

BATTERY CAPACITY SUPPORTED: 5-320AH

DISPLAY RESOLUTION: Current: 0.1A, Voltage: 0.1V, Battery Capacity: 0.1Ah

TYPE OF BATTERY SUPPORTED: Wet/AGM/Gel/Calcium

CABLE LENGTH: 1.5m

CONNECTORS: Terminal Block, Molex 4 pin snap fit

DISPLAY:

  • Time Remaining (to full/to empty)
  • Power Remaining (Ah)
  • Charging/Discharging Status
  • Battery State of Health (Ideal, Good, Fair, Poor)
  • Protection
  • Minimum Voltage: 6V
  • Input Over Voltage Protection: 17V
  • Reverse Polarity Protected
