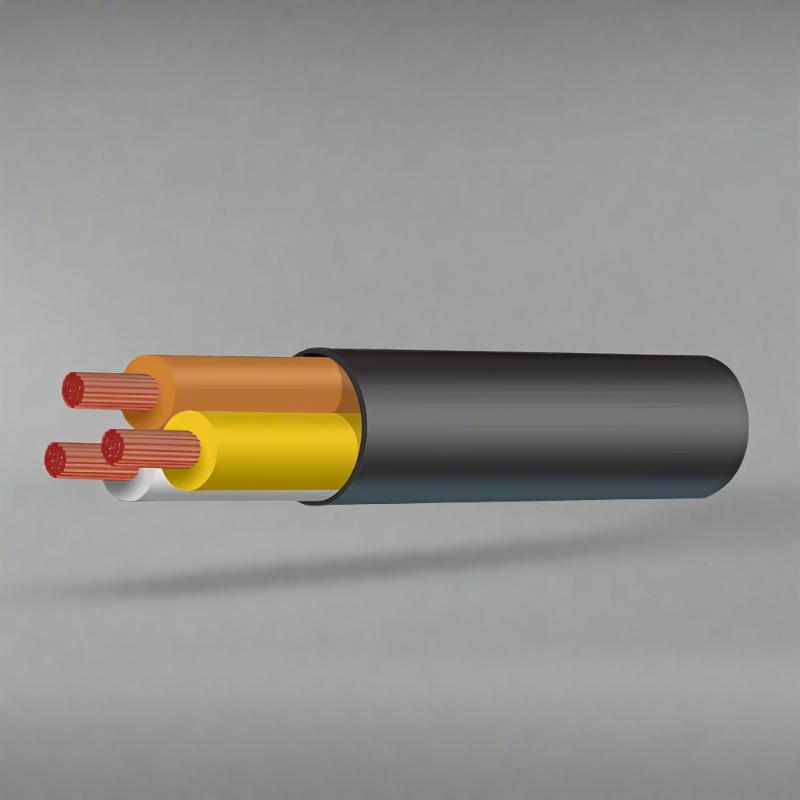

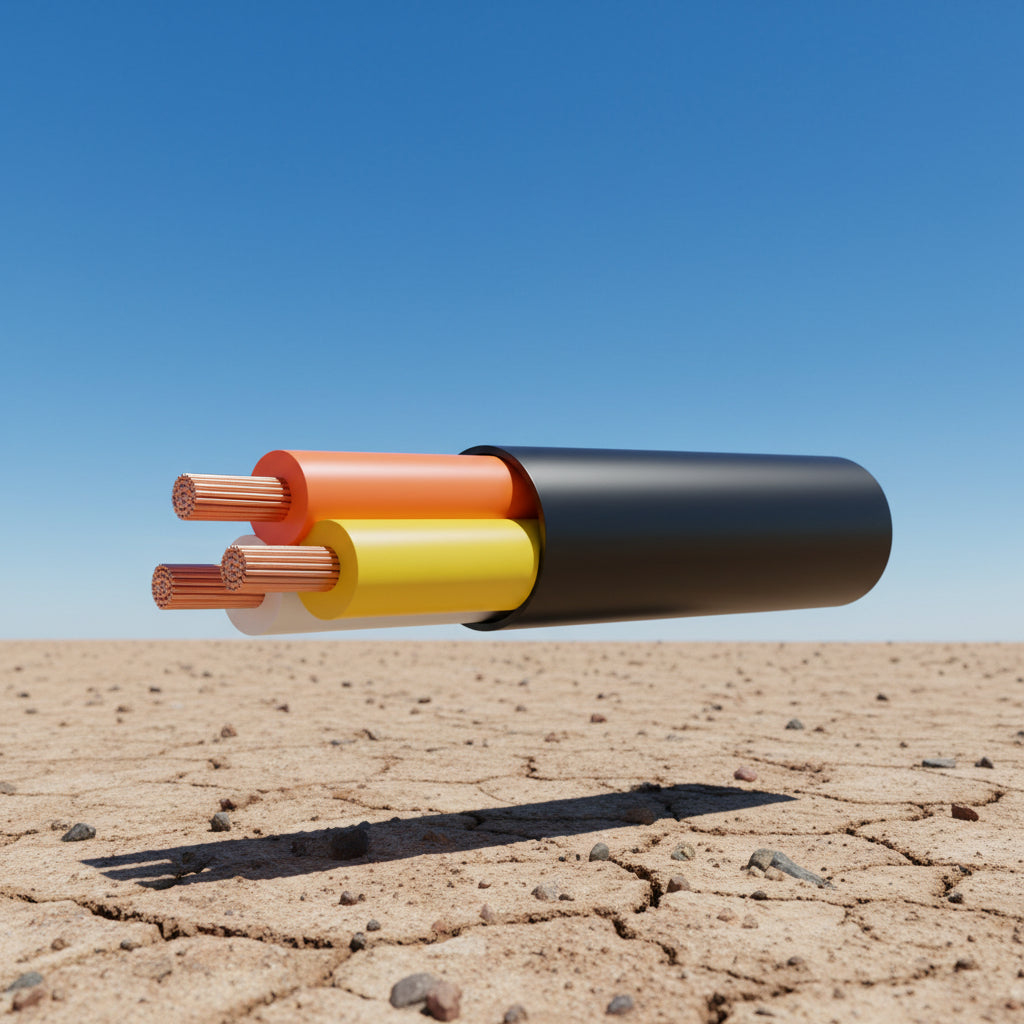

C3TR-16-30
Industry Standard Size: 3mm
Conductor Material: Oxygen free plain copper to 99.98%
Conductor Size: 14/.032mm per core
Nominal Conductor Area: 1.13mm² per core
AMP Rating: 14A per core (refer JASO D609 derating factors)
Industry Material: V90 PVC to AS/NZS 3808
Insulation Thickness: 0.40/0.60mm
Resistance: 16.80Ω @20°C (ohm/km)
Nominal OD: 5.9mm
Colour: Black Outer Sheath/Brown, White & Yellow Cores
Length: 30m, 100m
