C5/18-30

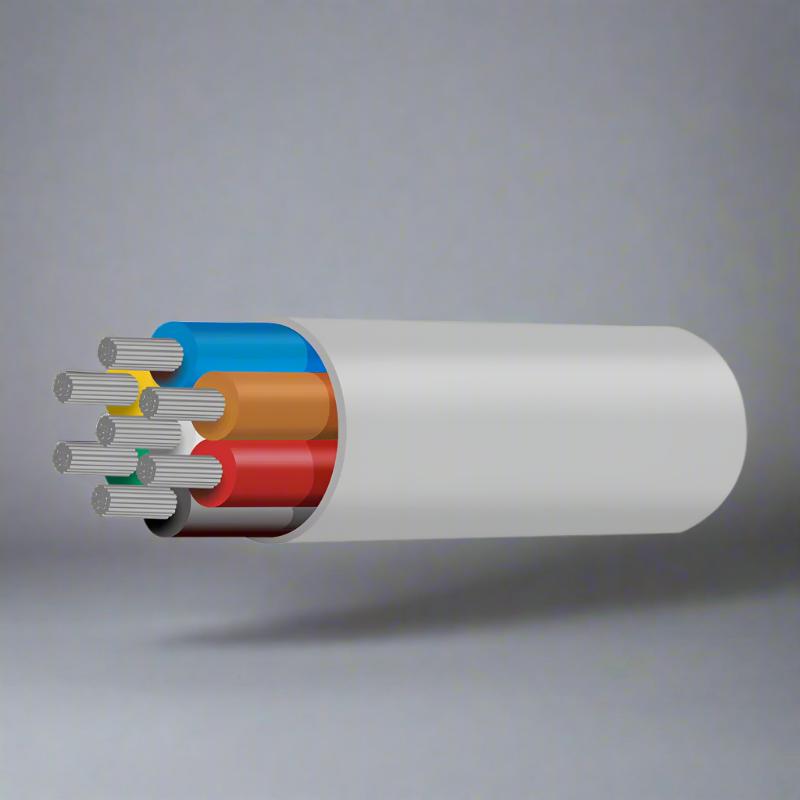

Multi Core Sheathed Cable

Cable Size
Cores
Length

Oxygen free plain copper conductor to 99.98%
60 V dc / 25 V ac

PVC V90 HT (V105)



Code Core Industry Conductor Nom mm2 AMP Insulation Resistance Nom OD
C3/16 3 3mm 14/0.32 1.13 14 0.4/0.6 16.8 5.9
C5/18 5 2mm 7/0.32 0.56 7 0.4/0.6 31.7 6.2
C5/16 5 3mm 14/0.32 1.13 11 0.4/0.6 15.8 7.3
C5/14 5 4mm 23/0.32 1.84 15 0.4/0.6 9.5 8.4
C7/18 7 2mm 7/0.32 0.56 5 0.4/0.6 31.7 6.6
C7/16 7 3mm 14/0.32 1.13 10 0.4/0.6 15.8 8.2
C7/14 7 4mm 23/0.32 1.87 14 0.4/0.6 9.5 9.1
C4/6653 2 6mm 57/0.32 4.59 38 0.6 3.80 10.0
1 5mm 36.032 2.90 37 0.4 6.00
1 3mm 14/0.32 1.13 20 0.4 15.8
C4/16 4 3mm 13/0.30 0.92 12 0.4 15.8 6.70



AMP rating uses JASO D609 derating factors
Resistance is @20oC (ohm/km)

Roll size available in 1m, 30m,100m, 500m
Sheath colours - Black

Core colours - White, Yellow, Brown, Red, Green, Black, Blue
