Multi-Block Housings AMP FASTIN-FASTON 250

AMP180907

Circuit Qty
Gender

Multi-Block Housings - FASTIN-FASTON

These FASTIN-FASTON 250 tab and receptacle housings are ideal for use as free hanging or panel mount harness connectors in a wide range of applications. Polarization and locking latches prevent mis mating and enable a secure mating connection.

Jay-Dee Part #: See Options.

Pack Qty:

Brand: Jay-Dee

Material: Housing: Natural color nylon UL94V-2

Voltage Rating: Up to 250V

Amp Rating: 24A per Circuit

Temperature Rating: 105°C max

Length: Male:22.90mm Female:31.50

Width: Male:10.20mm Female:12.70mm

Height: Male:16.40mm Female:21.10mm

Terminals:

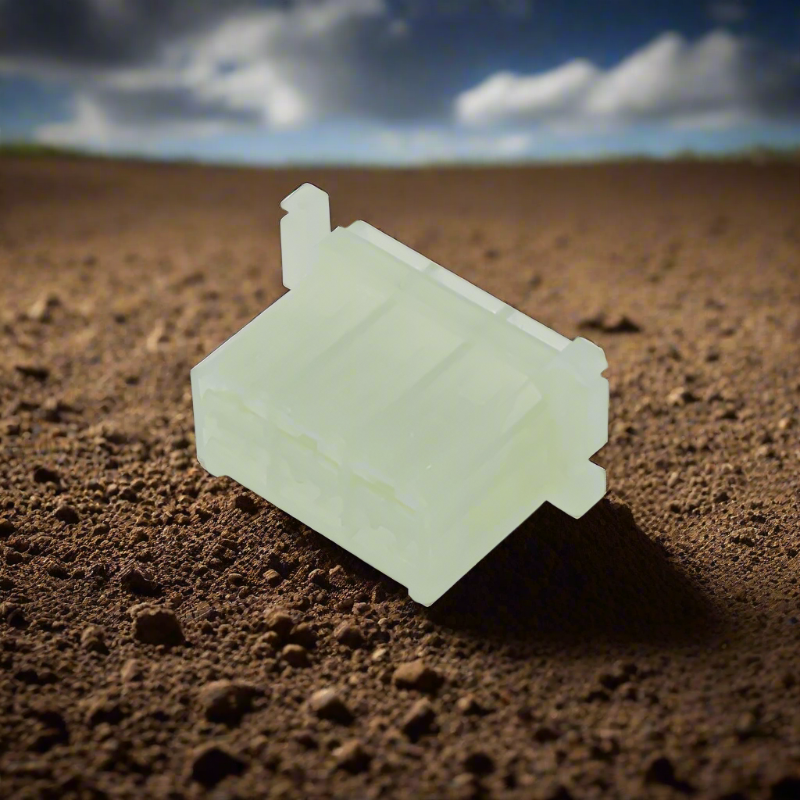

H3555ET - Female terminal to suit male housing (AMP180907)

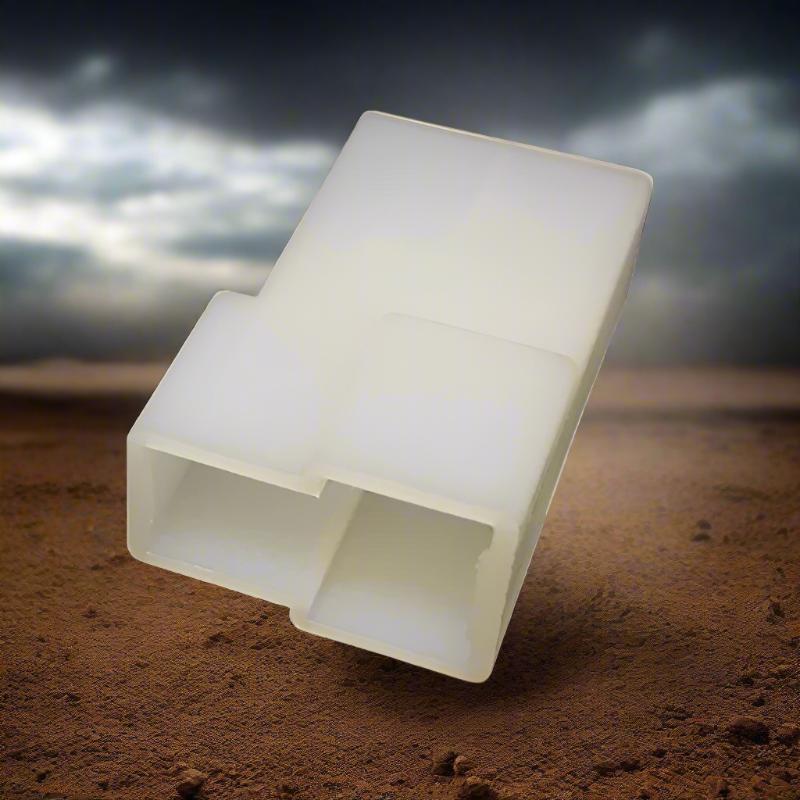

H2832ET - Male terminal to suit female housing (AMP180908)
