Multi-Block Housings MATE-N-LOK

Multi-Block Housings - MATE-N-LOK

MATE-N-LOK free hanging housings with a 5.08mm centreline for use in wire to wire applications. Fully polarized with integral locking devices.

Jay-Dee Part #: See Options.

Pack Qty: 1

Brand: Jay-Dee

Material: Housing: Natural color nylon UL94V-2

Voltage Rating: Up to 250V

Length: Male:13.45mm Female:15.49

Width: Male:21.88mm Female:23.88mm

Depth: Male:8.50mm Female:8.38mm

Terminals:

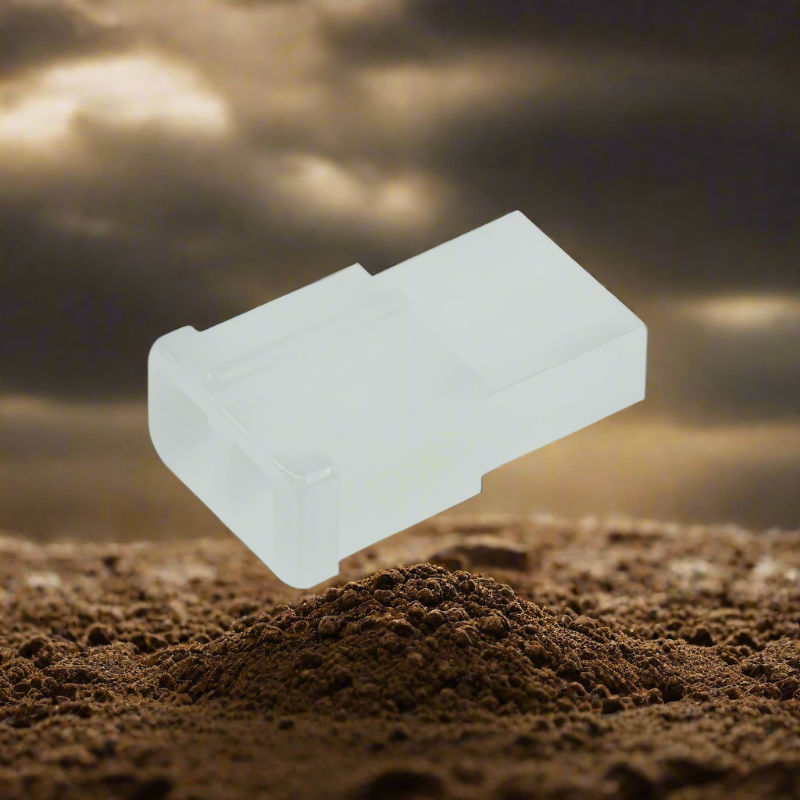

JD163304 - Female terminal to suit male housing (JD318)

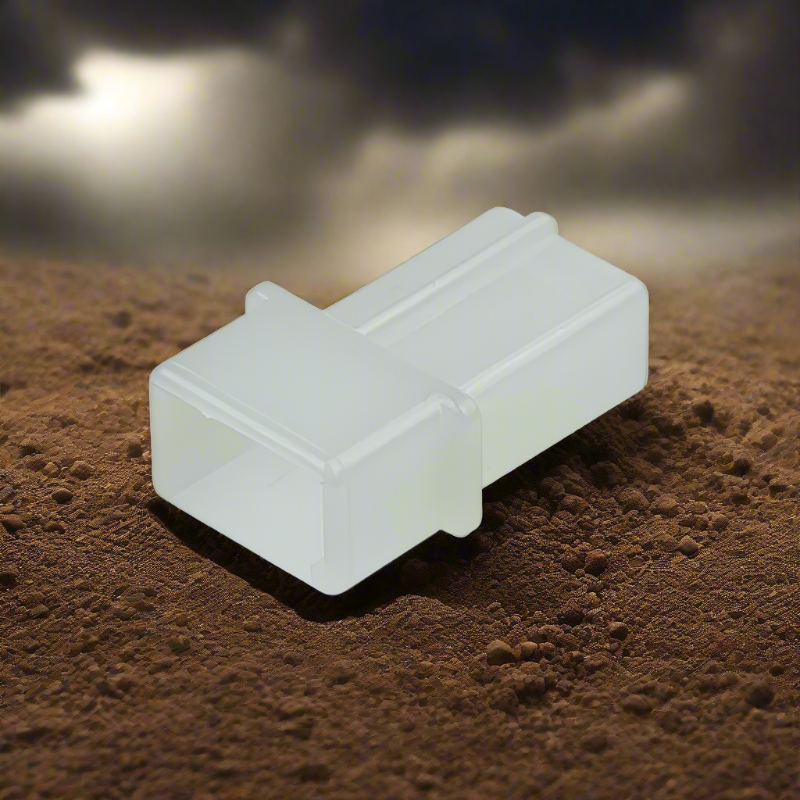

JD163305 - Male terminal to suit female housing (JD319)

Recommended Crimping Tools:

IWS-1424AB

JD61

JD62
