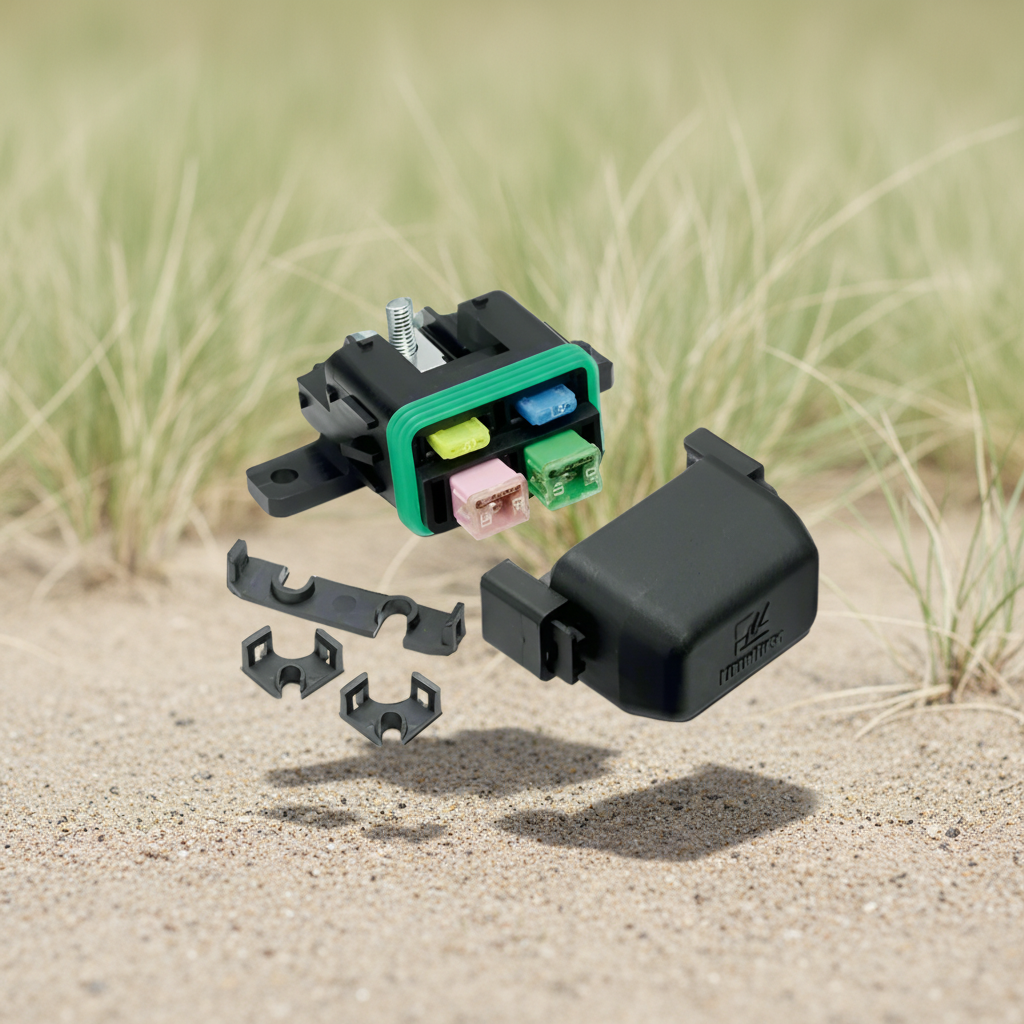

Mini Blade/J Case Fuse Box Kit- 4 Way Waterproof
  • Part #: SBFHK
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Mini Blade/J Case Fuse Box Kit- 4 Way Waterproof


Mini Blade/J Case Fuse Box Kit - 4 Way Waterproof

Max Voltage: 32 Vdc

Max Input Current: 2-60 A

Input Hardware: M6 x 1.0 Bolt & Washer (sold separately)

Input Torque: 6-8 Nm Mounting Torque: 6-8 Nm

Operating Temp: -40°C to +85°C

Ingress Protection: IP67

Material: Body & Cover: UL94-V0

Stud: Zinc-Plated Steel

Bus Bar: In-Plated Copper

Gasket: Silicone

Mating Terminals & Seals: JCASE®: Delphi Ducon 6.3 Sealed Male

      MINI®: Delphi Metri-Pack 280 Sealed Female

  • Seal: Silicon Rubber x 4 (2 x Large MP630S/2 x Small WPS-BLUE Included)
  • Cavity Plug: Silicon Rubber x 4 (2 x Large MP630CP/2 x Small WPCP Included)
  • Terminals: Tinned Brass x 4 (2 x Large MP630MT-DT/2 x Small MP280FT-12G Included)

Fuses not included.


Recommended Crimping Tools:
