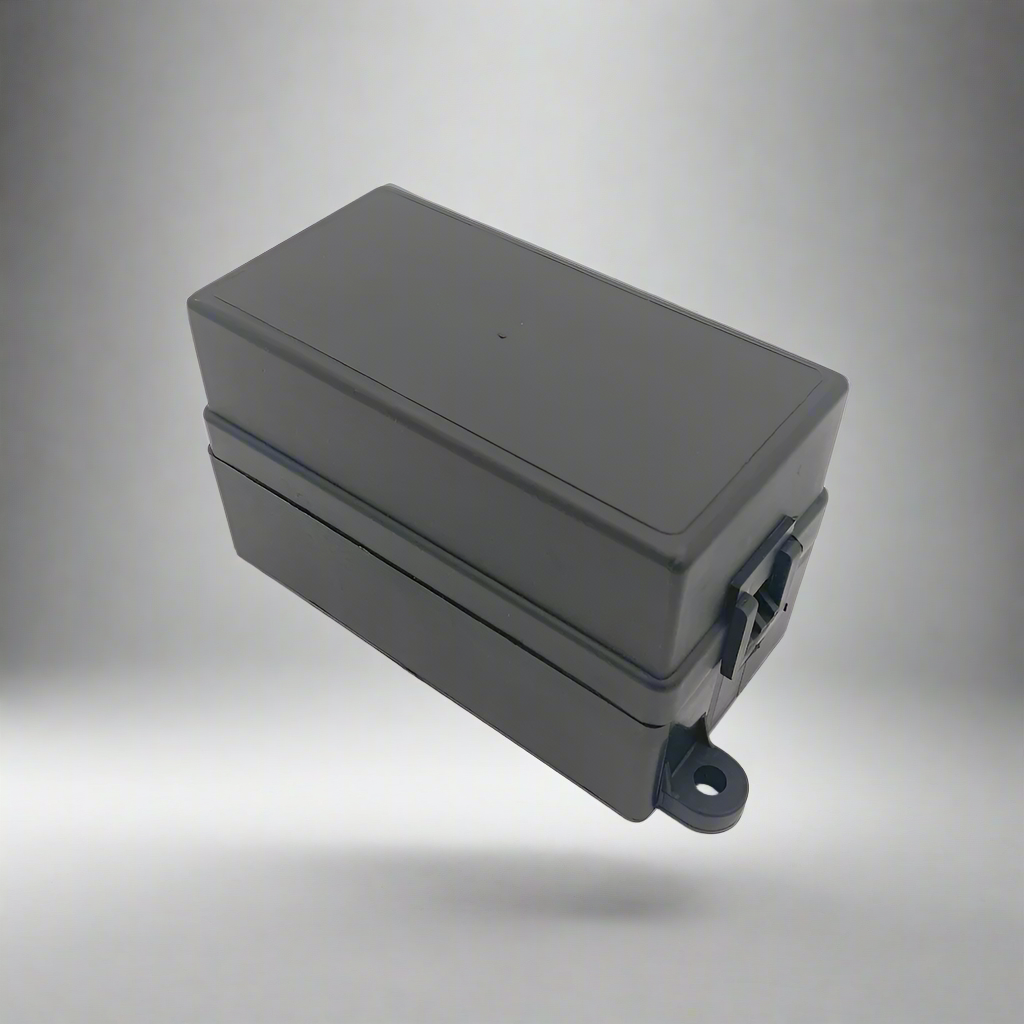

Mini Blade Fuse/Relay Box (RFB59)

RFB59

1

Jay-Dee

Black

Mini Blade / Relay Box

W132mm x D70mm x H82mm (Not including mounting tabs)

32V

-40°C to +125°C (Body only)

Black thermoplastic

Relay Terminals:
25 x 6.3mm Female with Lock Tang (1.5 - 2.5mm²)

Fuse Terminals:
12 x 2.8mm Female (1.5 - 2.5mm²)

2 x Mounting Tabs with 6mmØ (150mm Eye to Eye)

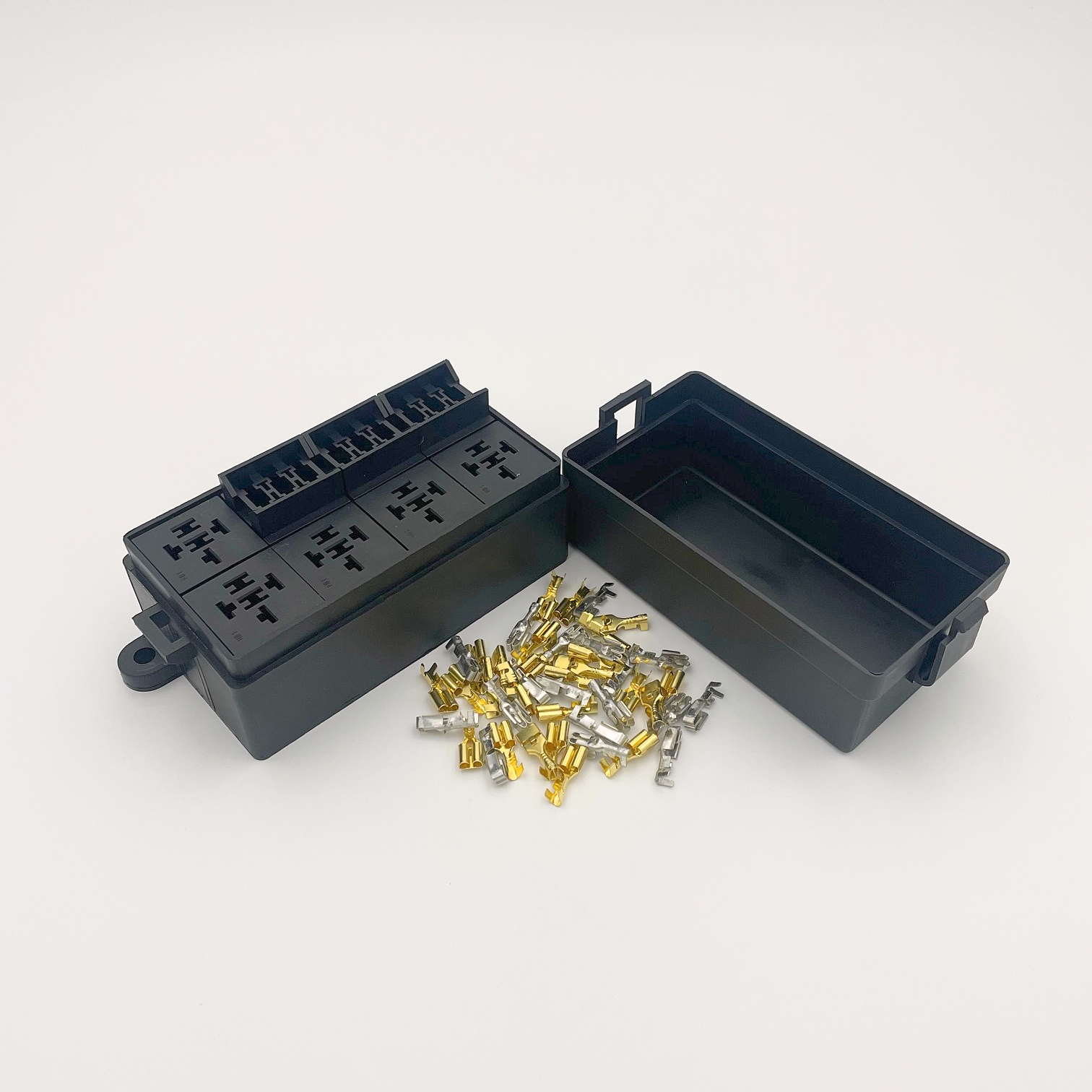

All terminals & fasteners included in kit.

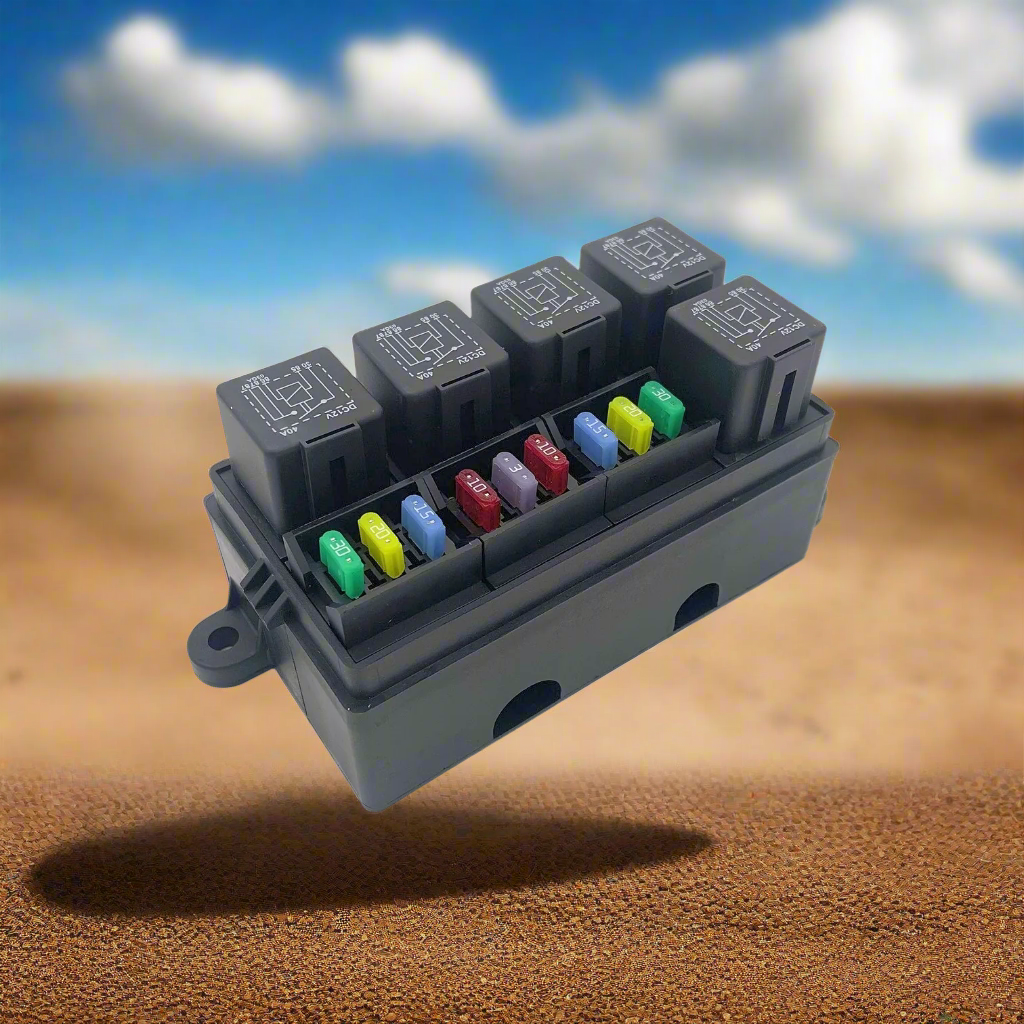

All fuses, circuit breakers and relays not included in kit (Shown for illustration purposes only)
