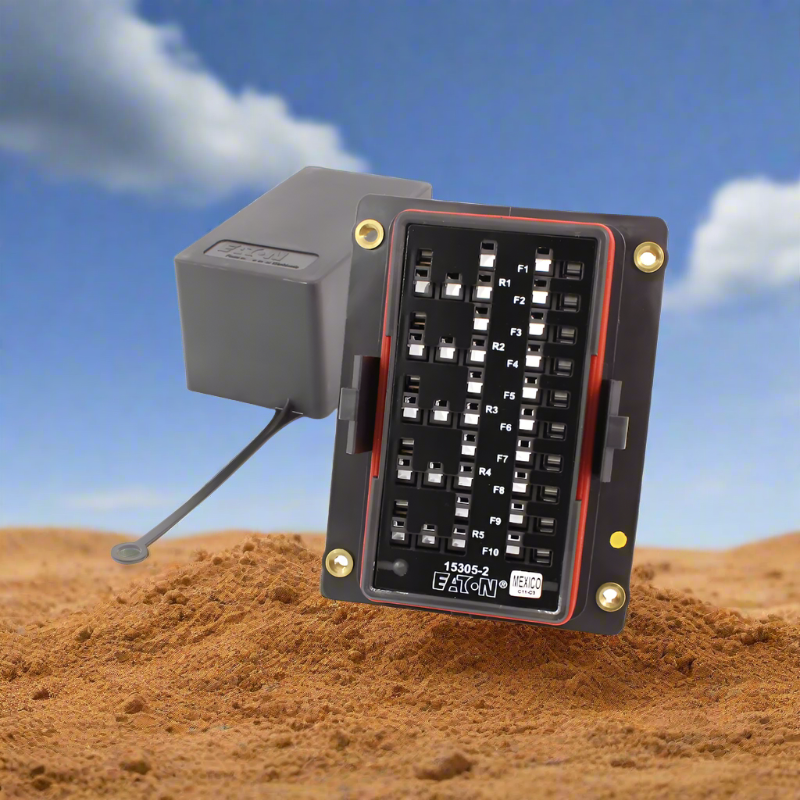

Bussmann RTMR provides efficient power distribution in a compact & weatherproof form. One bus accepts 10 x Mini Fuses/Mini bladed circuit breakers and the second bus accepts 5 x Micro ISO280 Relays.
All terminals & seals included in kit.
Brackets, fuses, circuit breakers and relays not included in kit
Jay-Dee Part #: RFB510K
Pack Qty: 1 x Base, 1 x Cover, 35 x Terminals, 35 x Seals, 5 x Cavity Plugs
Not Included: Brackets, fuses, circuit breakers, relays
Brand: Bussmann by Eaton
Components: Accepts Mini fuses, Mini bladed circuit breakers, Micro ISO280 Relays. All components must have 2.8mm blades on 8.1mm centerline spacing.
Mounting: Threaded inserts #10-32
Recommended Crimping Tools:
IWS-1424AB
IWS-1424BN
Block & Cover: Black thermoplastic, improved cover latch design featuring tether. Silicone seal.
Internal Bus: Tin-plated copper
Bus Input Studs: M6 stud
Bus Input Stud Rating: 80A max.
Output Terminal Rating: 30A max per terminal.
Ingress Protection Rating: Up to IP66
Wire Size: 22 - 12 AWG / 0.35mm² - 3mm²
Terminals x 35: MP280FT-TL suits Cable Size of 1.0 - 2.0mm²
Cable Seals x 35: WPS-GREY suits Cable Diameter of 3.49-2.81mm
Cavity Plugs x 5: Required to fill unused output cavities for IP Rating.
Temperature Rating: -40°C to +125°C (PDM only)
Accessories:
Mounting brackets sold separately:
Also sold separately:
Cable Type | Nominal Area | Outside Diameter | Amp Rating @ 30°C |
---|---|---|---|
8B&S Single Core | 7.71mm² | 5.5mm | 74A |
6B&S Single Core | 13.50mm² | 7.2mm | 103A |
4B&S Single Core | 20.26mm² | 8.3mm | 135A |
3B&S Single Core | 26.45mm² | 10.2mm | 168A |
2B&S Single Core | 32.07mm² | 11.3mm | 188A |
1B&S Single Core | 39.55mm² | 12.1mm | 210A |
0B&S Single Core | 49.00mm² | 12.7mm | 246A |
00B&S Single Core | 64.15mm² | 14.5mm | 292A |
000B&S Single Core | 83.19mm² | 16.4mm | 335A |
8B&S Twin Core | 7.71mm² | 7.1mm x 12.5mm | 59.2A |
6B&S Twin Core | 13.50mm² | 8.8mm x 16.0mm | 82.4A |
4B&S Twin Core | 20.26mm² | 10.3mm x 18.6mm | 108A |
2B&S Twin Core | 32.07mm² | 13.4mm x 24.6mm | 150.4A |
2B&S Welding | 35mm² | 13.1mm | 155A |
0B&S Welding | 50mm² | 14.9mm | 185A |
00B&S Welding | 70mm² | 17.0mm | 240A |
