Mini Blade Fuse Box Kit (Dual Bus 20 Way)
  • Part #: BFBN20K
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

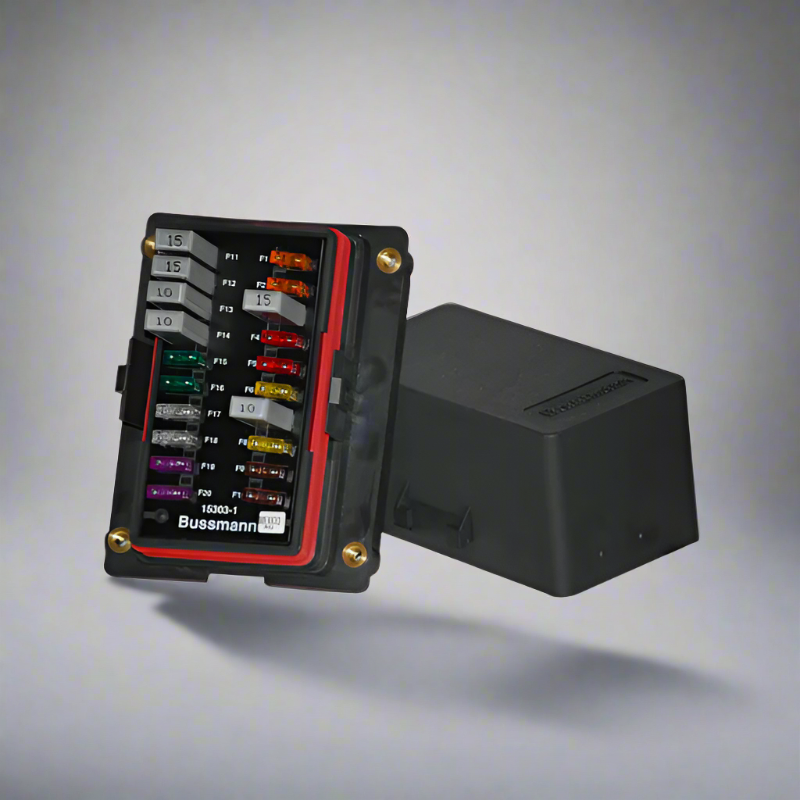

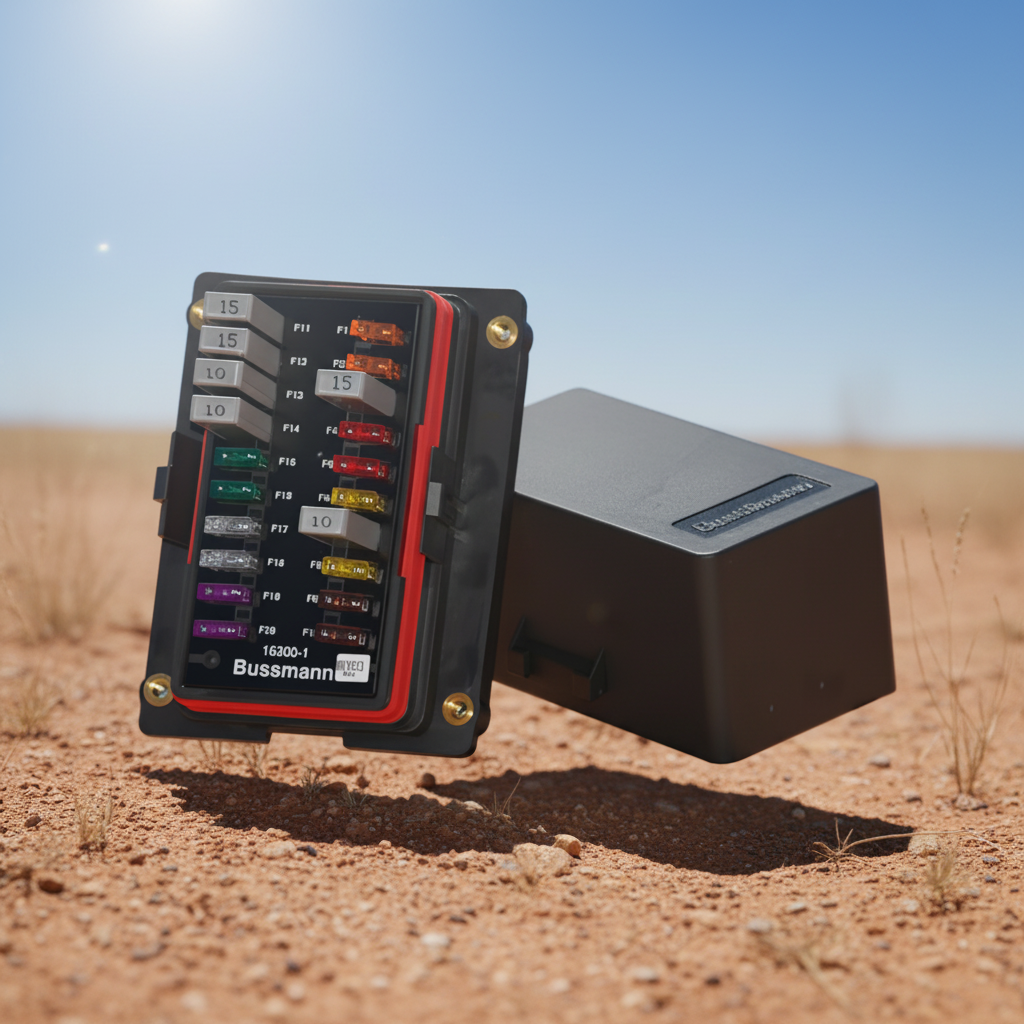

Mini Blade Fuse Box Kit (Dual Bus 20 Way)


Mini Blade Fuse Box Kit - (Dual Bus 20 Way)

Bussmann RTMR provides efficient power distribution in a compact & weatherproof form. Either bus accepts 10 x Mini Fuses/Mini bladed circuit breakers making a total of 20 fuse positions. Ideal for separating battery and ignition power sources.

All terminals & seals included in kit.

Brackets, fuses, circuit breakers not included in kit

Jay-Dee Part #: BFBN20K

Pack Qty: 1 x Base, 1 x Cover, 20 x Terminals, 20 x Seals, 5 x Cavity Plugs

Not Included: Brackets, fuses, circuit breakers

Brand: Bussmann by Eaton

Components: Accepts Mini fuses, Mini bladed circuit breakers. All components must have 2.8mm blades on 8.1mm centreline spacing.

Mounting: Threaded inserts #10-32

Block & Cover: Black thermoplastic, improved cover latch design featuring tether. Silicone seal.

Internal Bus: Tin-plated copper

Bus Input Studs: M6 stud

Bus Input Stud Rating: 80A max.

Output Terminal Rating: 30A max per terminal.

Ingress Protection Rating: Up to IP66

Wire Size: 22 - 12 AWG / 0.35mm²  - 3mm²

Terminals x 20: MP280FT-TL suits Cable Size of 1.0 - 2.0mm²

Cable Seals x 20: WPS-GREY suits Cable Diameter of 3.49-2.81mm

Cavity Plugs x 5: Required to fill unused output cavities for IP Rating.

Temperature Rating: -40°C to +125°C (PDM only)



Mounting brackets sold separately:


Also sold separately:


Recommended Crimping Tools:
