Midi Fuses

MIDI23

Amperage
21 items left

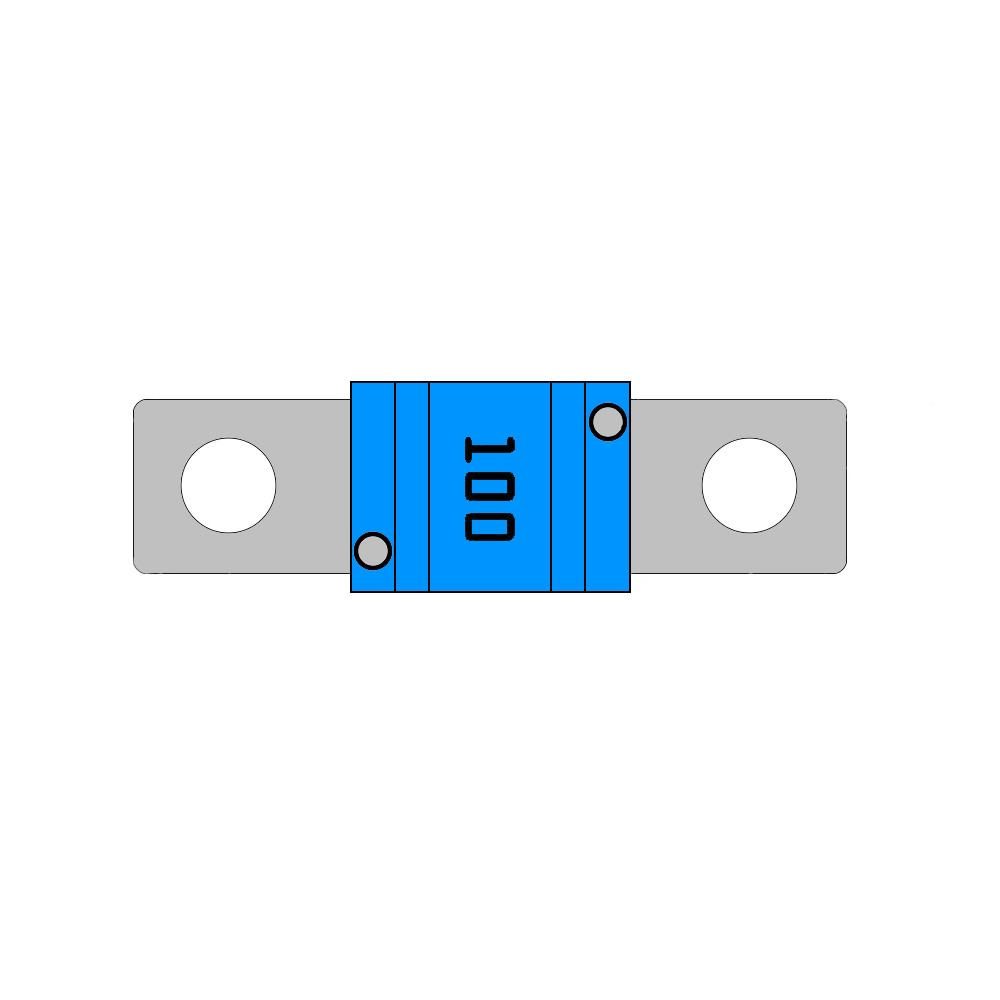

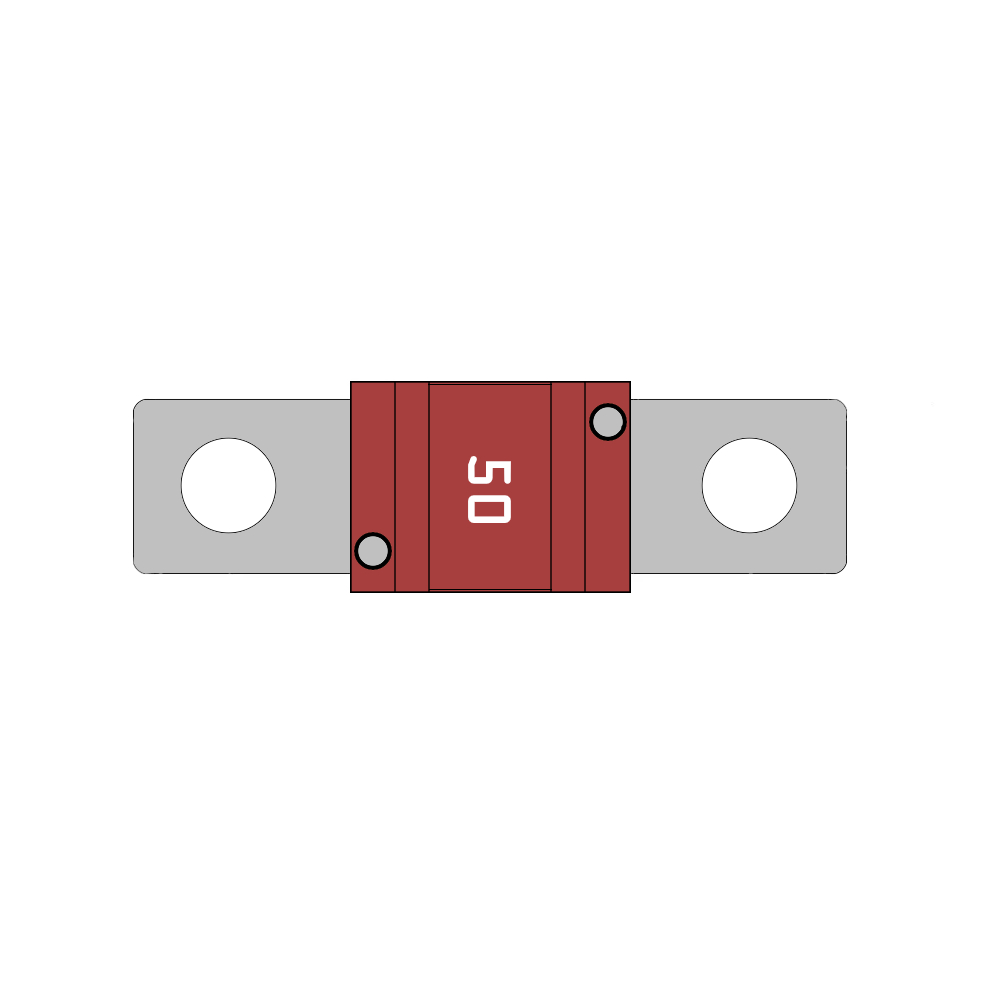

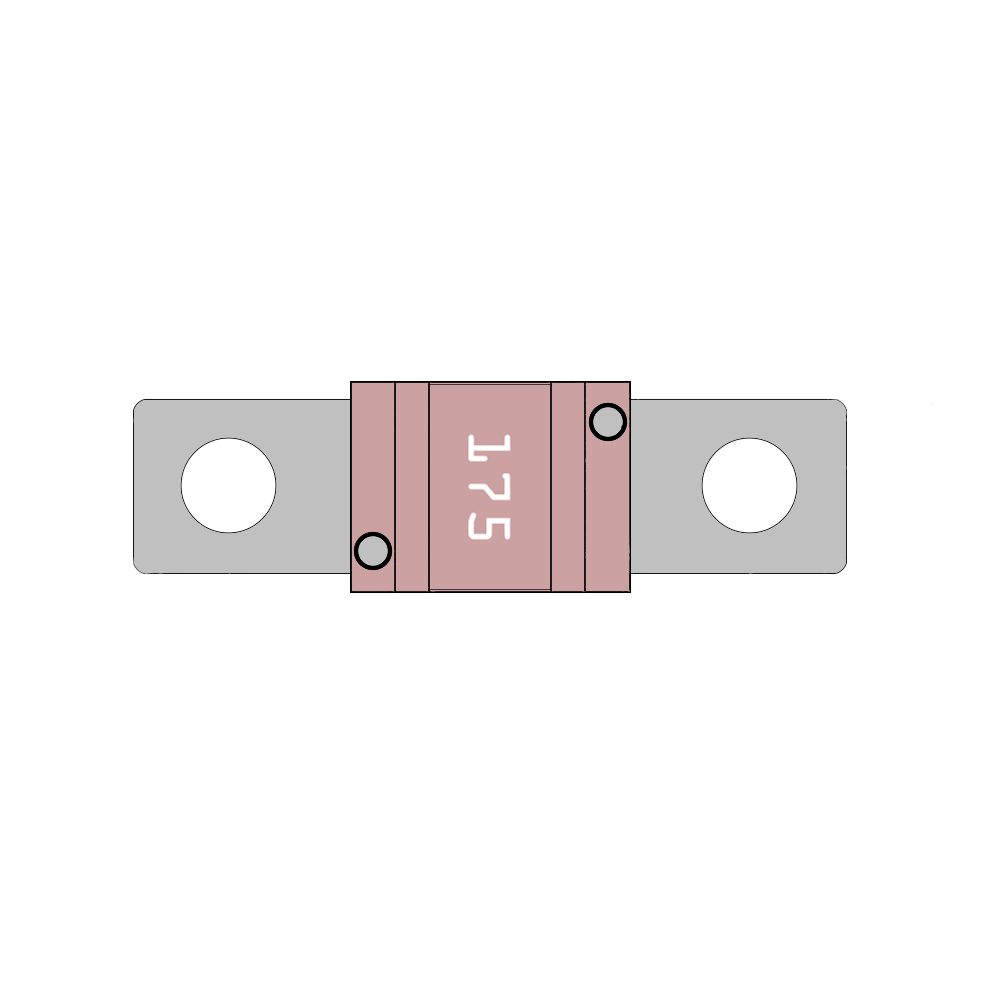

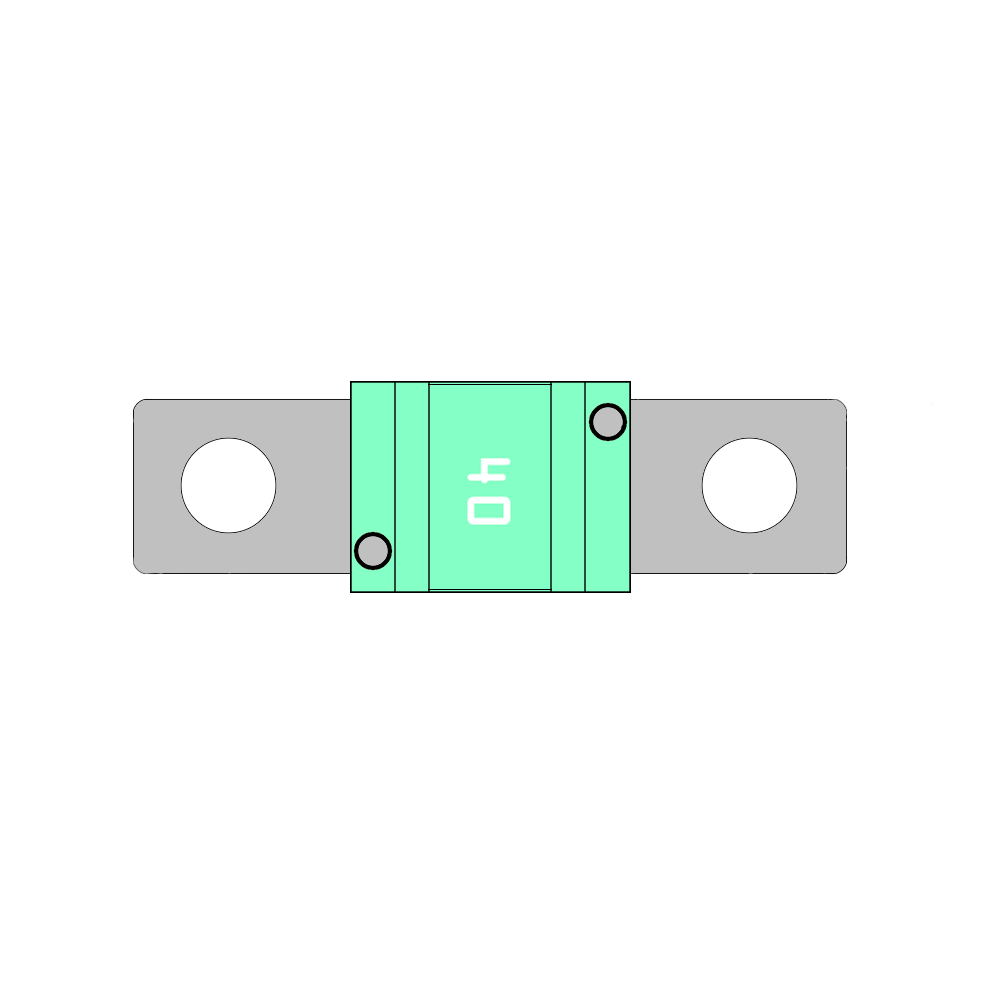

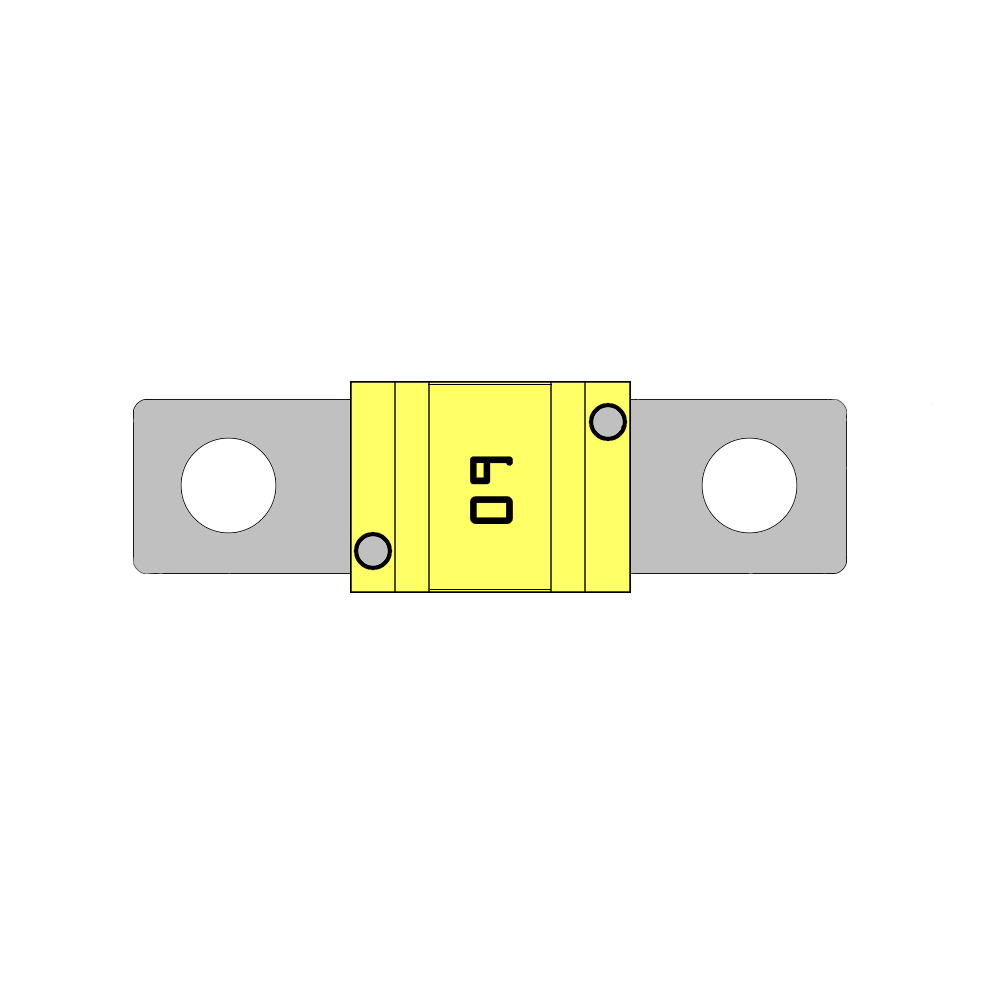

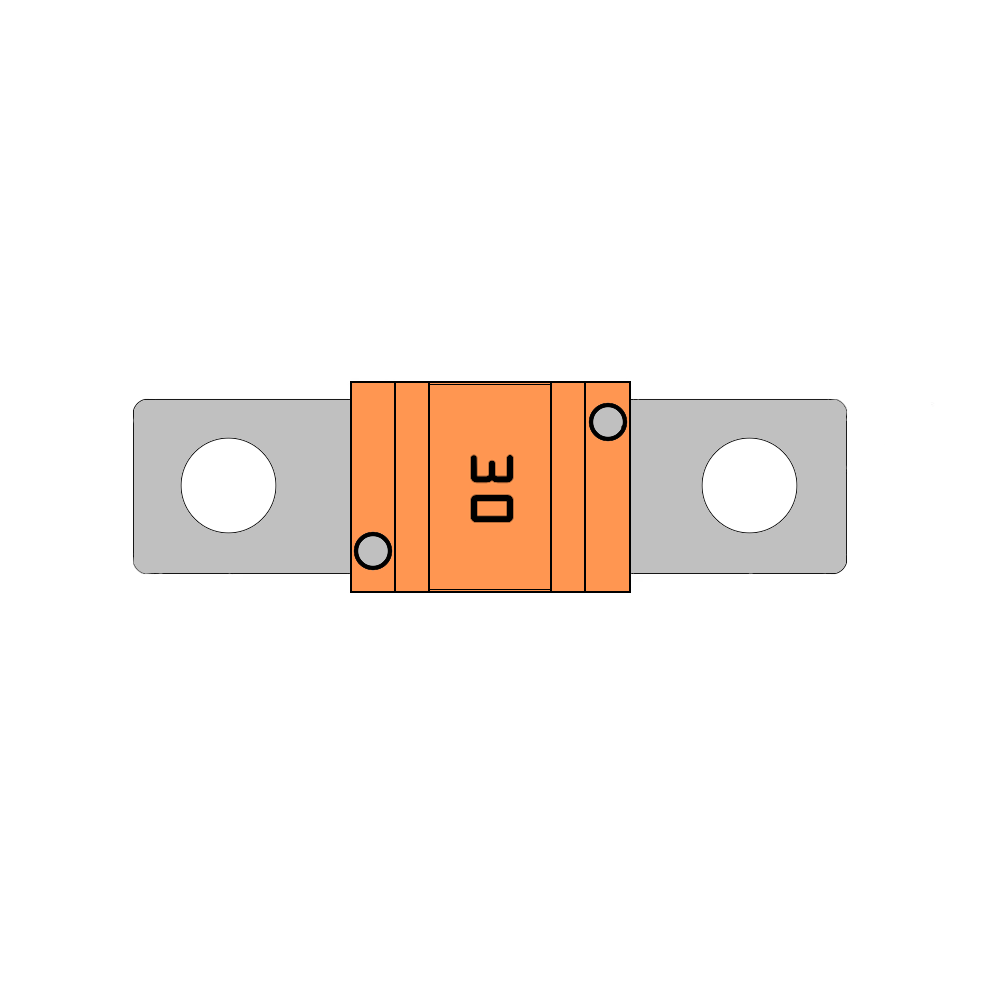

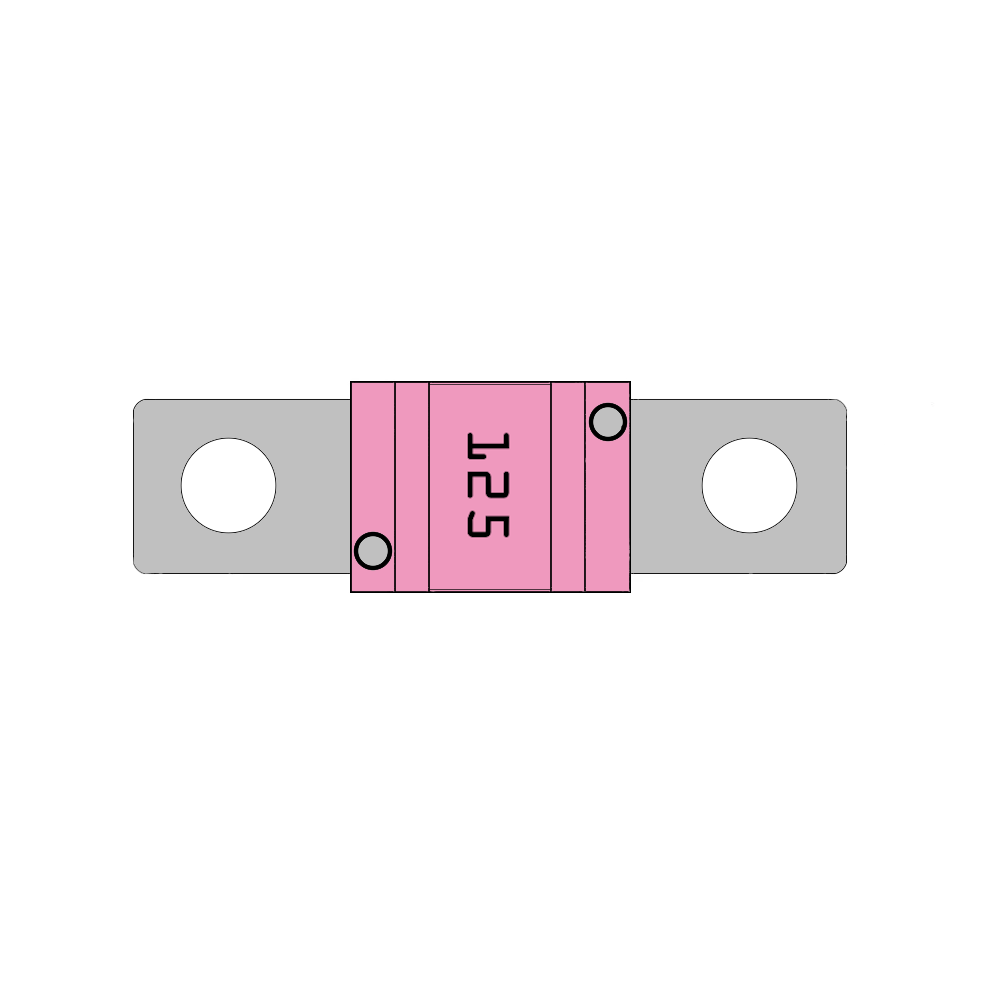

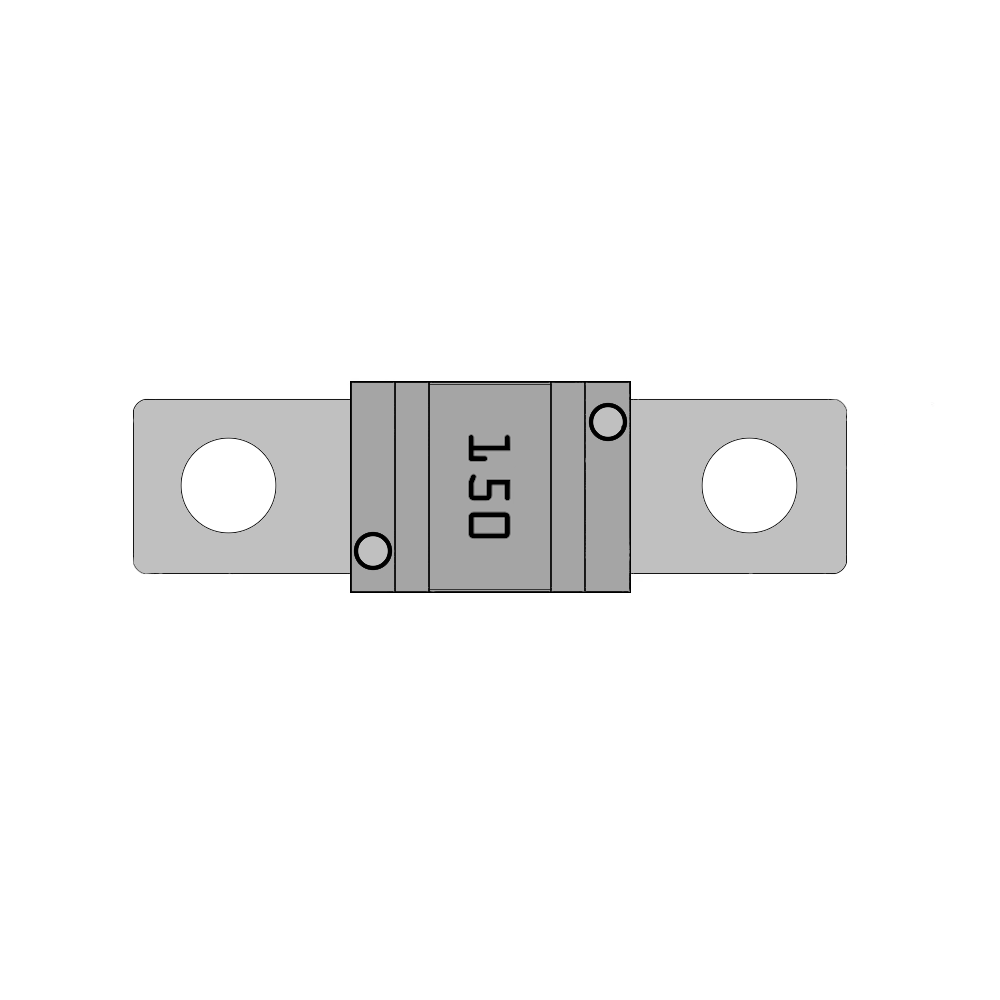

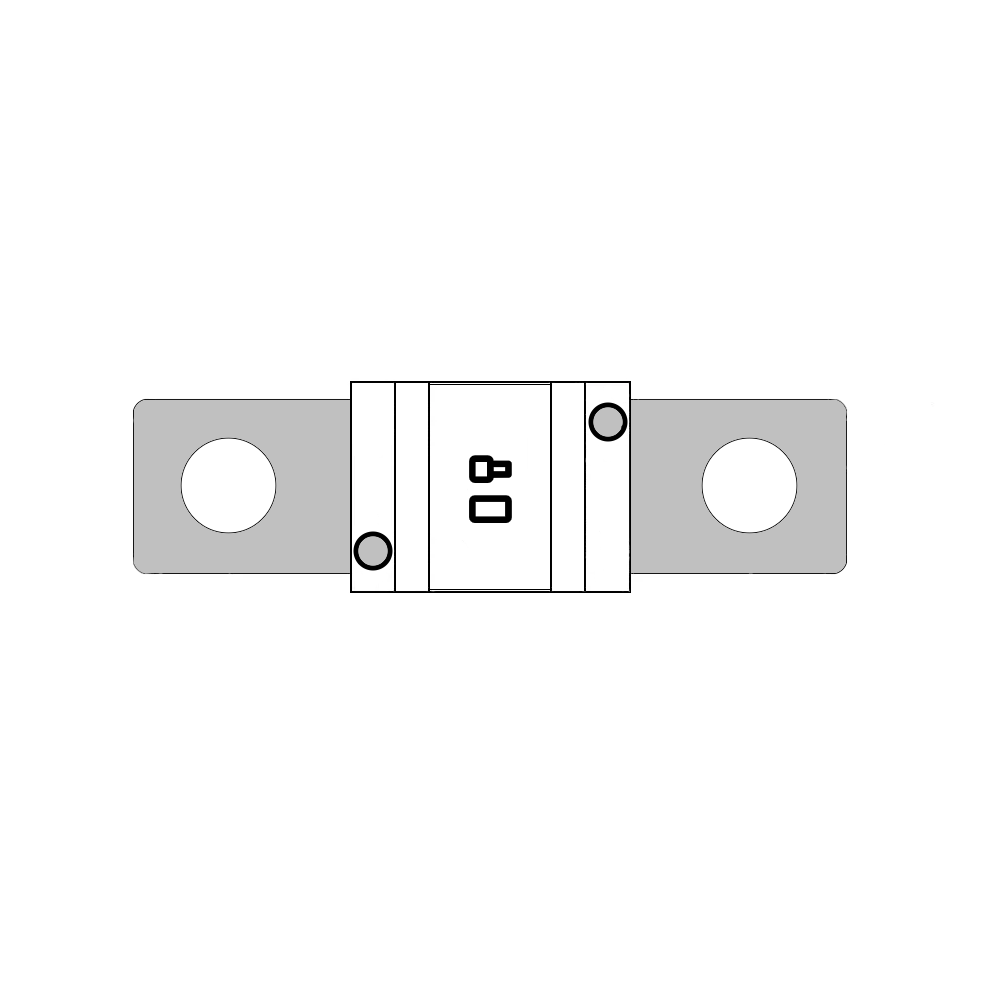

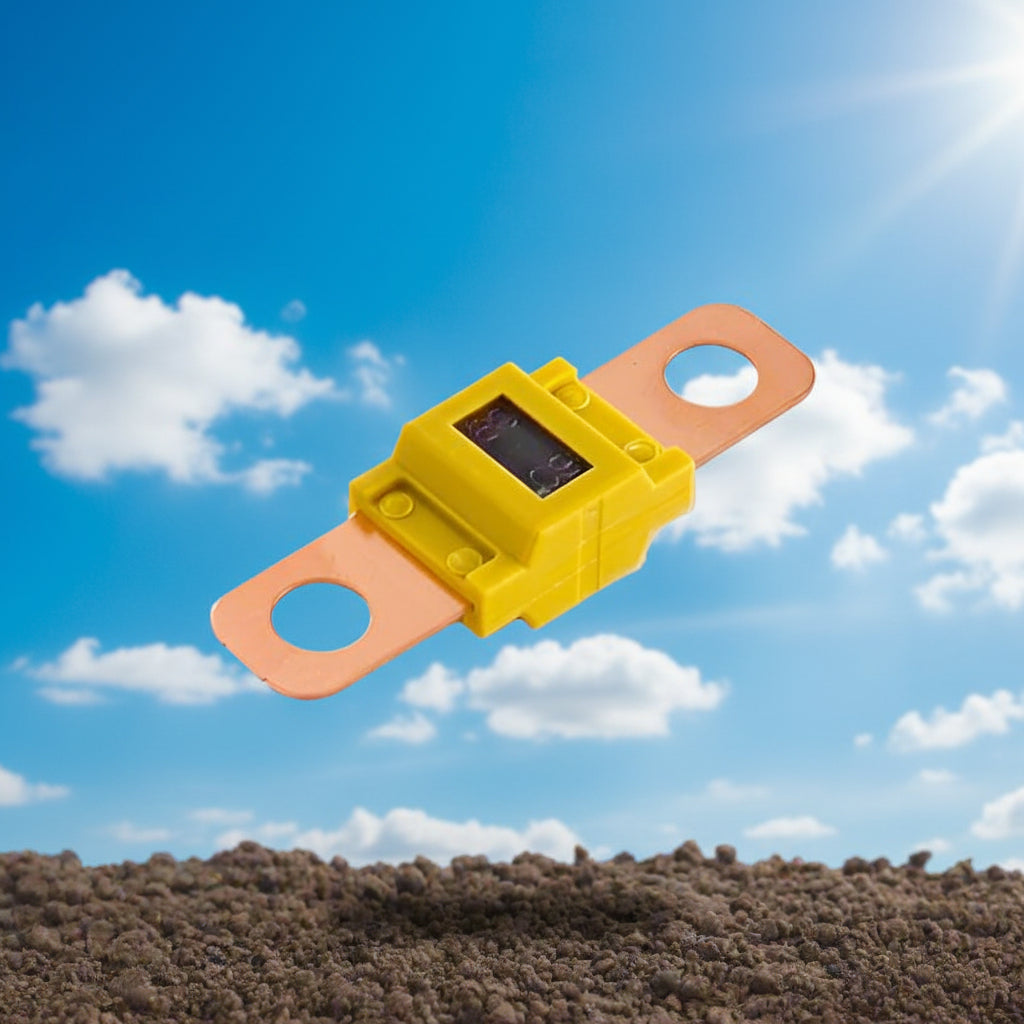

MIDI Fuse

This space saving fuse provides for high current wiring protection and provides time delay characteristics.


Amp Rating: 23A-175A

Interrupting Rating: 1000A @ 32 VDC

Voltage Rating: 32 VDC

Operating Temperature Range: -40˚C to + 125˚C

Housing Material: Thermoplastic Body

Terminals: 2 x Copper 5.5mmØ holes with 30mm Spacing

Dimensions: L41.0mm x W10.0mm x H8.3mm
