Part #: MP150MT-1
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

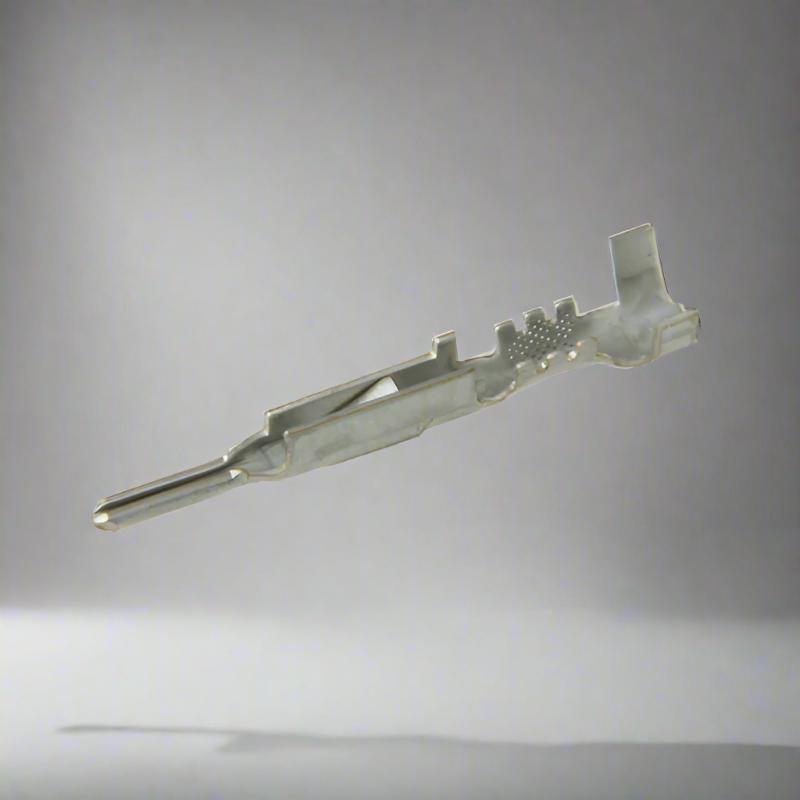

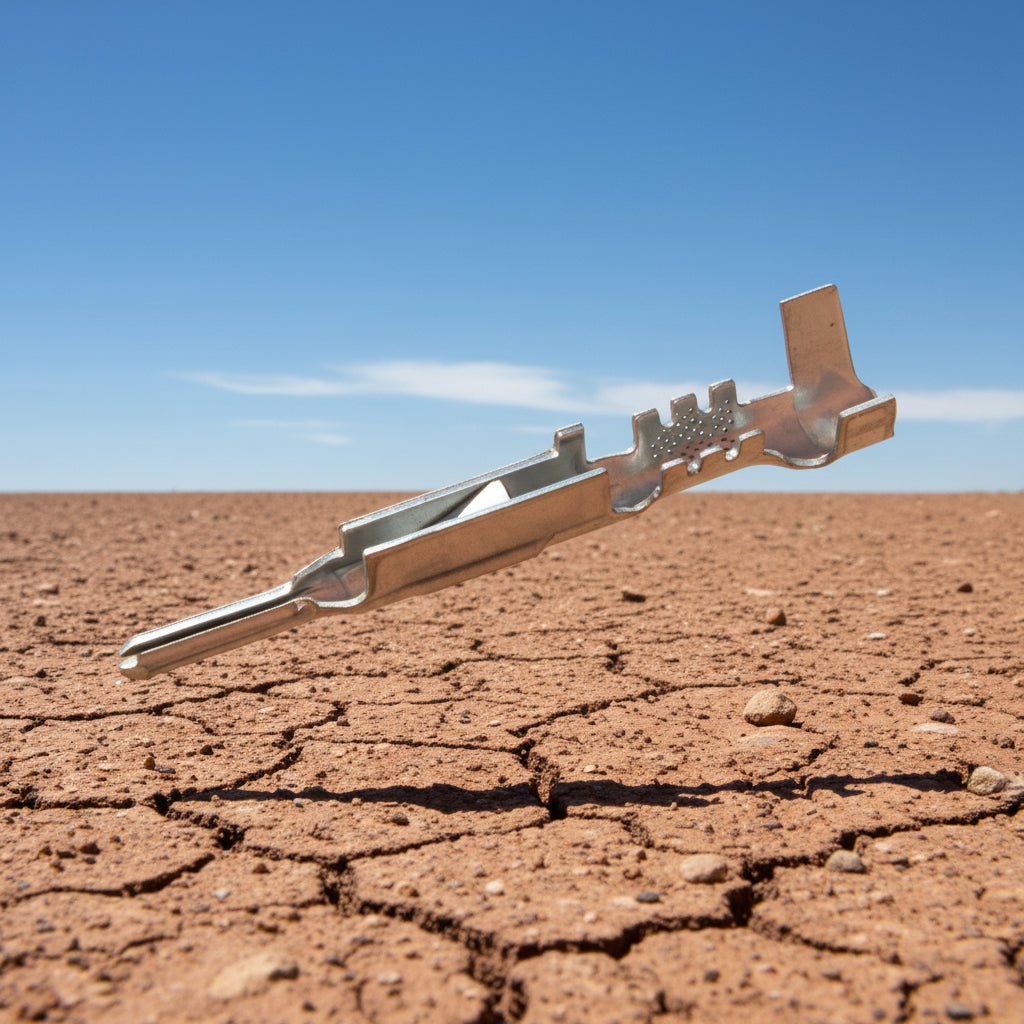

Metri-Pack 150 Male Terminal

Name: Metri-Pack 150 Male Terminal
Brand: Delphi
SKU: MP150MT-1
Price: 0.9 AUD
Availability: InStock

$0.90

Pack Qty: Multiples of 25

Scroll down page for more product details. . .

Description

Manufacturer: Delphi Connection Systems

Delphi #: 12045773

Gender: Male

Contact Plating: Tin

Series: 150

Cable Diameter/Insulation Range: 3.12mm to 2.03mm

Contact Material: Tin Brass

Current Rating: 14A

Lock Mate Feature: Nib

Locking Mechanism: Tang

Operating Temperature Range: - 40 C to + 125 C

Pack Size: 25

Recommended Crimping Tools:

IWS-1424AB

IWS-1424BN

Reviews

Cable Type	Nominal Area	Outside Diameter	Amp Rating @ 30°C
8B&S Single Core	7.71mm²	5.5mm	74A
6B&S Single Core	13.50mm²	7.2mm	103A
4B&S Single Core	20.26mm²	8.3mm	135A
3B&S Single Core	26.45mm²	10.2mm	168A
2B&S Single Core	32.07mm²	11.3mm	188A
1B&S Single Core	39.55mm²	12.1mm	210A
0B&S Single Core	49.00mm²	12.7mm	246A
00B&S Single Core	64.15mm²	14.5mm	292A
000B&S Single Core	83.19mm²	16.4mm	335A
8B&S Twin Core	7.71mm²	7.1mm x 12.5mm	59.2A
6B&S Twin Core	13.50mm²	8.8mm x 16.0mm	82.4A
4B&S Twin Core	20.26mm²	10.3mm x 18.6mm	108A
2B&S Twin Core	32.07mm²	13.4mm x 24.6mm	150.4A
2B&S Welding	35mm²	13.1mm	155A
0B&S Welding	50mm²	14.9mm	185A
00B&S Welding	70mm²	17.0mm	240A
