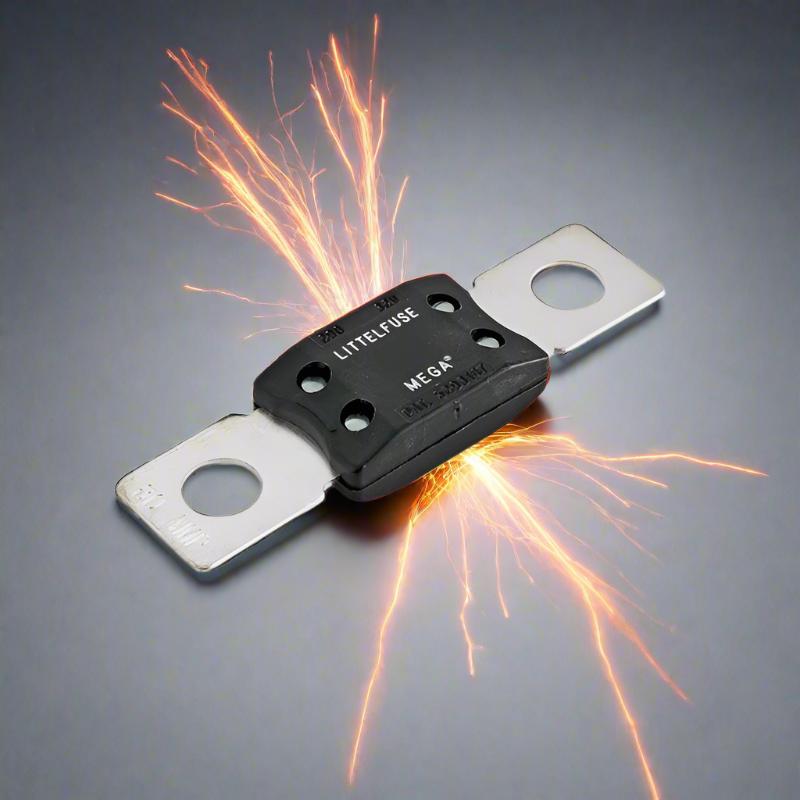

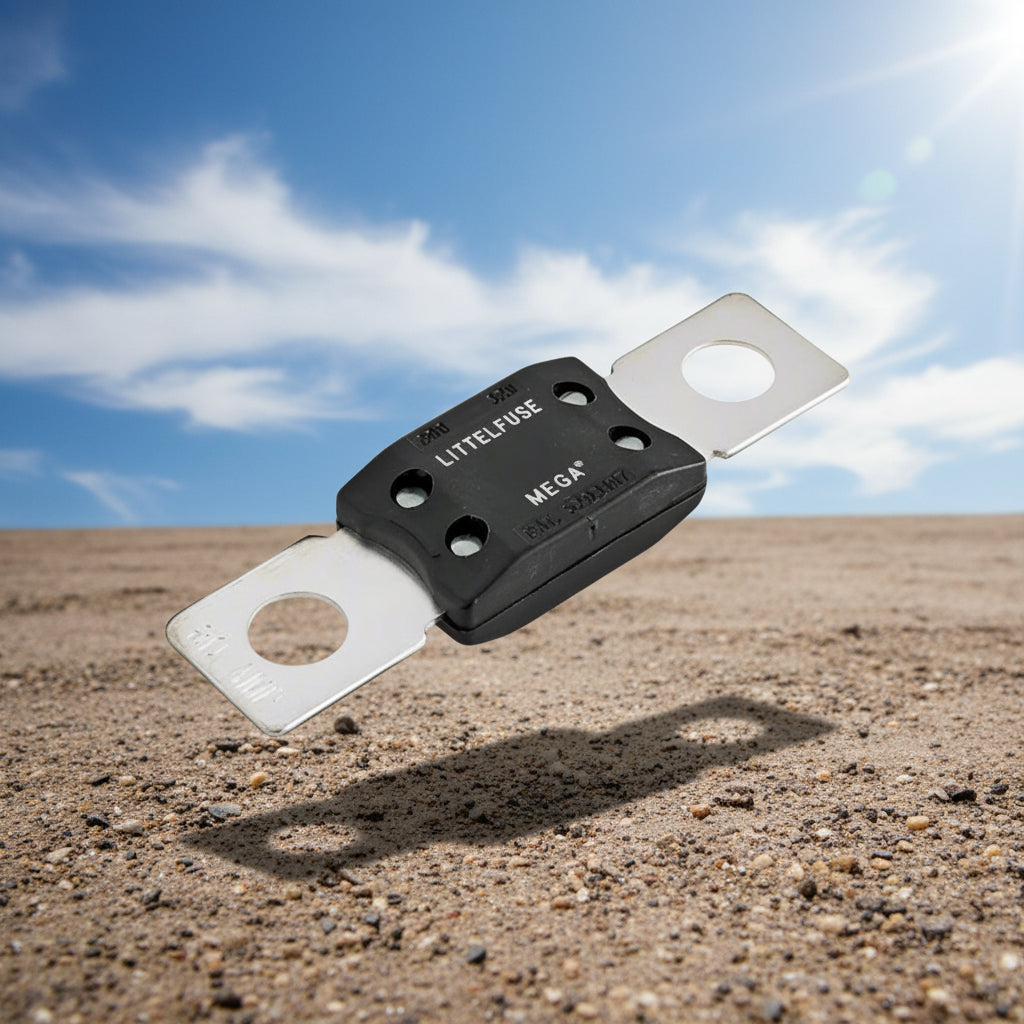

Designed for high current circuit protection up to 500A. Ideal for battery and alternator connectors and other heavy gauge cables requiring ultra-high current protection.
Amp Rating: 40-500A
Interrupting Rating: 2000A @ 32 VDC
Voltage Rating: 32 VDC
Operating Temperature Range: -40˚C to + 125˚C
Housing Material: PPA-GF33HS Thermoplastic Body
Terminals: 2 x Copper 8.64mmØ holes with 50.8mm Spacing
Dimensions: L68.58mm x W19.05mm x H10.72mm
