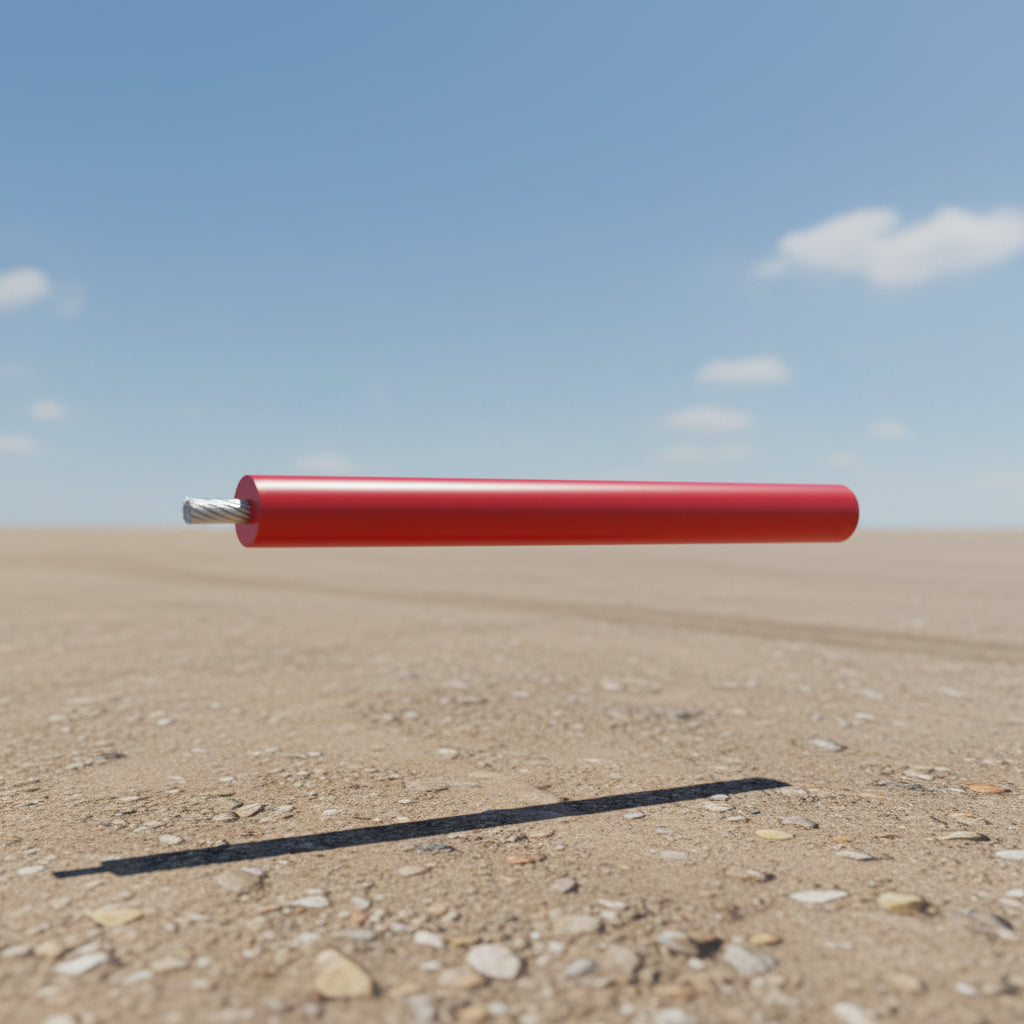

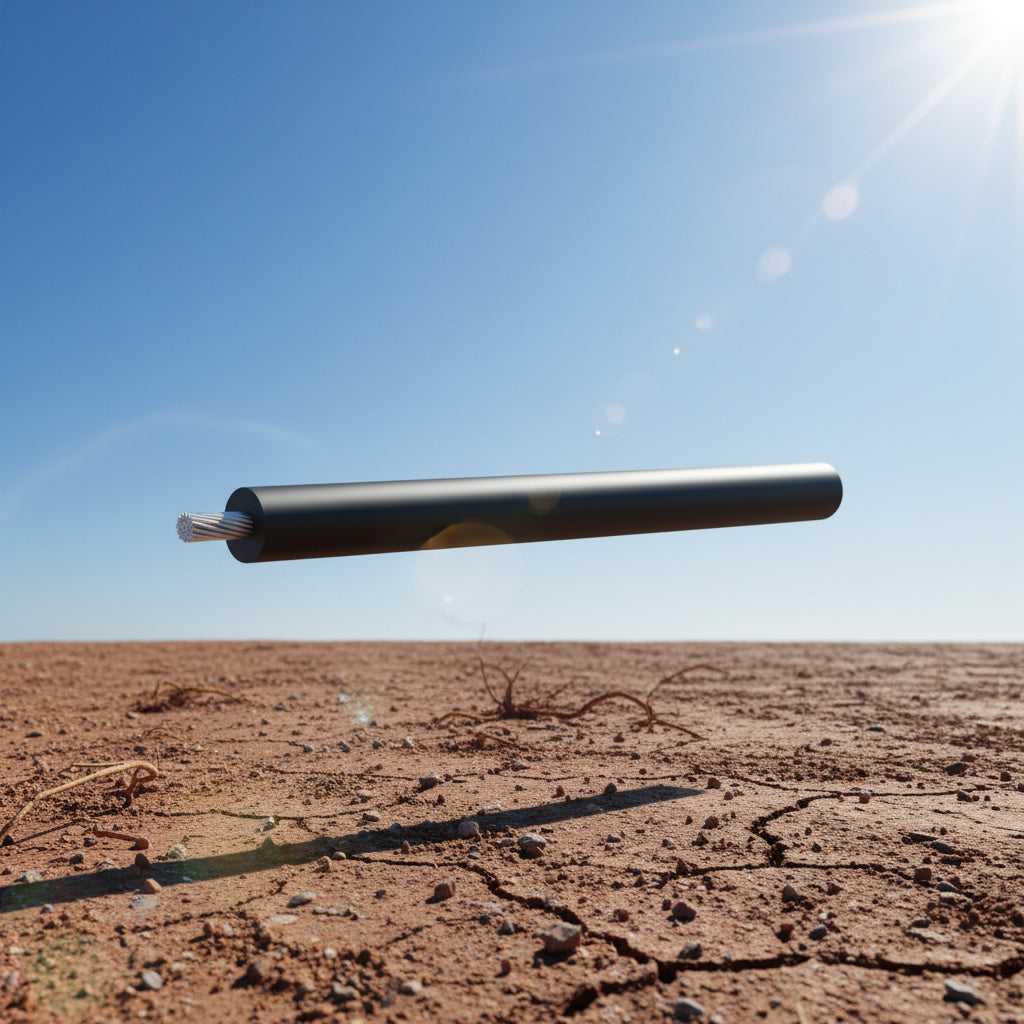

Marine 6mm Single Core Cable

Marine Single Core Cable - 6mm

Extra low voltage 6mm* single core tinned cable to suit pleasure craft and general purpose marine wiring.

 *6mm is an industry term that identifies cable size - not mm² or diameter

Jay-Dee Part Prefix #: CM10

Pack Qty: By the metre or 50m Reel

Brand: Tycab

Industry Equivalent Size: 6mm (Auto)

Gauge: 10 AWG

Nominal Area: 4.59mm²

Nominal O.D: 4.00mm

AMP Rating at 30°C: 48 (Derating factors apply - Refer to JASO D609)

Conductor: Tinned Copper Wire (TCW) TO AS/NZS 1125

Conductor Qty & Diameter: 57/.032mm

Insulation: RoHS Compliant V90 P.V.C. to AS/NZS 3808

Insulation Thickness:0.6mm

Electrical Resistance at 20°C: 4.15 ohm/km

Mass: 5.30 kg/100mmm

Applications:

Pleasure Craft, General Purpose Marine Wiring
