CM14-BK-50

Marine Single Core Cable - 4mm

$33.50

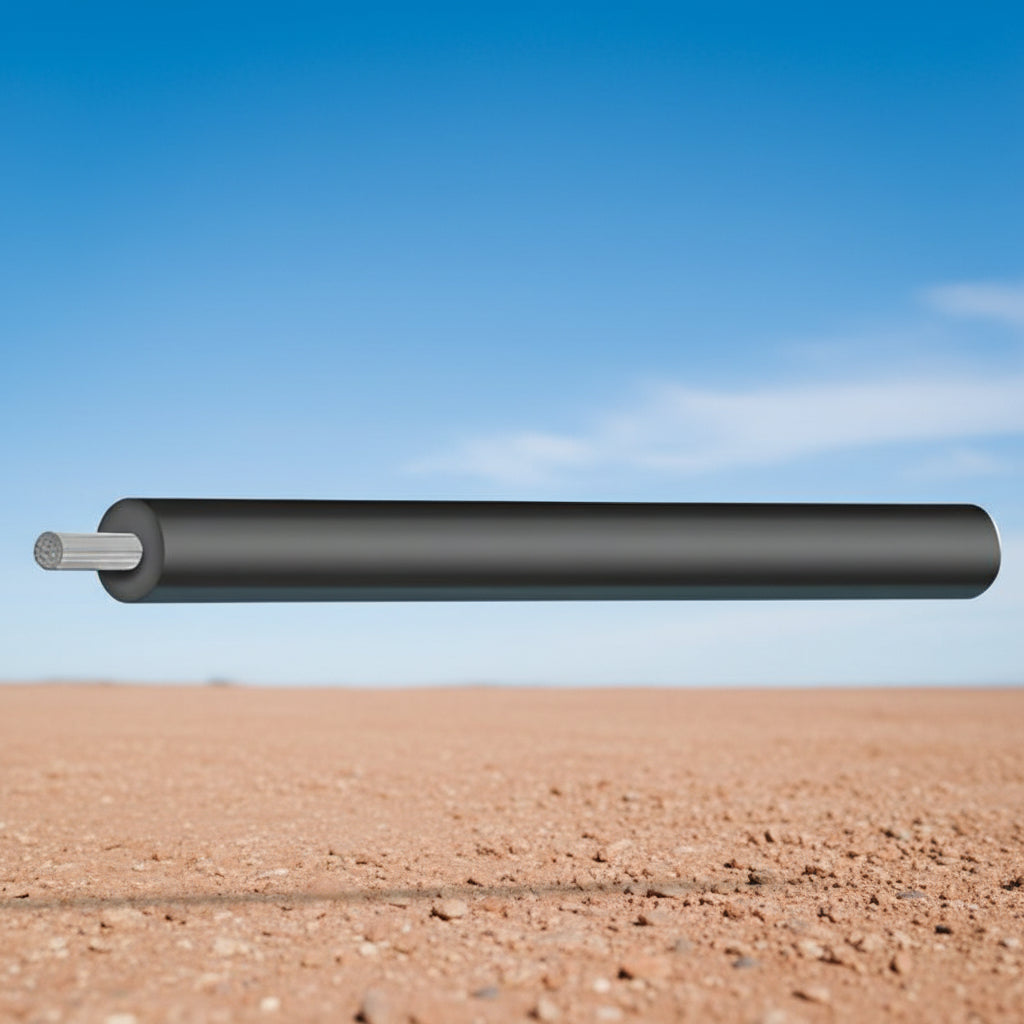

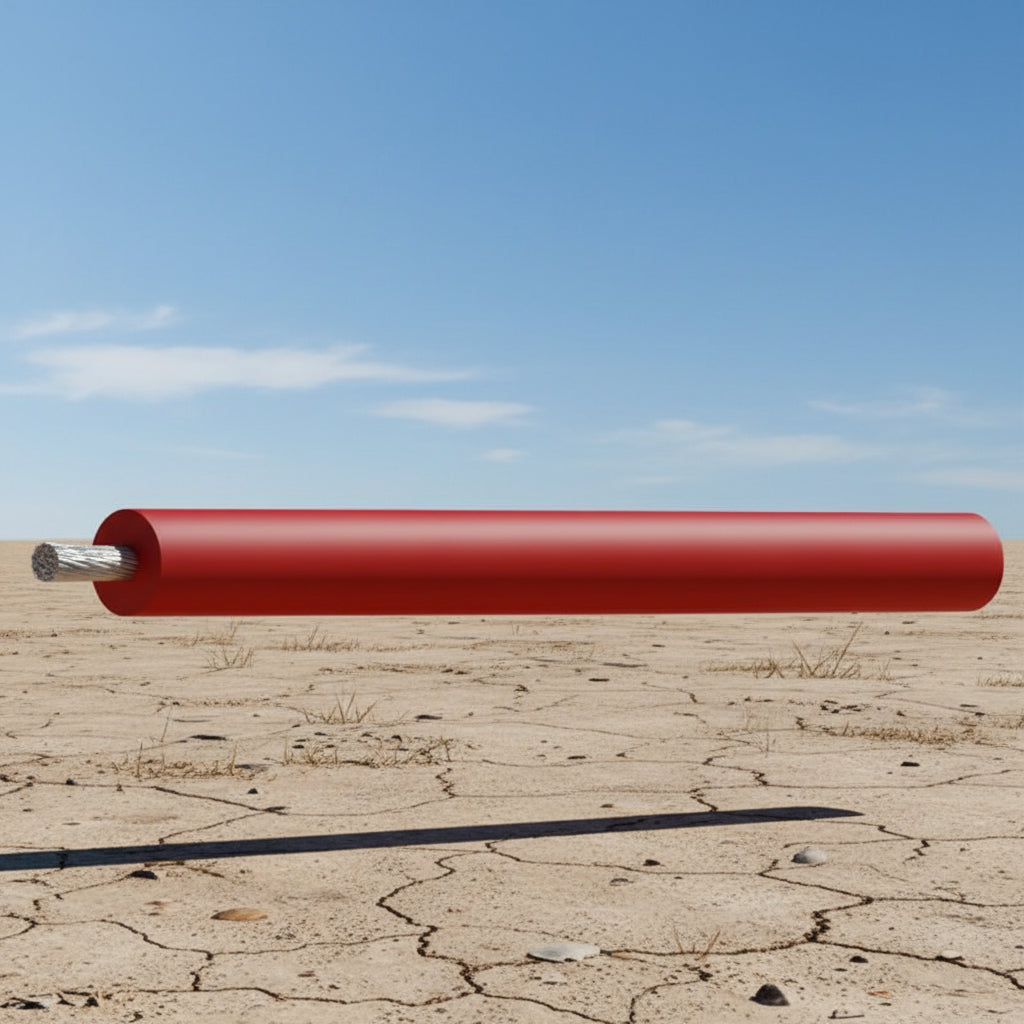

Marine Single Core Cable - 4mm

Extral low voltage 4mm* single core tinned cable to suit pleasure craft and general purpose marine wiring.

*4mm is an industry term that identifies cable size - not mm² or diameter

Product Info
Specifications
Applications

Jay-Dee Part Prefix #: CM14

Pack Qty: By the metre or 50m Reel

Brand: Tycab
Industry Equivalent Size: 4mm (Auto)

Gauge: 14 AWG

Nominal Area: 1.84mm²

Nominal O.D: 2.60mm

AMP Rating at 30°C: 28 (Derating factors apply - Refer to JASO D609)

Conductor: Tinned Copper Wire (TCW) TO AS/NZS 1125

Conductor Qty & Diameter: 23/.032mm

Insulation: RoHS Compliant V90 P.V.C. to AS/NZS 3808

Insulation Thickness:0.4mm

Electrical Resistance at 20°C: 10.2 ohm/km

Mass: 2.10 kg/100mmm
Applications:

Pleasure Craft, General Purpose Marine Wiring
