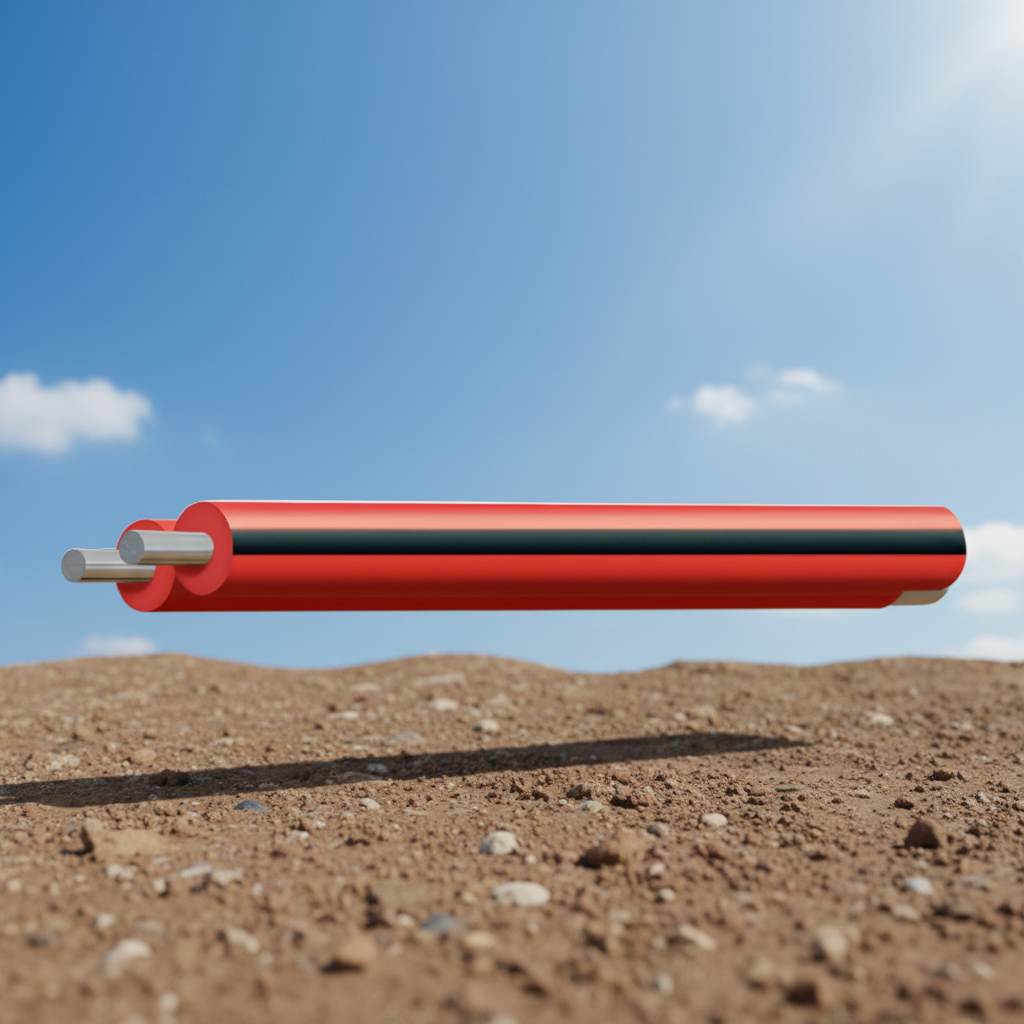

Marine 3mm Speaker Cable

CM16T-RDBK-1

Colour
Red/Black
Length
2 items left

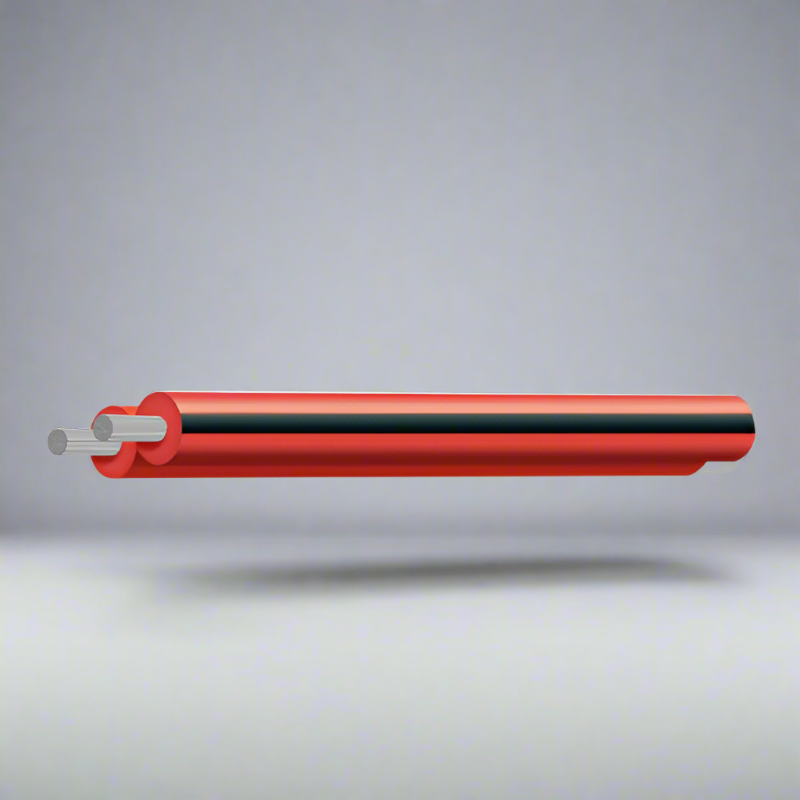

Marine Figure 8 Cable - 3mm

Extra low voltage 3mm* Figure 8 tinned cable to suit pleasure craft, hook up, speaker connections and general purpose marine wiring.

 *3mm is an industry term that identifies cable size - not mm² or diameter

Jay-Dee Part Prefix #: CM16T

Pack Qty: By the metre or 50m Reel

Brand: Tycab

Industry Equivalent Size: 3mm (Auto)

Gauge: 16 AWG

Nominal Area: 1.13mm²

Nominal O.D: 2.60mm x 5.90

AMP Rating at 30°C: 16 (Derating factors apply - Refer to JASO D609)

Conductor: Tinned Copper Wire (TCW) TO AS/NZS 1125

Conductor Qty & Diameter: 14/.032mm

Insulation: RoHS Compliant V90 P.V.C. to AS/NZS 3808

Insulation Thickness:0.6mm

Electrical Resistance at 20°C: 16.70 ohm/km

Mass: 3.20 kg/100mmm

Applications:

Pleasure craft, hook up, speaker connections and general purpose marine wiring
