Part #: GMMAPS3K
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

MAP Sensor Connector Kit - GM

Name: MAP Sensor Connector Kit - GM
Brand: KinKong
SKU: GMMAPS3K
Price: 12.0 AUD
Availability: InStock

$12.00

Description

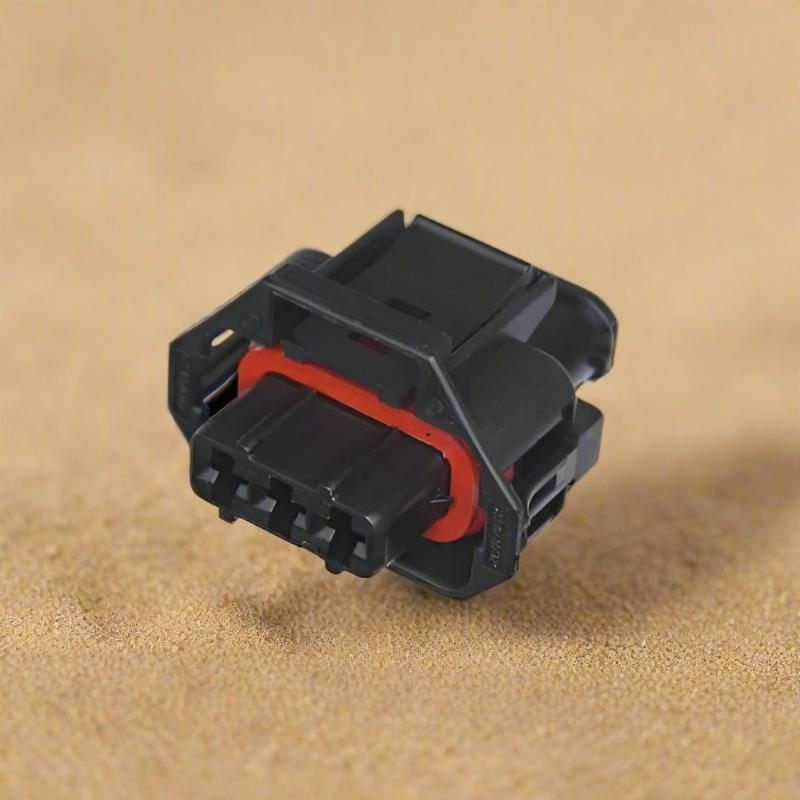

Black 3 way sealed female connector kit complete with terminals and seals suits GM LS3/LS7 MAP Sensors.

Jay-Dee Part #: GMMAPS3K

Pack Qty: 1 (1 x Connector, 3 x Terminals, 3 x Seals)

Brand: Jay-Dee

Material: Housing:PBT+G,PA66+GF;Terminal:Copper Alloy, Brass, Phosphor Bronze

Operating Temperature range -40℃~120℃

Length: 30.50mm

Width: 30.20mm

Height: 20.10mm

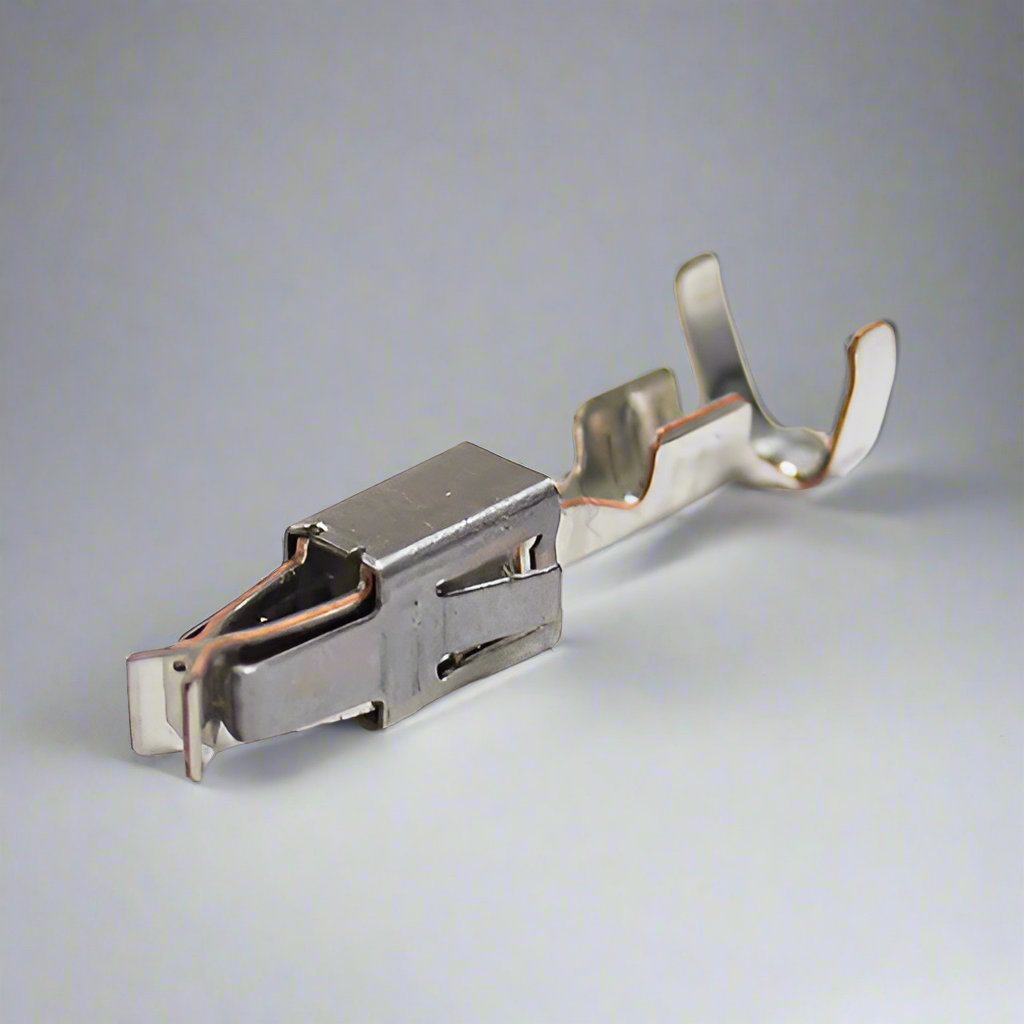

Spare Terminals: F1.1HD

Spare Seals: MP150S

Applications:

GM LS3 & LS7 MAP Sensors

GM Alloytec V6 Cam sensors

Recommended Crimping Tools:

IWS-1424AB

Reviews

Cable Type	Nominal Area	Outside Diameter	Amp Rating @ 30°C
8B&S Single Core	7.71mm²	5.5mm	74A
6B&S Single Core	13.50mm²	7.2mm	103A
4B&S Single Core	20.26mm²	8.3mm	135A
3B&S Single Core	26.45mm²	10.2mm	168A
2B&S Single Core	32.07mm²	11.3mm	188A
1B&S Single Core	39.55mm²	12.1mm	210A
0B&S Single Core	49.00mm²	12.7mm	246A
00B&S Single Core	64.15mm²	14.5mm	292A
000B&S Single Core	83.19mm²	16.4mm	335A
8B&S Twin Core	7.71mm²	7.1mm x 12.5mm	59.2A
6B&S Twin Core	13.50mm²	8.8mm x 16.0mm	82.4A
4B&S Twin Core	20.26mm²	10.3mm x 18.6mm	108A
2B&S Twin Core	32.07mm²	13.4mm x 24.6mm	150.4A
2B&S Welding	35mm²	13.1mm	155A
0B&S Welding	50mm²	14.9mm	185A
00B&S Welding	70mm²	17.0mm	240A
