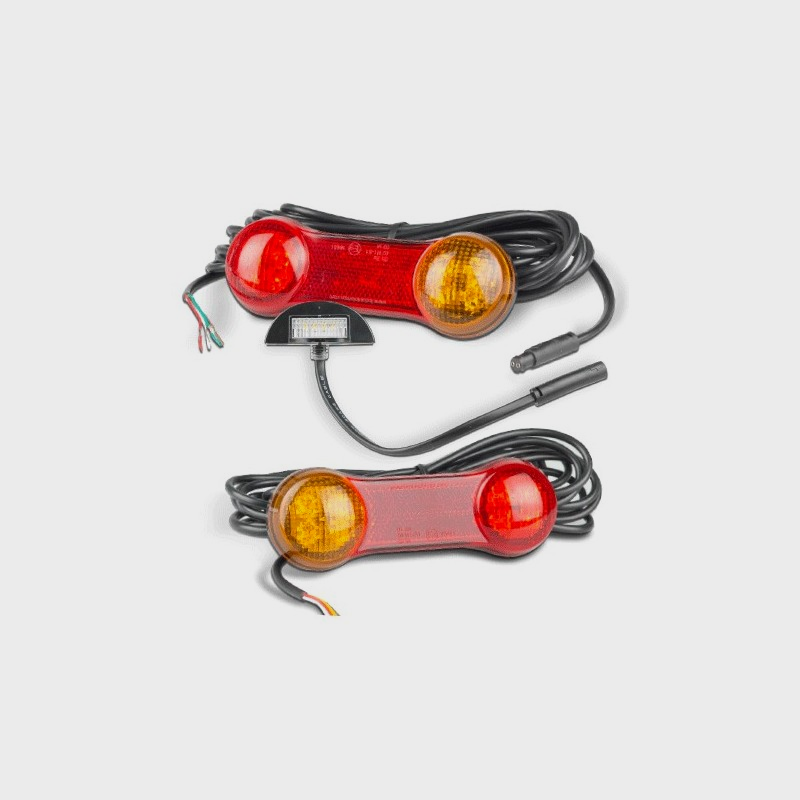

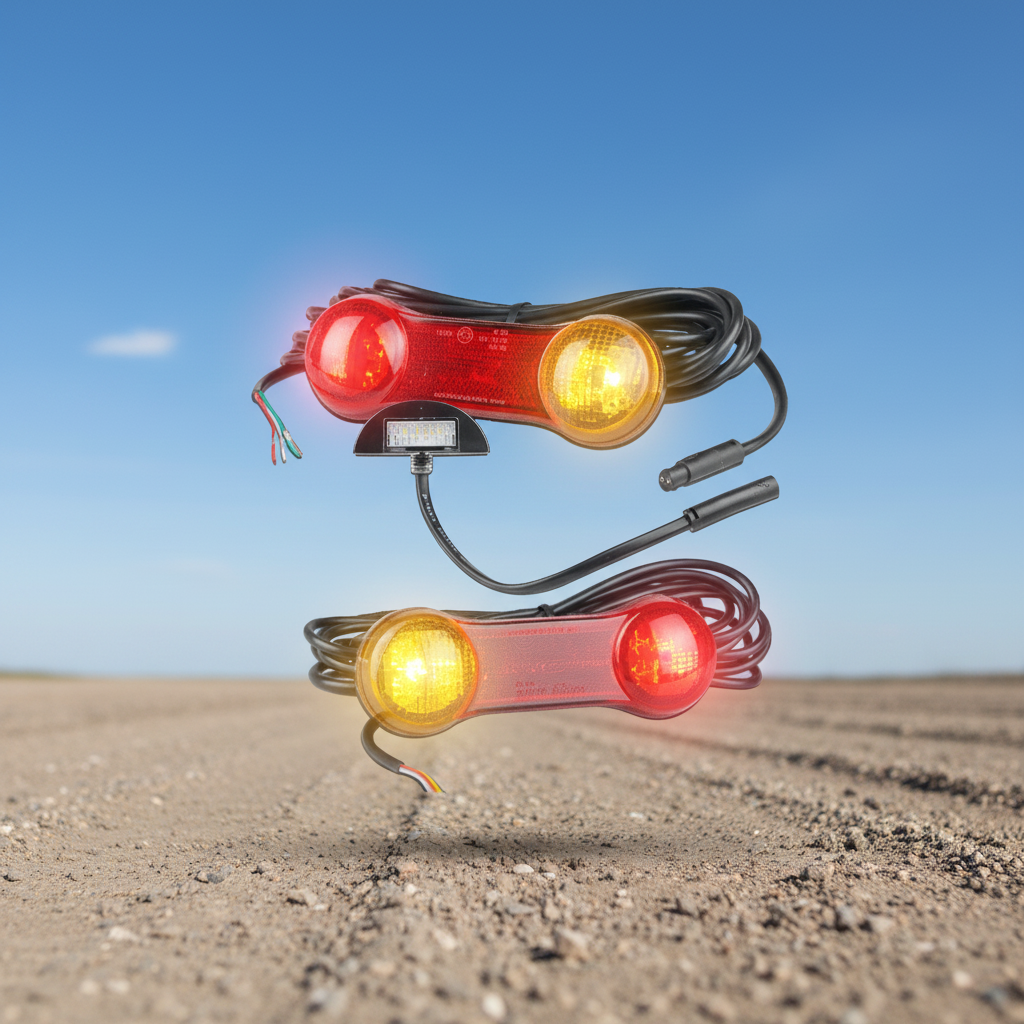

LED Autolamps DB Series Lamp & Cable Kit

LEDDB2LP1

2 x Stop/Tail/Indicator with Reflector & Licence Plate Lamp

LED Autolamps

Red/Amber/White

Stop/Tail/Indicator/Licence Boat Trailer Combination

L150mm x W50mm x H23mm

12V

IP67 100% Waterproof

High Quality 3M Tape for Fitting

Wire Colours:

Red - Stop

Brown - Tail

White - Earth

Yellow - LHS Indicator

Green - RHS Indicator Lamp


Fitting Instructions:

- Drill a 13mm hole for the wiring outlet plug

- Remove the protective film from the 3M Tape

- Push the cable and plug through the hole

- Line up the lamp and press firmly

- The lamp is held securely with high quality 3M Tape
