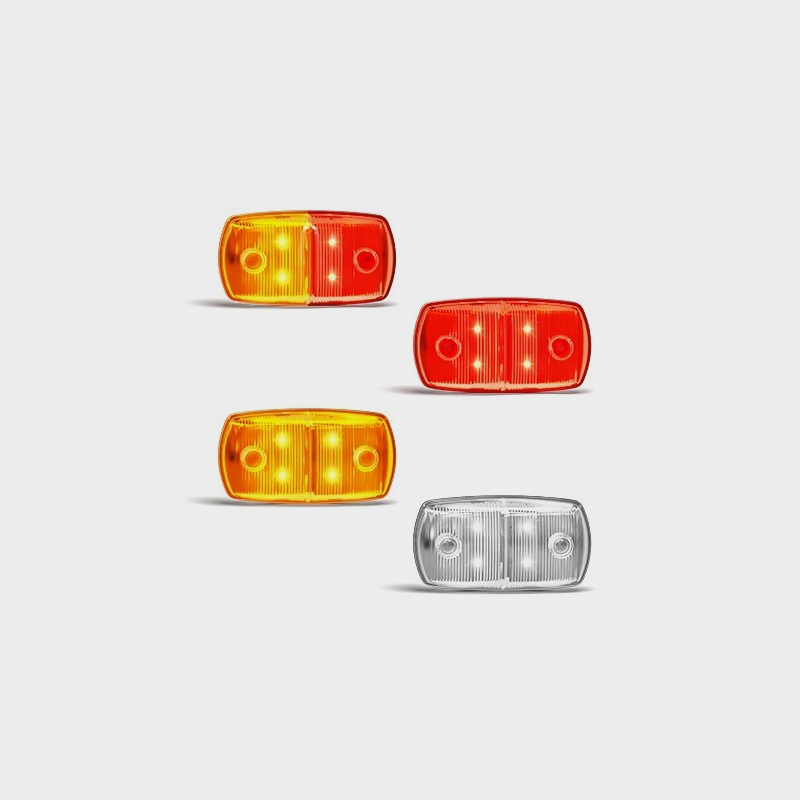

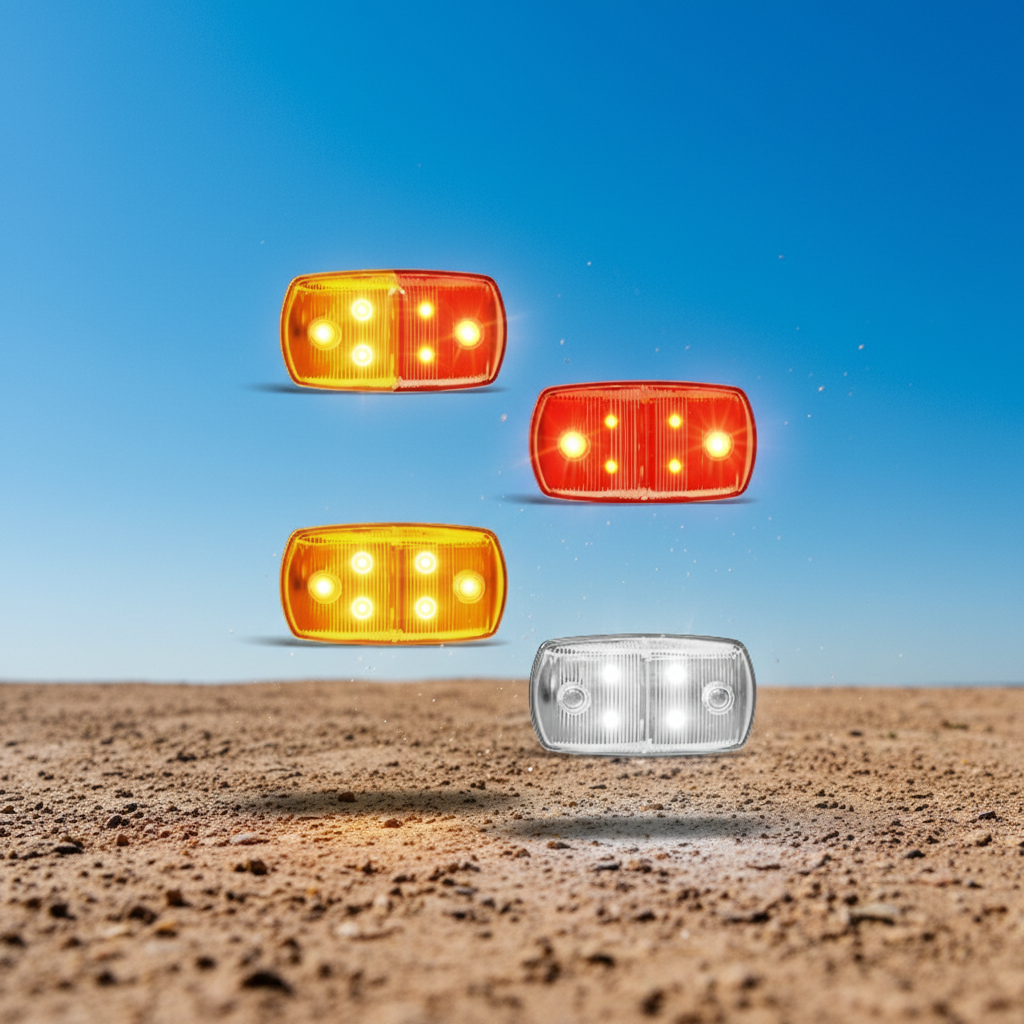

LED Autolamps 69 Series

LED69###

1

LED Autolamps

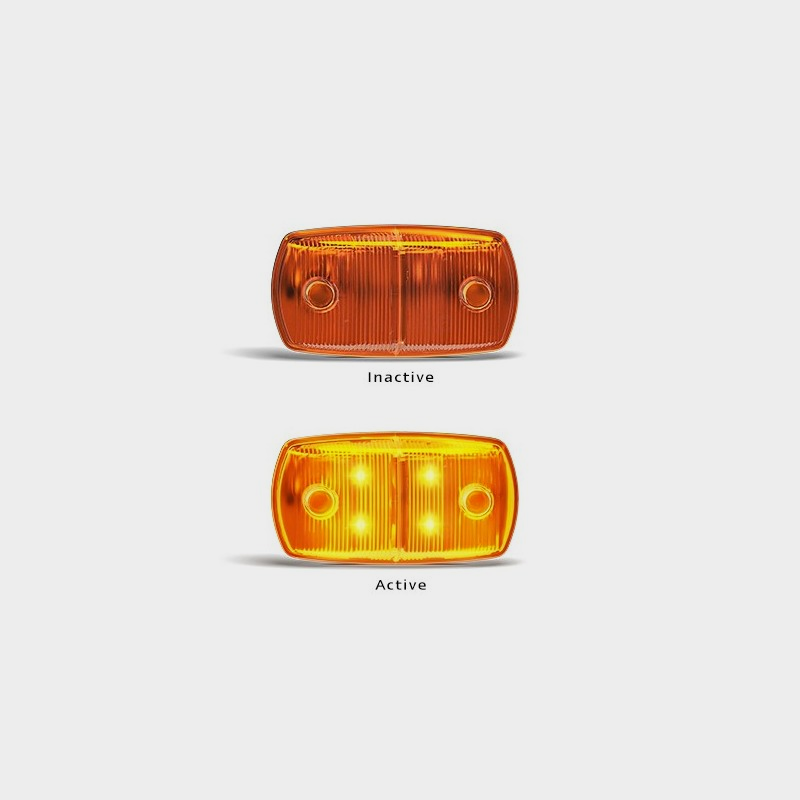

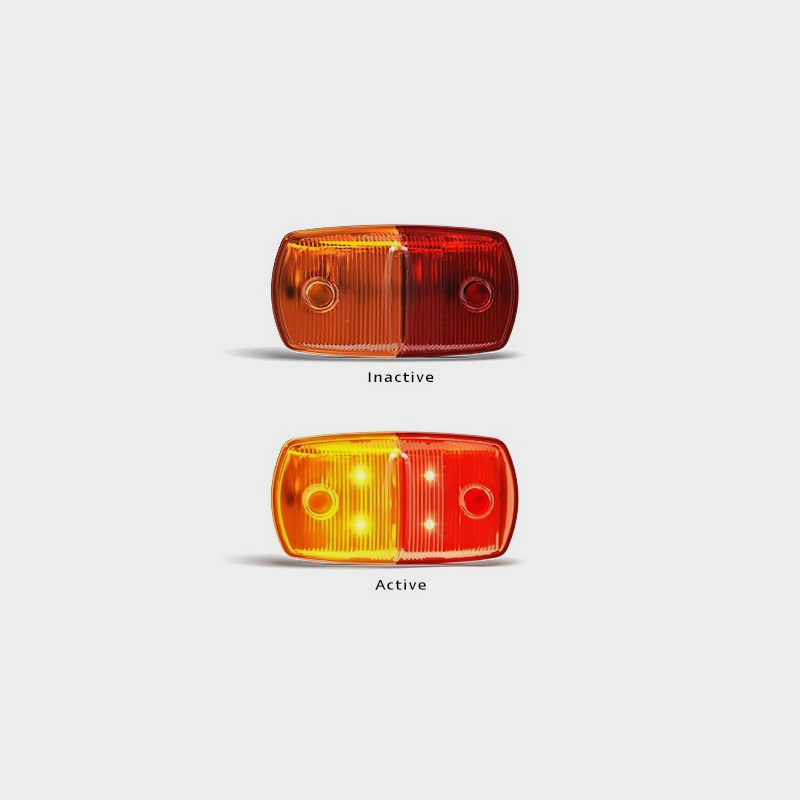

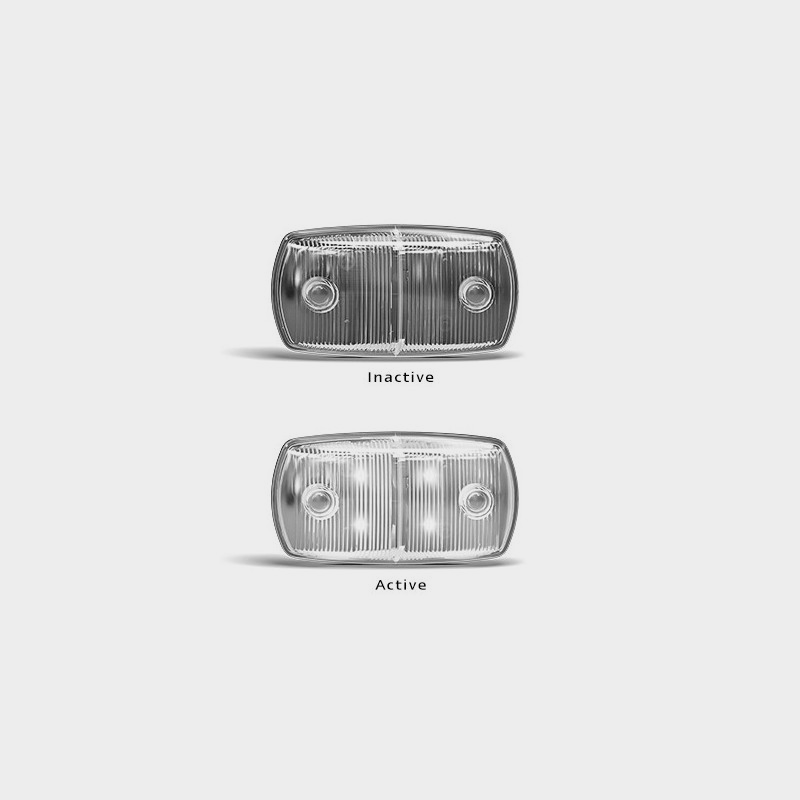

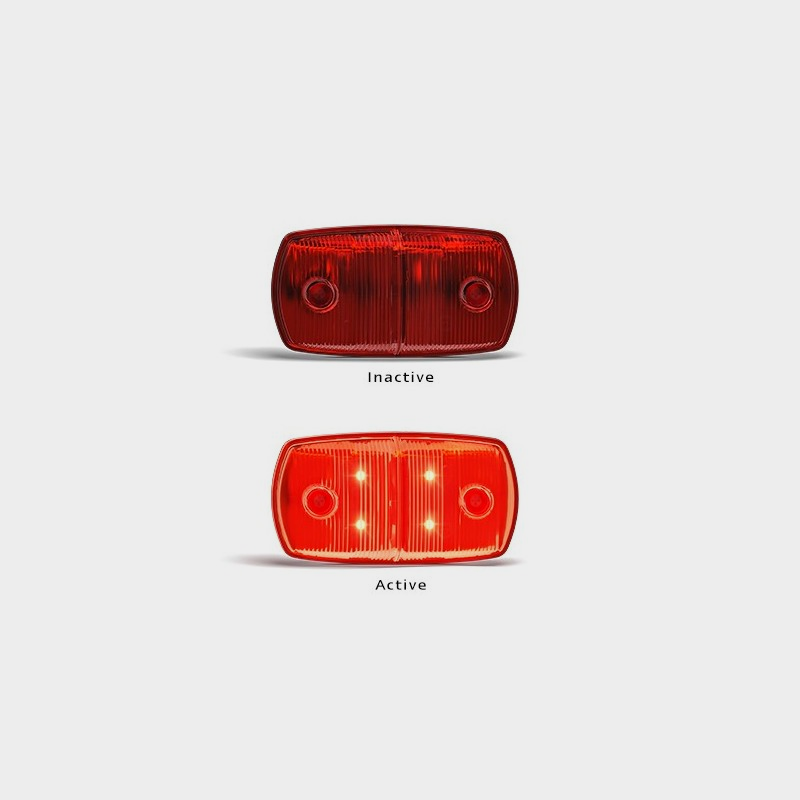

Red/Amber/White

Marker Lamps

120mm x 64mm x 22mm

12-24V

IP67 100% Waterproof

Material: Lens - PMMA; Bracket - ABS

76.5mm Hole Centres

Approvals: ECE/ADR

Fitting Instructions,Screw Cap Removal:
Either use one of the supplied screws or a small screwdriver to push them out from the rear of the lamp. Surface mount onto flat surface horizontally with screws, run wire through hole in fixing surface. Then, after fitting the lamp, push the screw caps back into place. Please refer to ADR 13/00 for mounting instructions.

Wire Colours: Brown - Power, White - Earth
