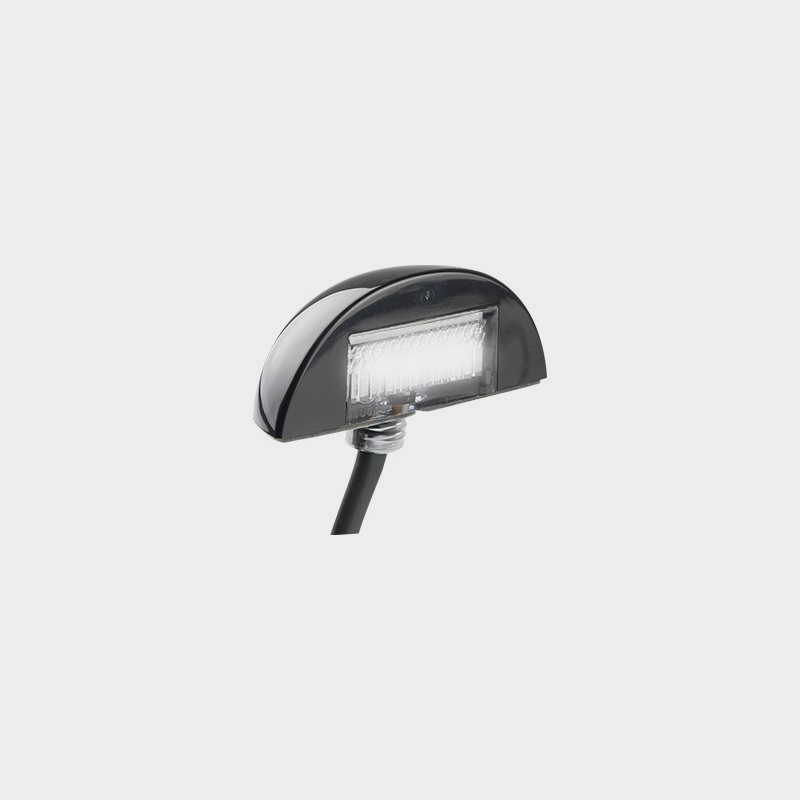

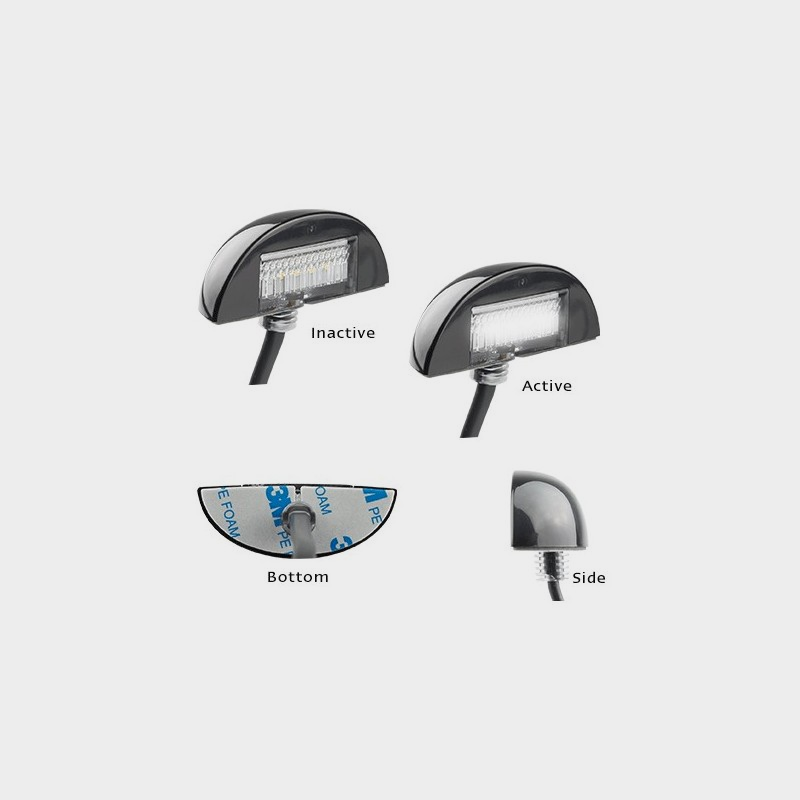

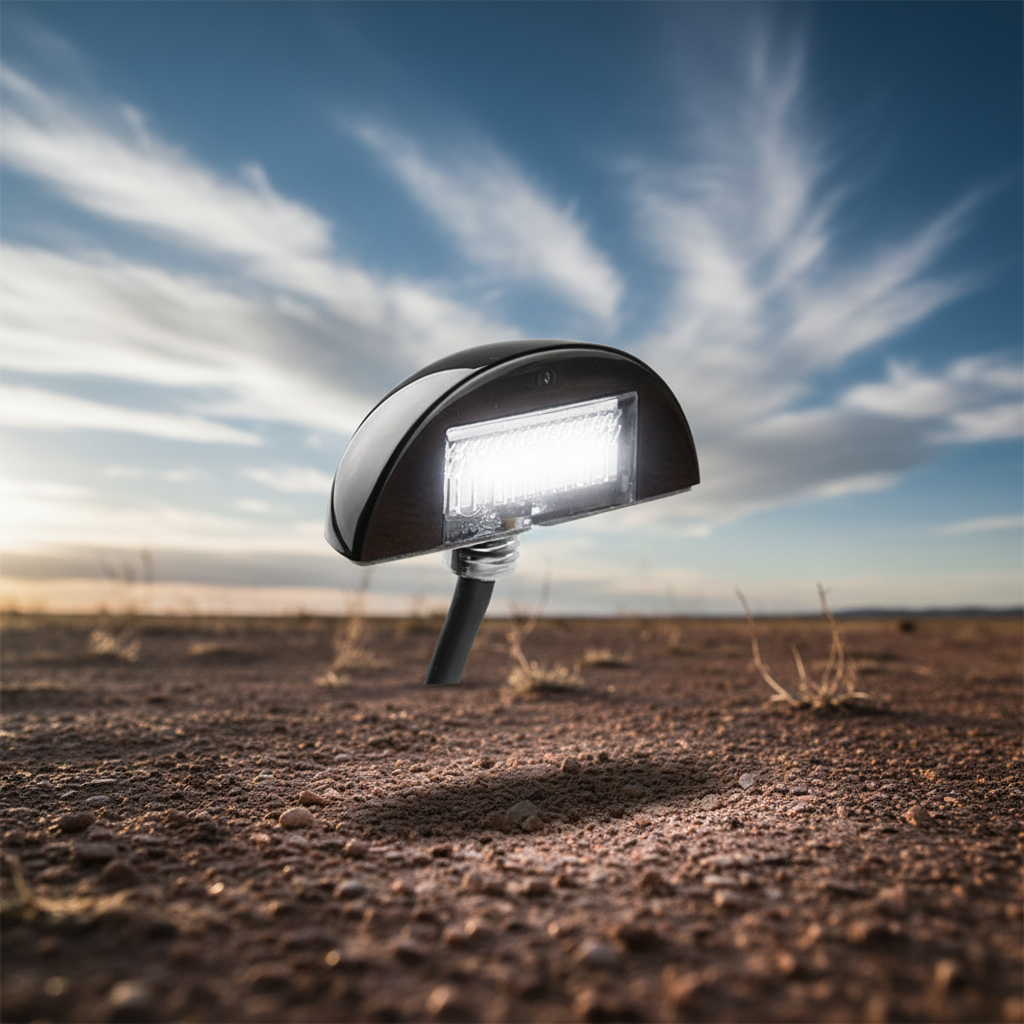

Part #: LED60BLM
Function: Licence Plate Lamp
Size: 60mm x 22mm x 22mm
LED Qty: 4 SMD
Voltage: 12-24V
Cable: 10cm
Current Draw: @13.8V: 0.03A - @28V: 0.03A
IP Rating: IP67 100% Waterproof
Approvals: ECE/ADR Approved
Fitting Instructions:
Drill a 10mm hole for the serrated plug. Pull the sheathed cable through the hole.
Remove the protective film from the 3M tape. Push the serrated plug into the hole
Line up the lamp and press firmly. The lamp is held securely with the plug serrations and high quality 3M tape. Please refer to ADR 13/00 for mounting instructions.
Cable Type | Nominal Area | Outside Diameter | Amp Rating @ 30°C |
---|---|---|---|
8B&S Single Core | 7.71mm² | 5.5mm | 74A |
6B&S Single Core | 13.50mm² | 7.2mm | 103A |
4B&S Single Core | 20.26mm² | 8.3mm | 135A |
3B&S Single Core | 26.45mm² | 10.2mm | 168A |
2B&S Single Core | 32.07mm² | 11.3mm | 188A |
1B&S Single Core | 39.55mm² | 12.1mm | 210A |
0B&S Single Core | 49.00mm² | 12.7mm | 246A |
00B&S Single Core | 64.15mm² | 14.5mm | 292A |
000B&S Single Core | 83.19mm² | 16.4mm | 335A |
8B&S Twin Core | 7.71mm² | 7.1mm x 12.5mm | 59.2A |
6B&S Twin Core | 13.50mm² | 8.8mm x 16.0mm | 82.4A |
4B&S Twin Core | 20.26mm² | 10.3mm x 18.6mm | 108A |
2B&S Twin Core | 32.07mm² | 13.4mm x 24.6mm | 150.4A |
2B&S Welding | 35mm² | 13.1mm | 155A |
0B&S Welding | 50mm² | 14.9mm | 185A |
00B&S Welding | 70mm² | 17.0mm | 240A |
