LED Autolamps 30 Series
LED Autolamps 30 Series
  • Part #: LED30BLM
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

LED Autolamps 30 Series

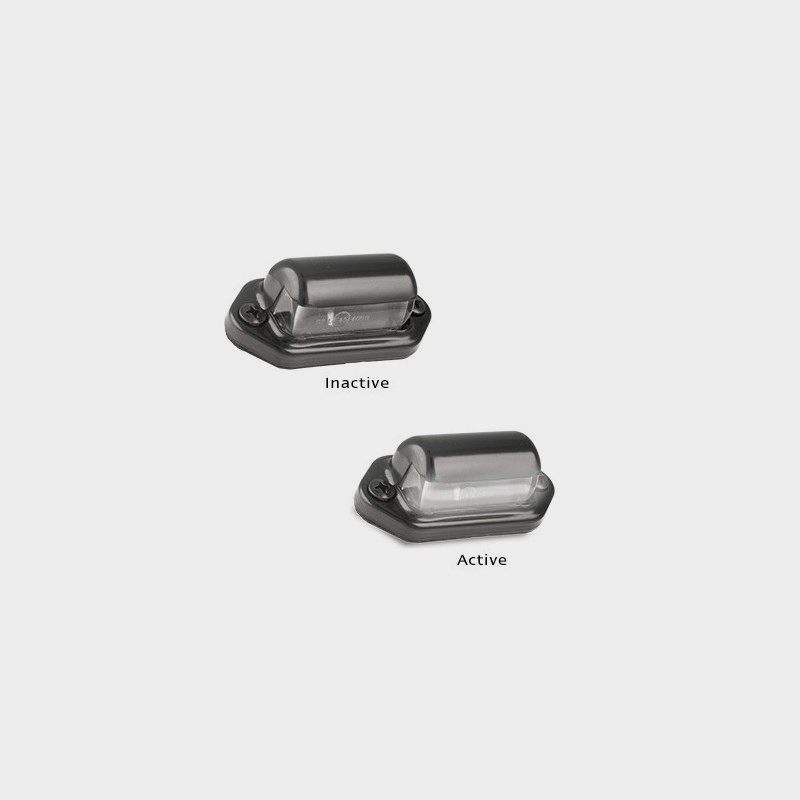

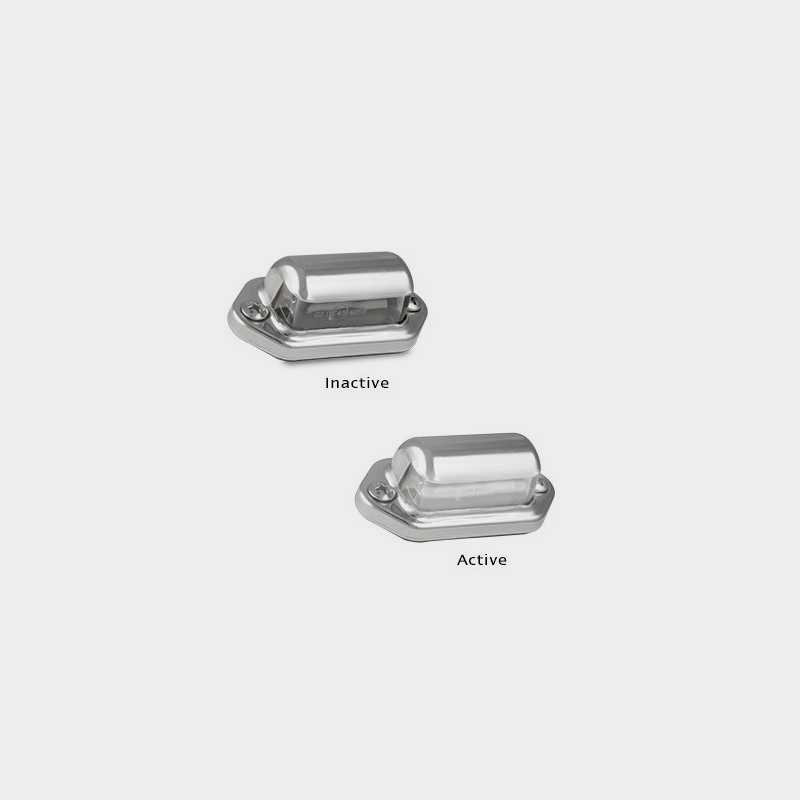

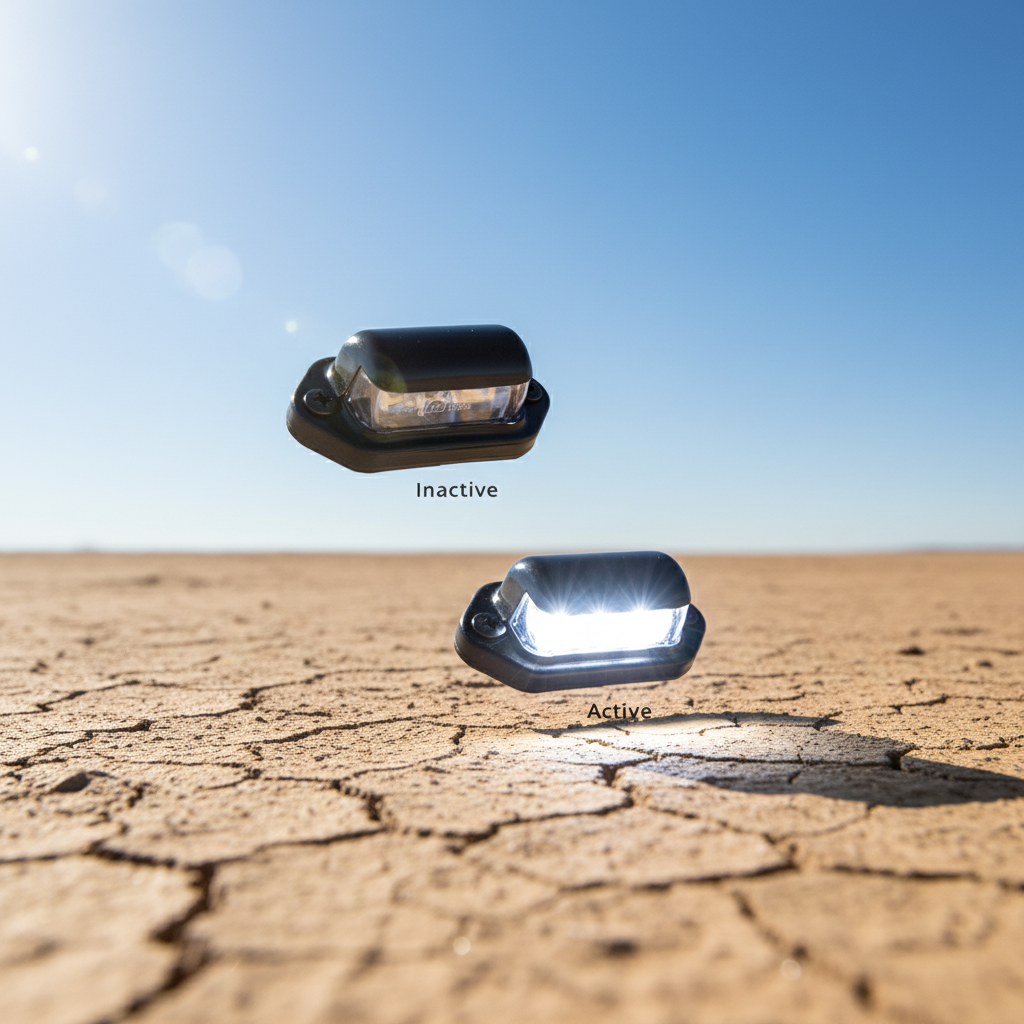

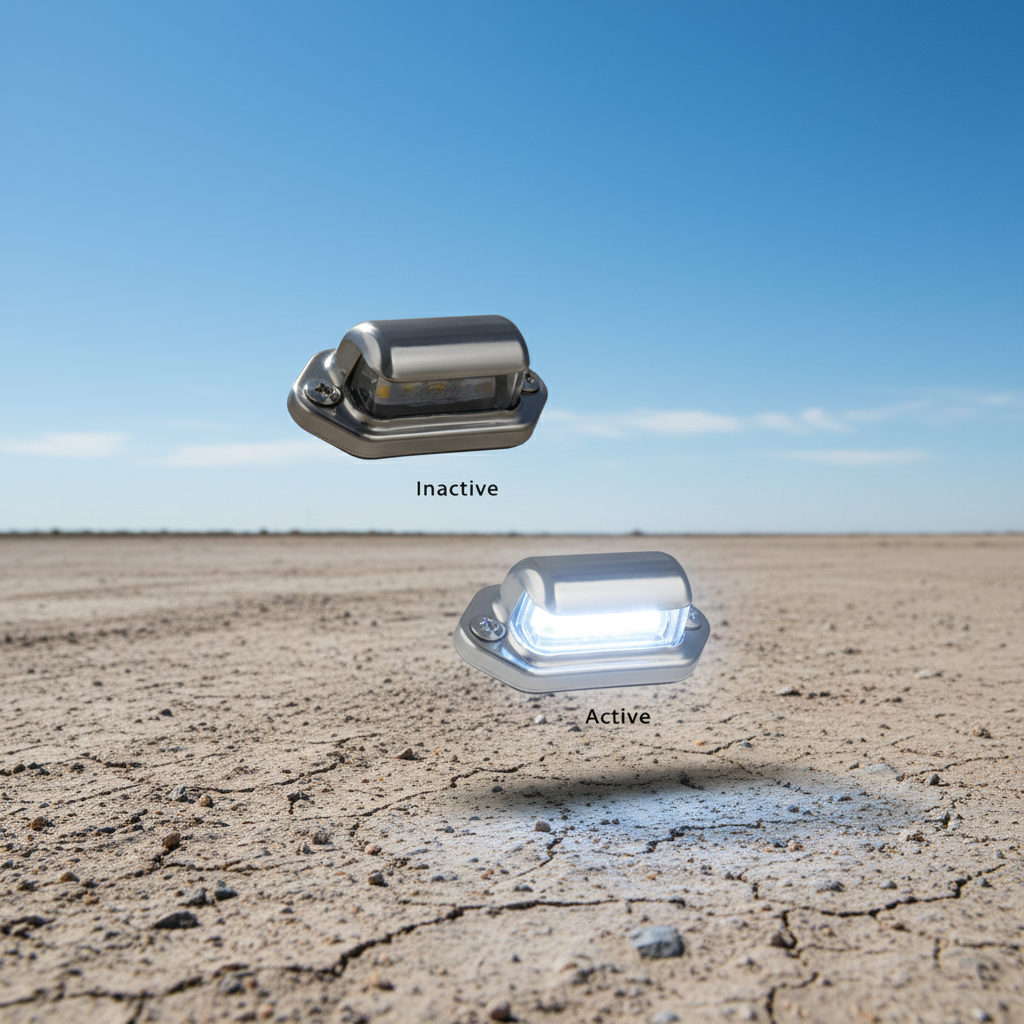

LED Autolamps 30 Series Licence Plate Lamp

  • Black or Chrome Steel Housing
  • Low Profile Compact Design
  • 5 Year Warranty

Part #: LED30#LM

Function: Licence Plate Lamp

Size: 65mm x 30mm x 24mm

LED Qty: 3

Voltage: 12-24V

Cable: 14cm

Current Draw: @13.8V: 0.02A - @28V: 0.03A

IP Rating: IP67 100% Waterproof

Material: Lens-PMMA;  Housing-Steel

Approvals: ADR Approved


Fitting Instructions:

Run wires through the hole in a flat fitting surface, ensure the foam gasket is between the lamp and surface, fix using the screws supplied. You will require one lamp on the left and right side of the licence plate. Refer to the image below for ADR-approved mounting locations.
