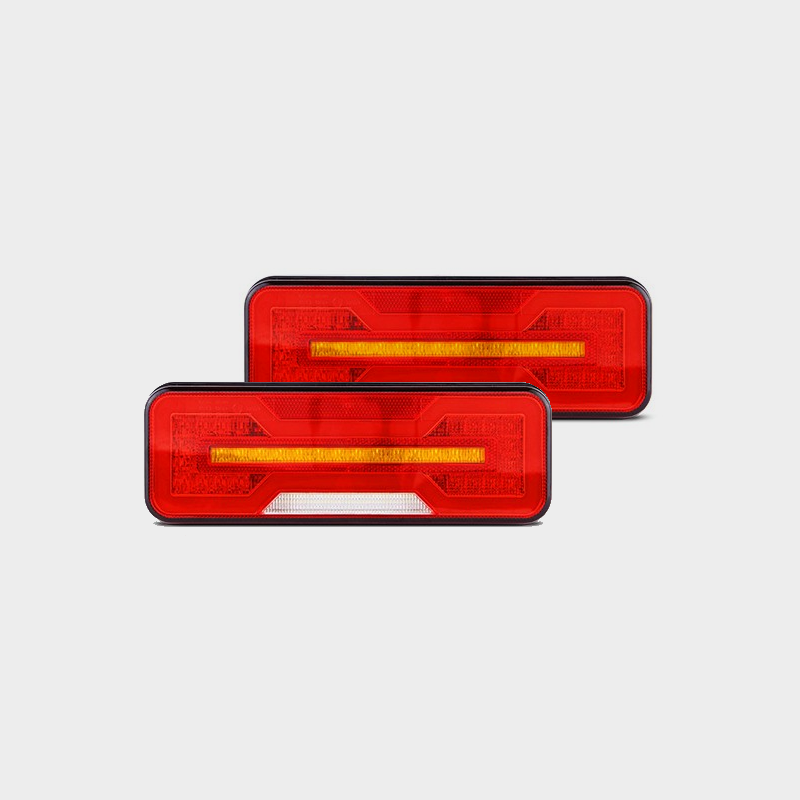

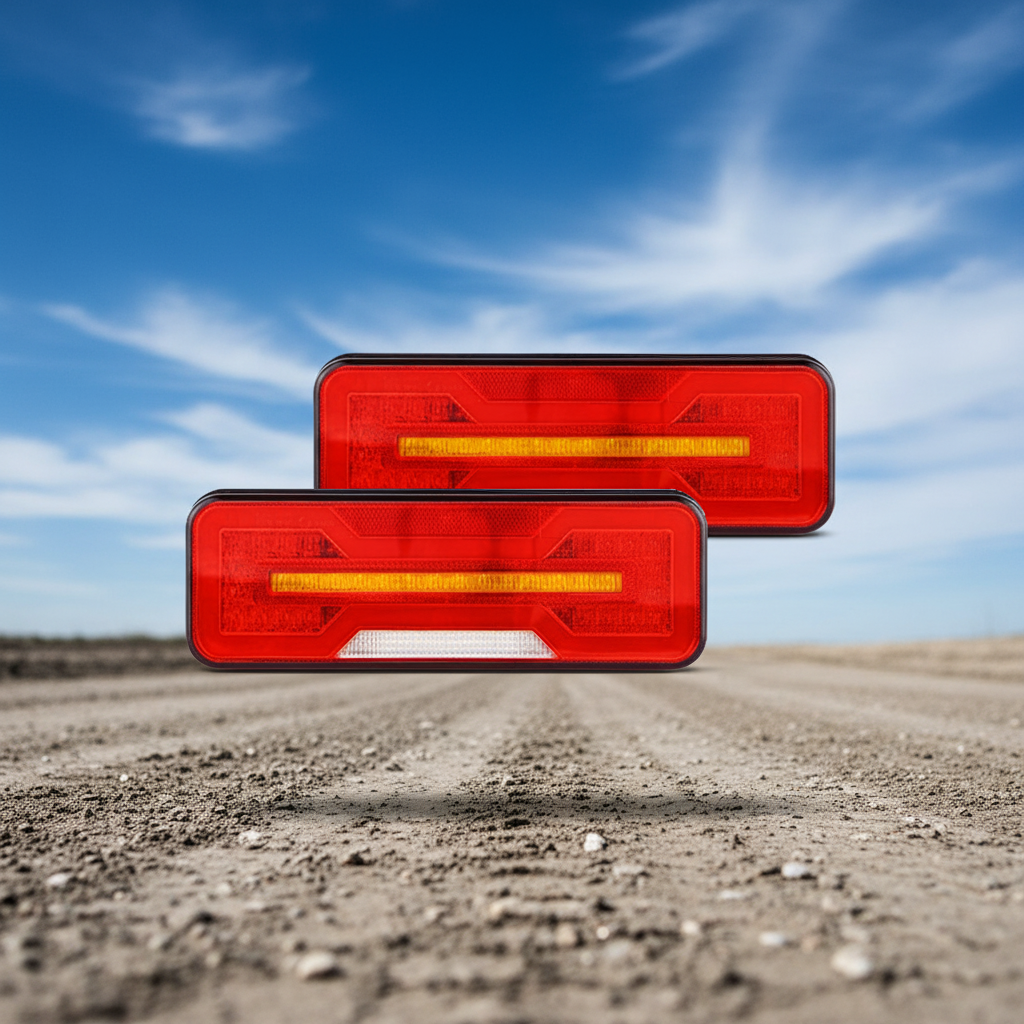

LED Autolamps 284 Series Combination
  • Part #: LED284ARWM-2
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

LED Autolamps 284 Series Combination


LED Autolamps 284 Series Sequential Rear Combination

  • Exclusive Design
  • Sequential Indicator
  • Diffused Tail Function
  • 5 Year Warranty

Part #: LED284ARWM-2

Function: Stop/Tail/Indicator/Reverse/Reflector

Size: 284mm x 100mm x 37mm

Voltage: 10-30V

Cable: 280mm

IP Rating: IP67 (100% Waterproof)

Material: Lens - Polycarbonate;   Bracket - Polycarbonate

Approvals: ECE Australian Road Approved


Wire Colours:

Brown - Tail

Red - Stop

Yellow - Left Indicator

Green - Right Indicator

Black - Reverse

White - Earth

Fitting Instructions:

Surface mount horizontally using bolts in the back of the lamp, run wire and plug through 10mm hole in fixing surface.
