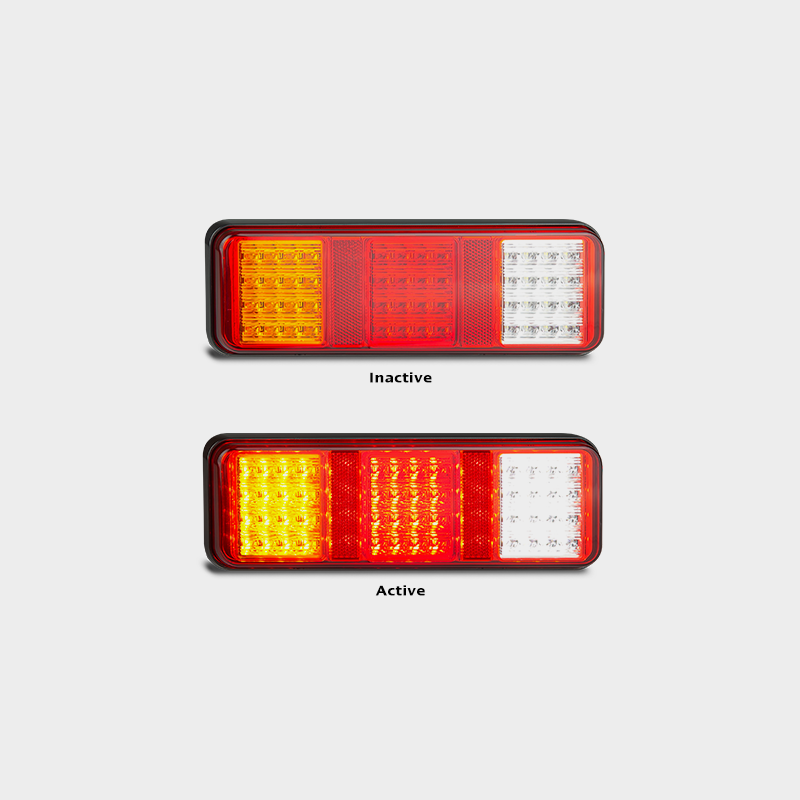

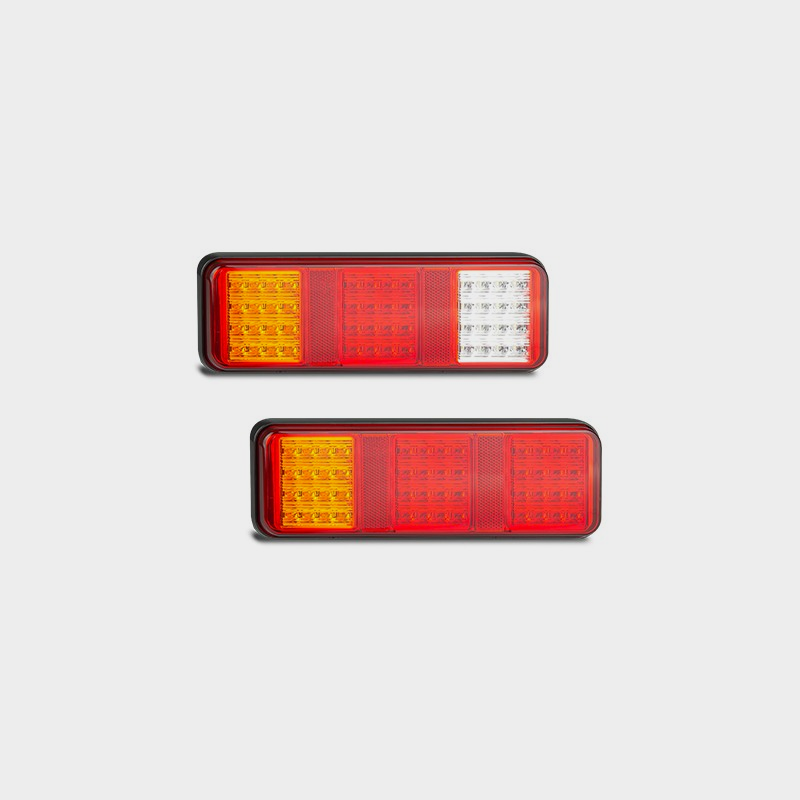

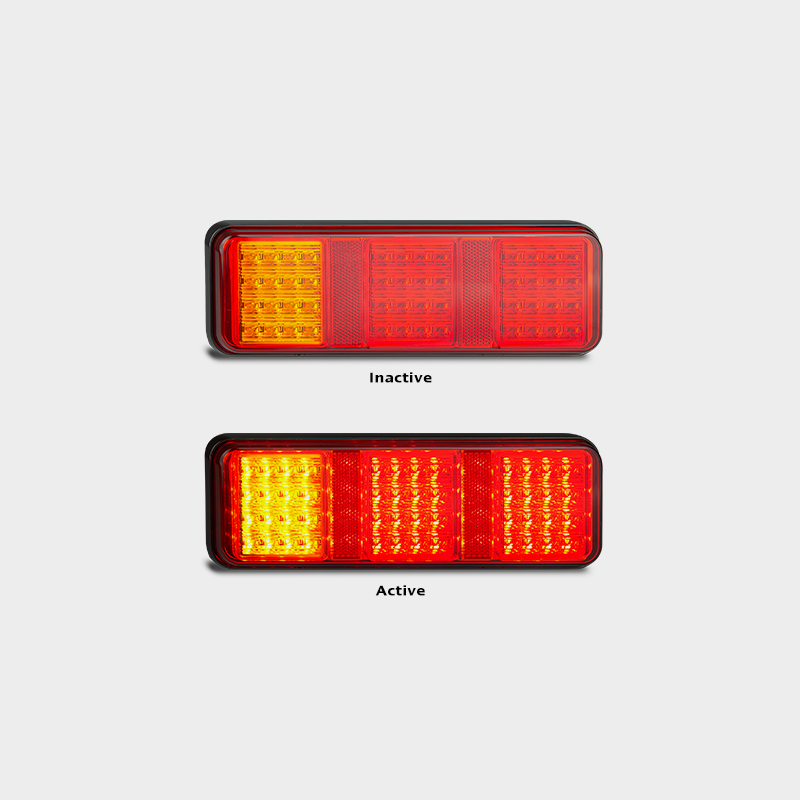

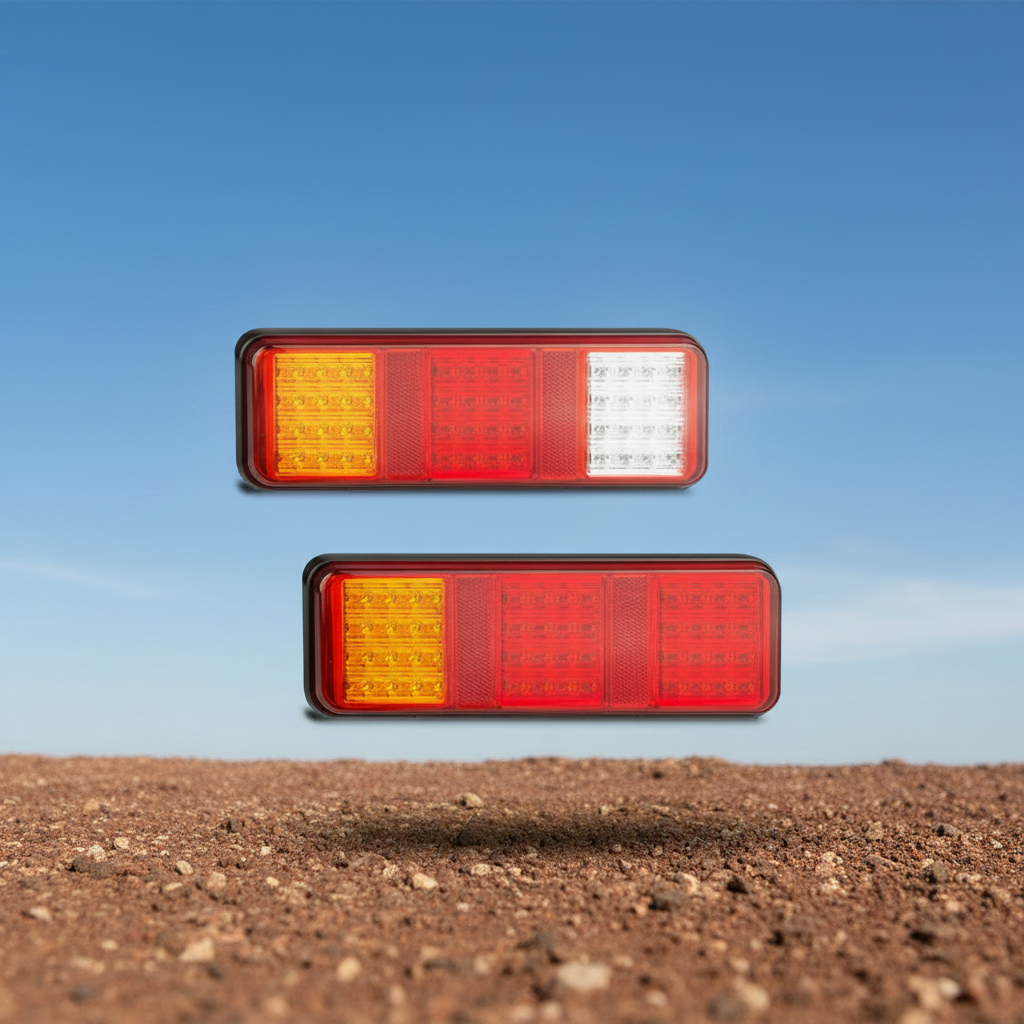

LED Autolamps 283 Series Combination

LED283AR#M

1

LED Autolamps

Amber/Red/White

Stop/Tail, Indicator, Reverse, Reflector

283mm x 100mm x 25mm

12-24V

IP67 100% Water proof

Lens - Hardened Acrylic; Bracket - ABS

LED Qty: 48

Approvals: ECE Australian Road Approved

Bracket Removal Instructions:
Insert a Flat Screwdriver between the lamp and base and carefully lever the base away from the lamp until it releases. You will need to lever from both sides of the long edge. After fitting the base using the screw or bolt option simply reposition the lamp in the base and gently push until it clicks into place
