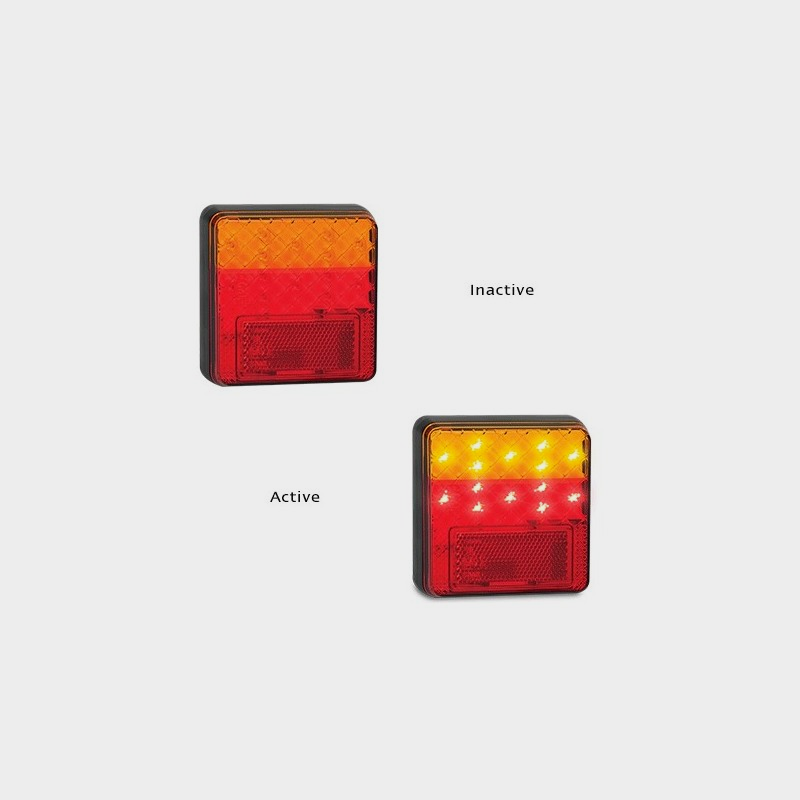

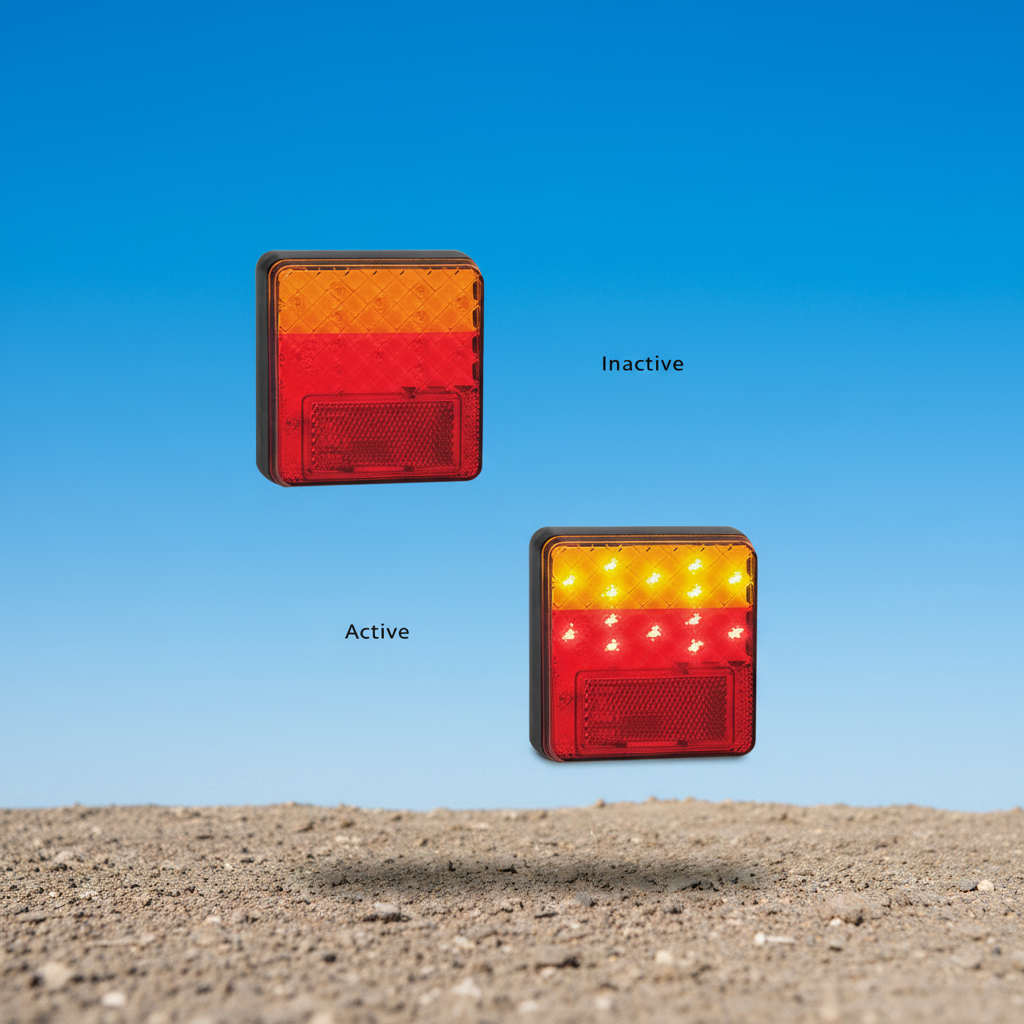

Part #: LED100BAR2 or LED100ARM
Size: 100mm x 100mm x 22mm
Voltage: 12V or Multivolt
LED Qty: 14
Cable: 40cm with Plug
IP Rating: IP67 (100% Waterproof)
Approvals: ADR Australian Road Approved
Material: Lens-Hardened Acrylic; Base-Black ABS
Draw @13.8V: Stop - 0.13A; Tail - 0.04A; Indicator - 0.12A
Mount onto a flat surface vertically with indicator to the top using bolts in back of lamp.
Run wire and plug through 10mm hole in fixing surface.
Please refer to ADR 13/00 for mounting standards.
