F1.2MT

Junior Timer Injection Tab - (F1.2MT)


Description

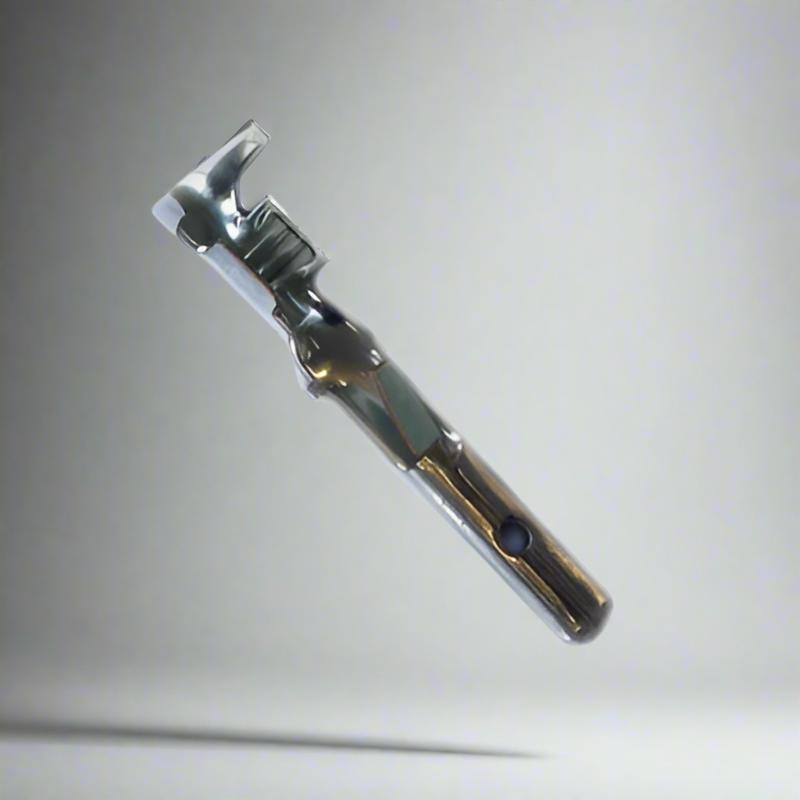

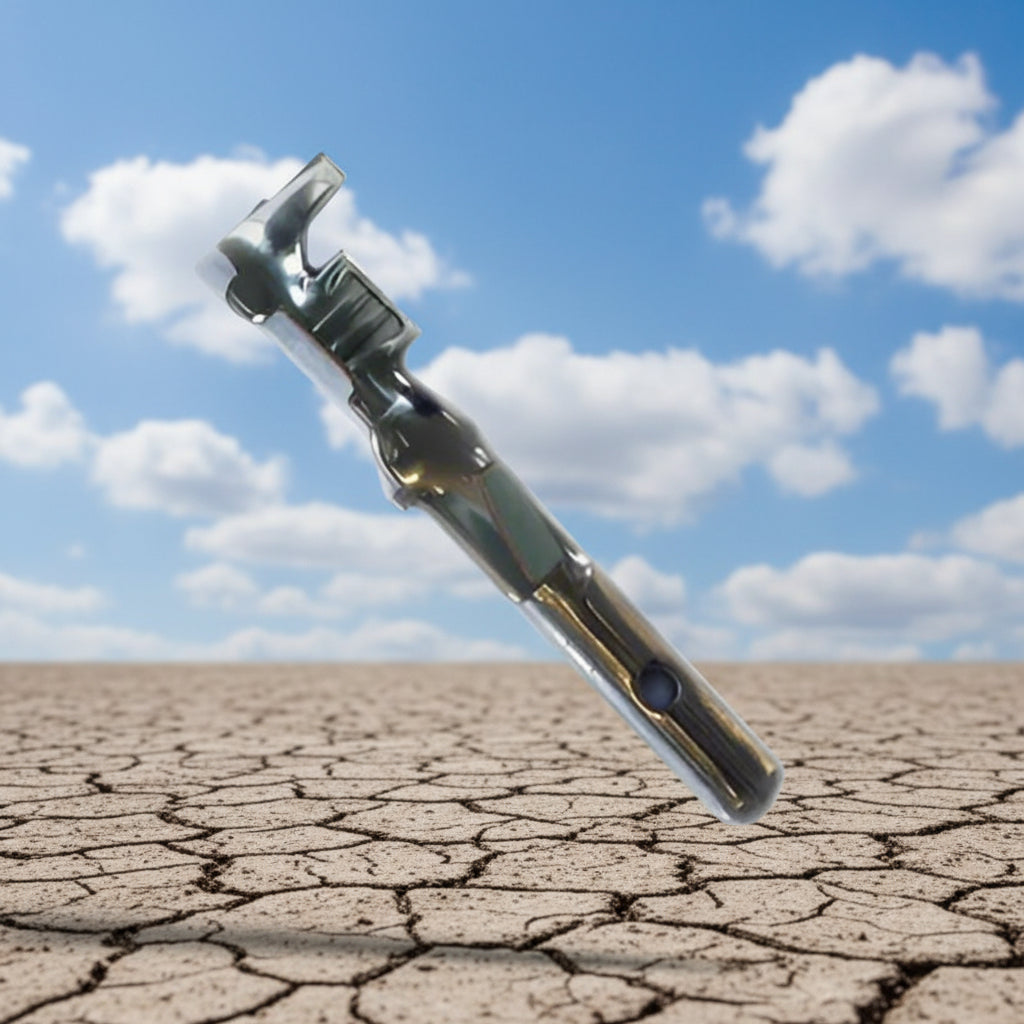

Junior Timer Injection Tab

Bosch Junior Timer Series 2.80mm Male Tab Terminal with single Lock Tang that suits Bosch Junior Timer Injector and Engine Management connectors.



Part #:         F1.2MT

Pack Size:  5

Brand:         Bosch (1 234 477 014)



Specifications



Family Name/Series: Bosch Junior Timer

Dimension:                 L22.9mm x W3.80mm x H0.80mm (Tab 2.78mm)

Material:                      Tin Plated Brass

Wire Size:                    0.50~1.50mm2

Current Rating:           0-24 Amps



Applications



  • Standard Bosch/AMP Junior Timer Connectors

  • F1.2MK



Accessories





Mating Part



  • F1.1
