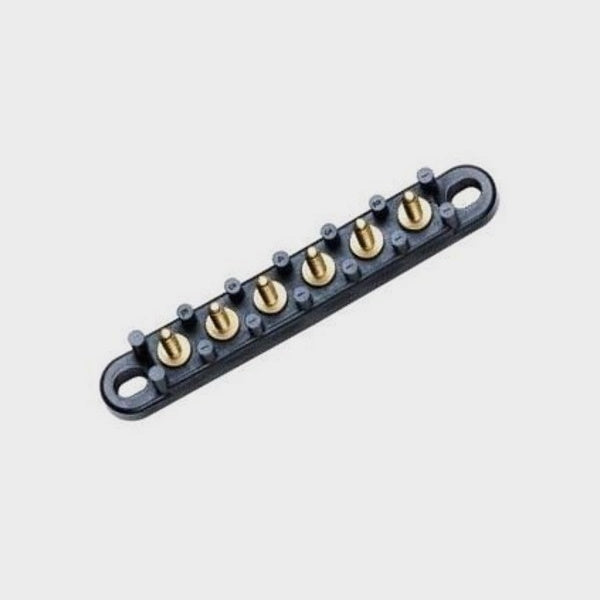

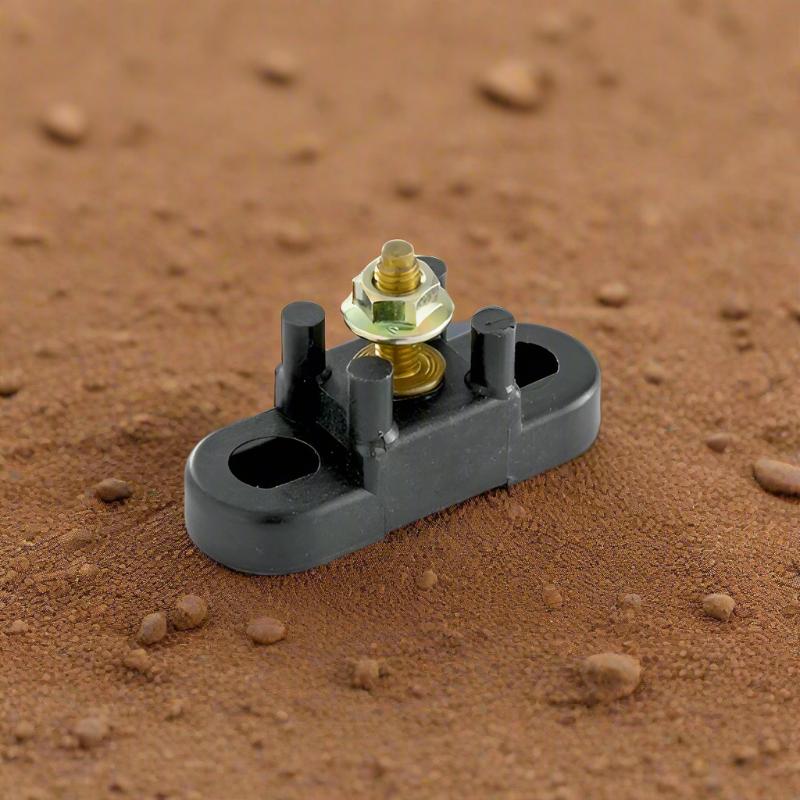

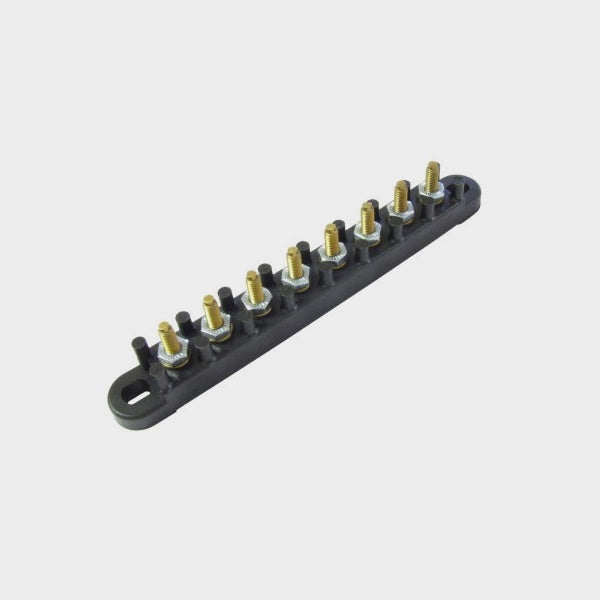

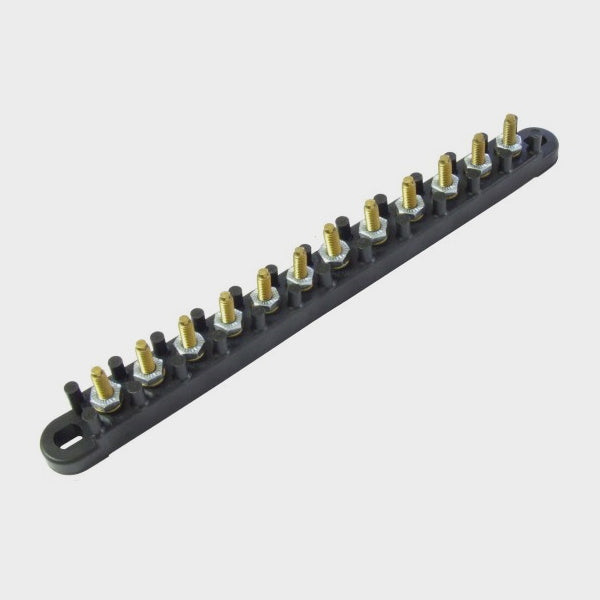

M5 insulating studs
Available in 1, 2, 4, 6, 8 and 12 way.
(Black only)
Please note: All multiple stud options are not bussed.
| Cable Type | Nominal Area | Outside Diameter | Amp Rating @ 30°C |
|---|---|---|---|
| 8B&S Single Core | 7.71mm² | 5.5mm | 74A |
| 6B&S Single Core | 13.50mm² | 7.2mm | 103A |
| 4B&S Single Core | 20.26mm² | 8.3mm | 135A |
| 3B&S Single Core | 26.45mm² | 10.2mm | 168A |
| 2B&S Single Core | 32.07mm² | 11.3mm | 188A |
| 1B&S Single Core | 39.55mm² | 12.1mm | 210A |
| 0B&S Single Core | 49.00mm² | 12.7mm | 246A |
| 00B&S Single Core | 64.15mm² | 14.5mm | 292A |
| 000B&S Single Core | 83.19mm² | 16.4mm | 335A |
| 8B&S Twin Core | 7.71mm² | 7.1mm x 12.5mm | 59.2A |
| 6B&S Twin Core | 13.50mm² | 8.8mm x 16.0mm | 82.4A |
| 4B&S Twin Core | 20.26mm² | 10.3mm x 18.6mm | 108A |
| 2B&S Twin Core | 32.07mm² | 13.4mm x 24.6mm | 150.4A |
| 2B&S Welding | 35mm² | 13.1mm | 155A |
| 0B&S Welding | 50mm² | 14.9mm | 185A |
| 00B&S Welding | 70mm² | 17.0mm | 240A |
