Part #: MP1507MH
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

GMH LS Coil 7 Pin Male Connector Kit

Name: GMH LS Coil 7 Pin Male Connector Kit
Brand: KinKong
SKU: MP1507MH
Price: 22.0 AUD
Availability: InStock

$22.00

Description

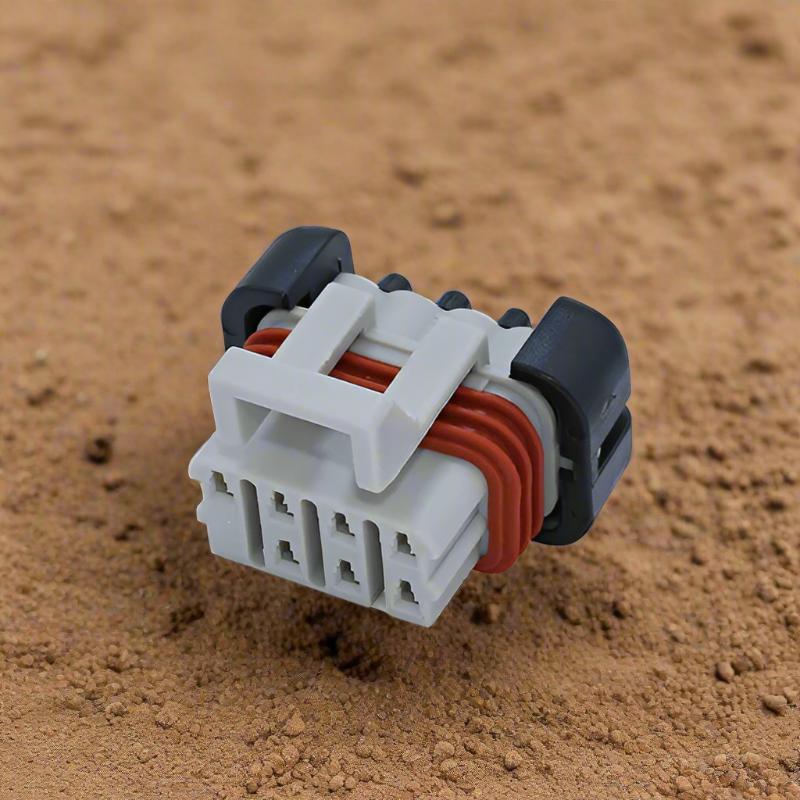

Light Grey 7 way sealed male connector kit complete with terminals and seals suits GM & Holden LS coil looms.

Jay-Dee Part #: MP1507MH

Pack Qty: 1 (1 x Connector, 1 x Lock, 7 x Terminals, 7 x Seals)

Brand: Jay-Dee

Material: Housing:PBT+G,PA66+GF;Terminal:Copper Alloy, Brass, Phosphor Bronze

Operating Temperature range -40℃~120℃

Length: 26.30mm

Width: 35.15mm

Height: 27.90mm

Spare Terminals: MP150FT

Spare Seals: MP150S

Applications:

GM/Holden LS Coil Looms

Recommended Crimping Tools:

IWS-1424AB

Reviews

Cable Type	Nominal Area	Outside Diameter	Amp Rating @ 30°C
8B&S Single Core	7.71mm²	5.5mm	74A
6B&S Single Core	13.50mm²	7.2mm	103A
4B&S Single Core	20.26mm²	8.3mm	135A
3B&S Single Core	26.45mm²	10.2mm	168A
2B&S Single Core	32.07mm²	11.3mm	188A
1B&S Single Core	39.55mm²	12.1mm	210A
0B&S Single Core	49.00mm²	12.7mm	246A
00B&S Single Core	64.15mm²	14.5mm	292A
000B&S Single Core	83.19mm²	16.4mm	335A
8B&S Twin Core	7.71mm²	7.1mm x 12.5mm	59.2A
6B&S Twin Core	13.50mm²	8.8mm x 16.0mm	82.4A
4B&S Twin Core	20.26mm²	10.3mm x 18.6mm	108A
2B&S Twin Core	32.07mm²	13.4mm x 24.6mm	150.4A
2B&S Welding	35mm²	13.1mm	155A
0B&S Welding	50mm²	14.9mm	185A
00B&S Welding	70mm²	17.0mm	240A
