GN12

Gland Nuts

Mounting Thread Size (mm)
Internal Hole Size (mm)
33 items left

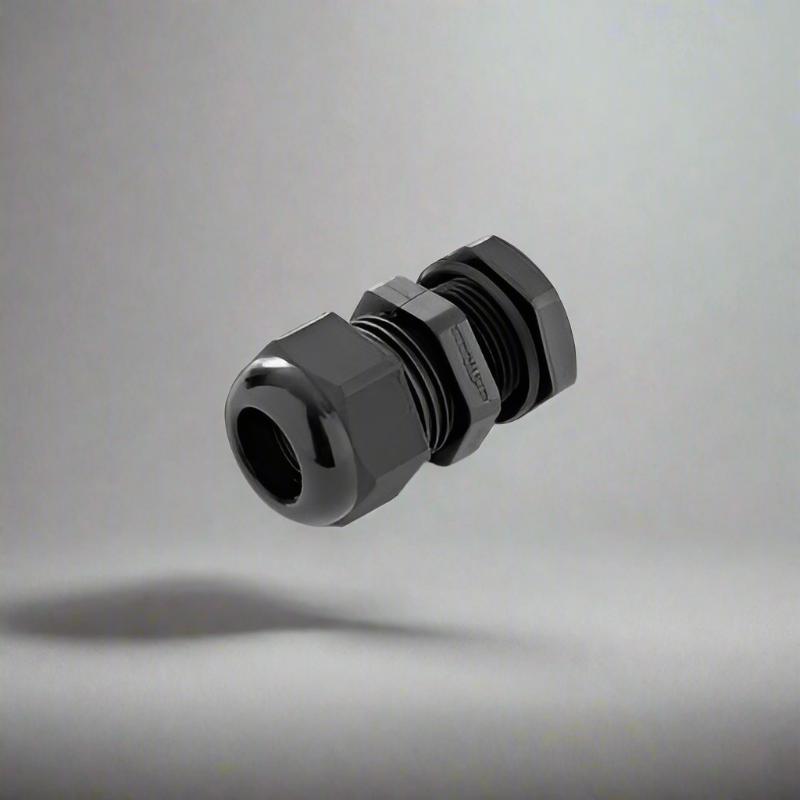

Thomas & Betts Nylon Cable Glands are quick & easy to install with a high quality gripping claw/seal arrangement that caters for a wide range of cable sizes per fi tting. Each gland has no loose parts and requires no disassembly for cable installation.

  • Applications: Indoor and outdoor use
  • Standards: AS1939 - 1990
  • Function: Provides seal on cable sheath
  • Protection Class: IP68, Resistant to salt water, weak alcohol, oil, grease and common solvents
  • Construction Body: UL approved Nylon 66 (Black)
  • Seal: EPDM Rubber Thread Type Metric with locknut and IP68 washer



Part Number   Mounting Thread Size/Length Cable Diameter
GN12 M12 x 1.5mm 4-7mm
GN16 M16 x 1.5mm 6-10mm
GN20 M20 x 1.5mm 8.5-14mm
GN25 M25 x 1.5mm 12.5-18mm
GN32 M32 x 1.5mm 18-25mm
GN40 M40 x 1.5mm 24-32mm





Download Sizing Guide
