Fusible Link Connectors

FLK1B

Type
Gender
Circuits
18 items left

Fusible Link Connectors

Family Name/Series: 312 [7.70mm]

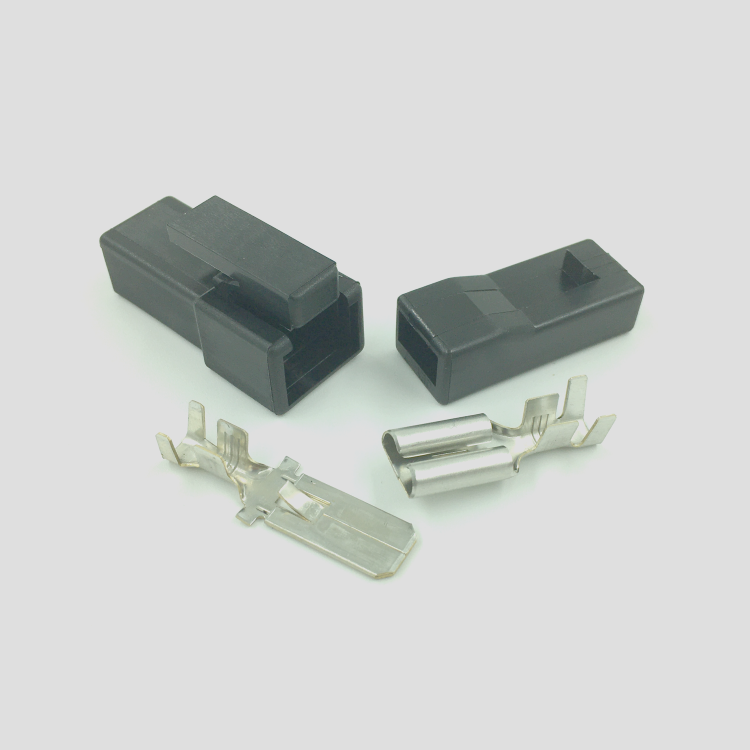

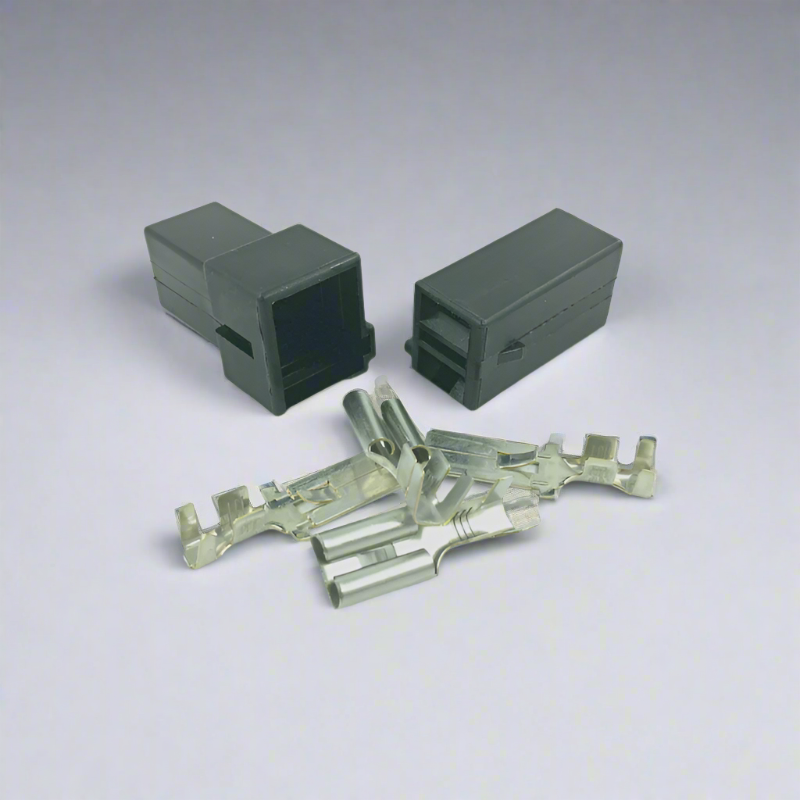

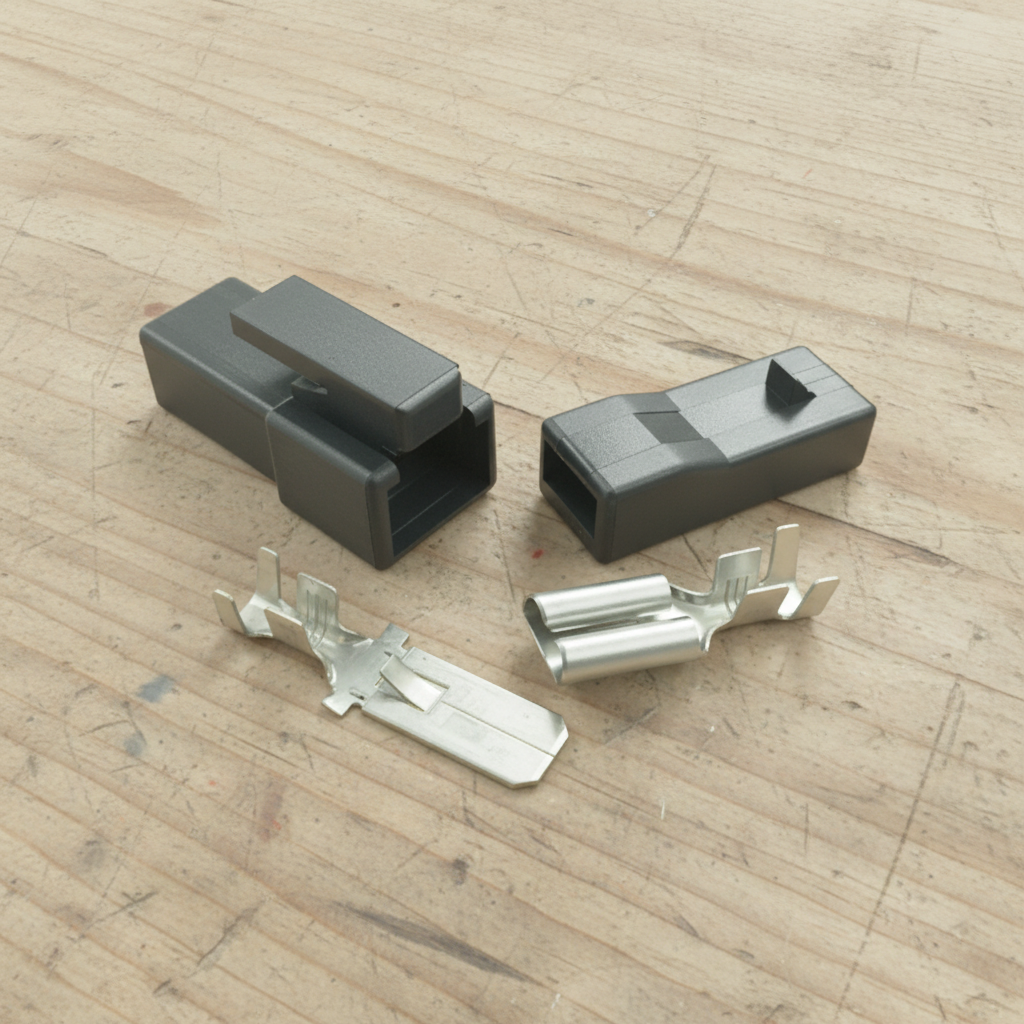

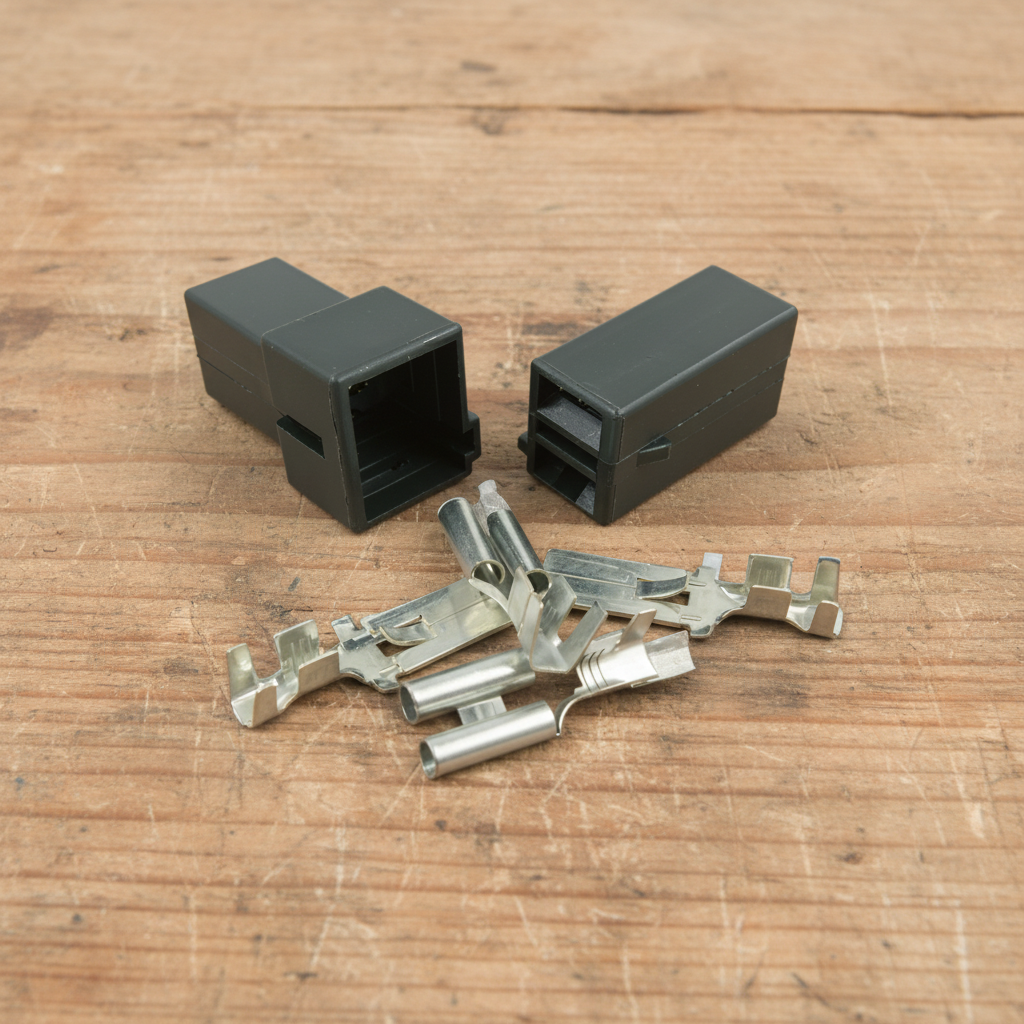

Kits include: 1 x Male Housing, 1 x Female Housing, Male and Female Terminals to suit



Housings:

Material: PA66

Operating Temperature Range: -40~120C

Pack Size: 10 Pack (Ordered as 1)



Terminals:

Material: Brass

Plating: Pre-Tin

Cable Size: 3.00 - 5.00mm²

Male Dimensions: L30.2mm x  W7.7mm x  H0.8mm

Female Dimensions: L25mm x  W9mm x  H3.2mm

Pack Size: 25 Pack (Ordered as 1)



Recommended Crimping Tools:

IWS-510C

HT4560
