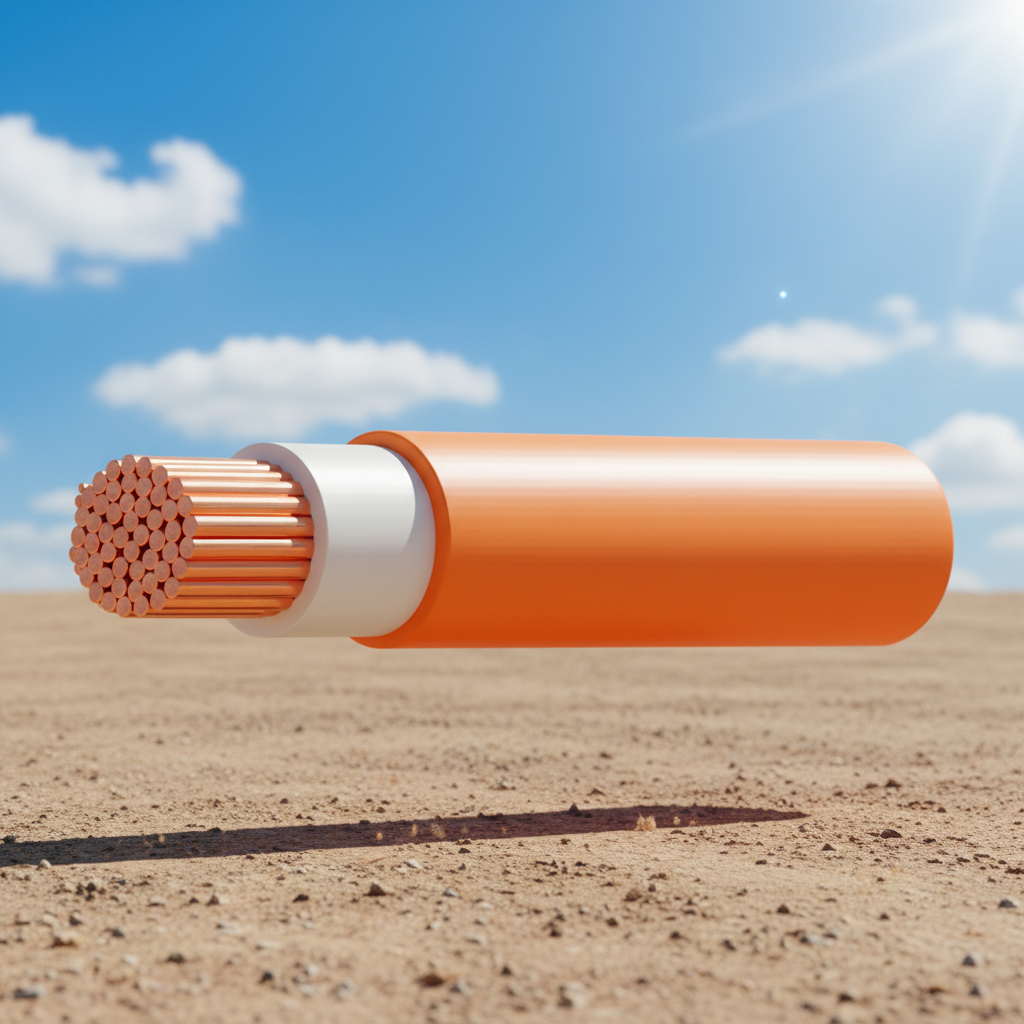

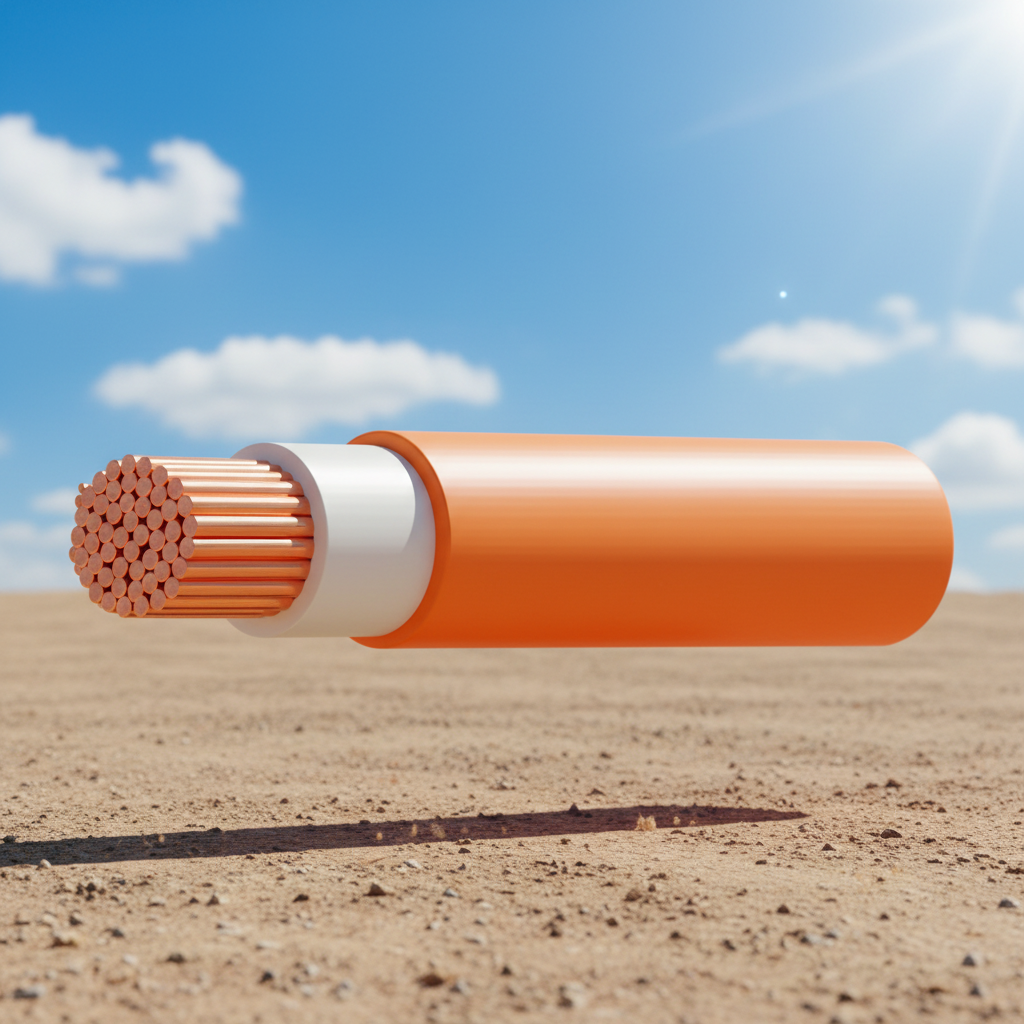

Welding Cable 50mm²

CW0-OR-1

Colour
Orange
Length
36 items left

Flexible Power Single Core 0.6/1KV Double Insulated - 50mm²

50mm² flexible power/welding single core cable for fixed power applications:

  • Power: Switchboards, busbars, transformers
  • Welding: Earth and electrode leads
  • Automotive: Jumper Leads, Battery chargers

Jay-Dee Part #: CW0-10-1

Pack Qty: By the metre

Brand: Tycab

Nominal Area: 50mm²

Nominal O.D: 14.90mm

AMP Rating* two single cores: 185

Voltage Drop mV/Am at Max operating Temperature–Single Phase: 0.96

Voltage Drop mV/Am at Max operating Temperature–Three Phase: 0.83

Conductor: Flexible Class 6 Bunched OXYGEN FREE Plain Copper Wire to AS/NZS 1125

Conductor Qty & Diameter: 1568/0.2mm

Insulation (White): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808

Insulation Thickness:1.4mm

Sheath (Orange): RoHS Compliant Nitrile (NBR) Modified P.V.C. type V90HT to AS/NZS 3808

Sheath Thickness:1.4mm

Electrical Resistance at 20°C: 0.386 ohm/km

Mass: 52.84kg/100mmm

Maximum operating temperature: 75°C in normal Use OR 105°C where not subject to, or protected from, mechanical damage (refer AS/NZS 3008.1.1:2009)


*AMP Ratings are to AS/NZS 3008. Unenclosed-Spaced at 40°C (in air), 25°C (in ground). Refer AS/NZS 3008 for derating factors – For Welding AMP Ratings refer to AS/NZS 1995.

Applications:

  • Power: Switchboards, busbars, transformers
  • Welding: Earth and electrode leads
  • Automotive: Jumper Leads, Battery chargers
