C20T-12/1-100

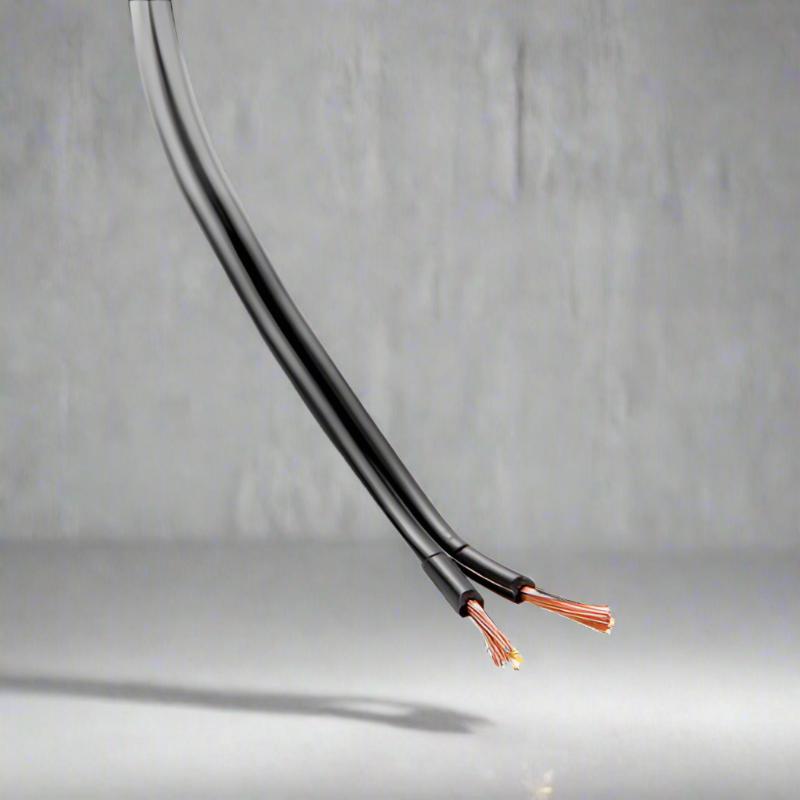

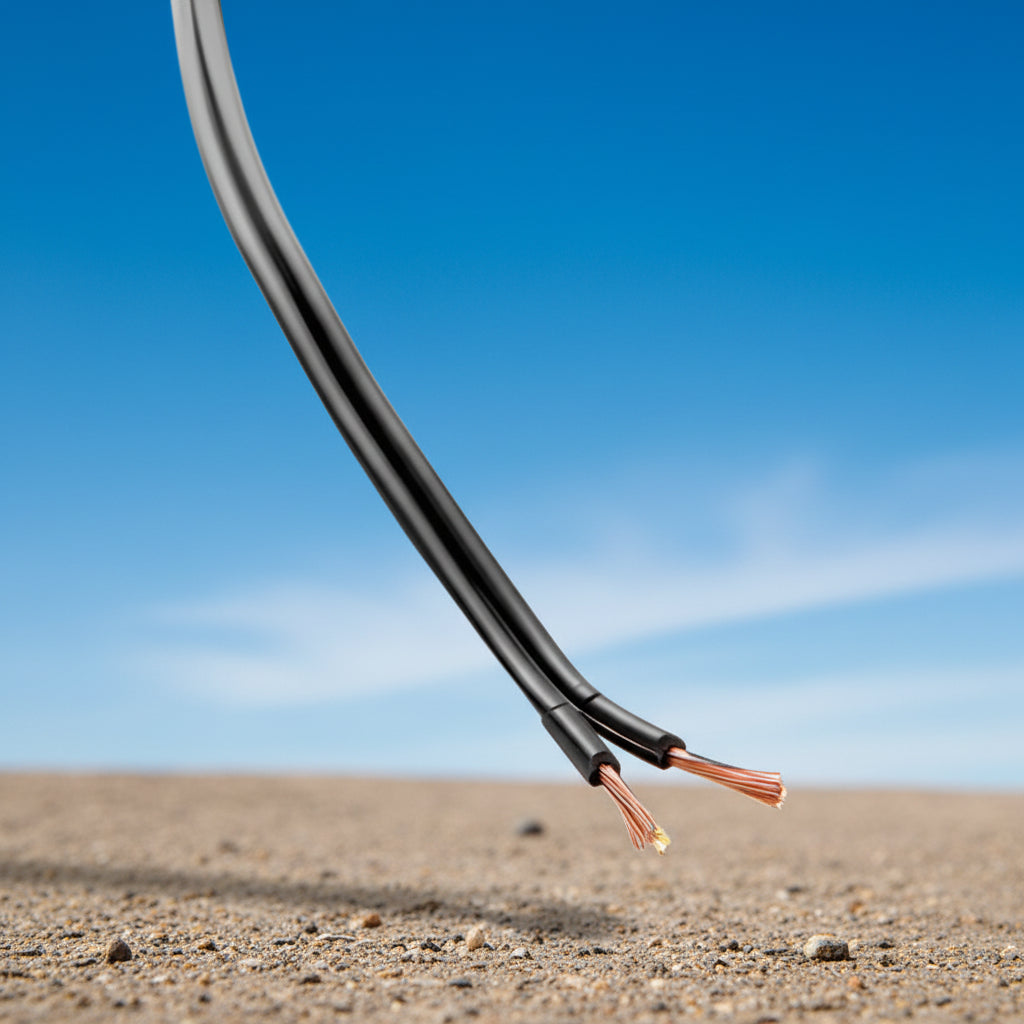

Figure 8/Speaker Cable

Cable Size
Colour
Black/White
Gray/Black
Blue/Black
Brown/White
Red/Black
Blue/White
Red/White

Oxygen free plain copper conductor to 99.98%
60 V dc / 25 V ac

PVC V90 HT (V105)



Code

Industry

Conductor

Nom mm2

AMP

Insulation

Resistance

Nom OD

C20T

2 x 2mm

14/0.2

1.13

2.5

0.8



2.40 x 4.80

C18T

2 x 2.5mm

24/0.2

1.84

5

0.8



2.60 x 5.10

C16T

2 x 3mm

14/0.32

1.13

10

0.8

16.5

2.60 x 5.90

C14T

2 x 4mm

23/0.32

1.84

15

0.8

10.10

3.10 x 6.70



AMP rating uses JASO D609 derating factors

Resistance is @20oC (ohm/km)



Roll size available in 100 metres
Colours: Black/White, Red/Black, Red/White, Blue/White, Brown/White, Grey/Black
