Denso Ignition Coil Connector Kit

Denso Ignition Coil Connector Kit

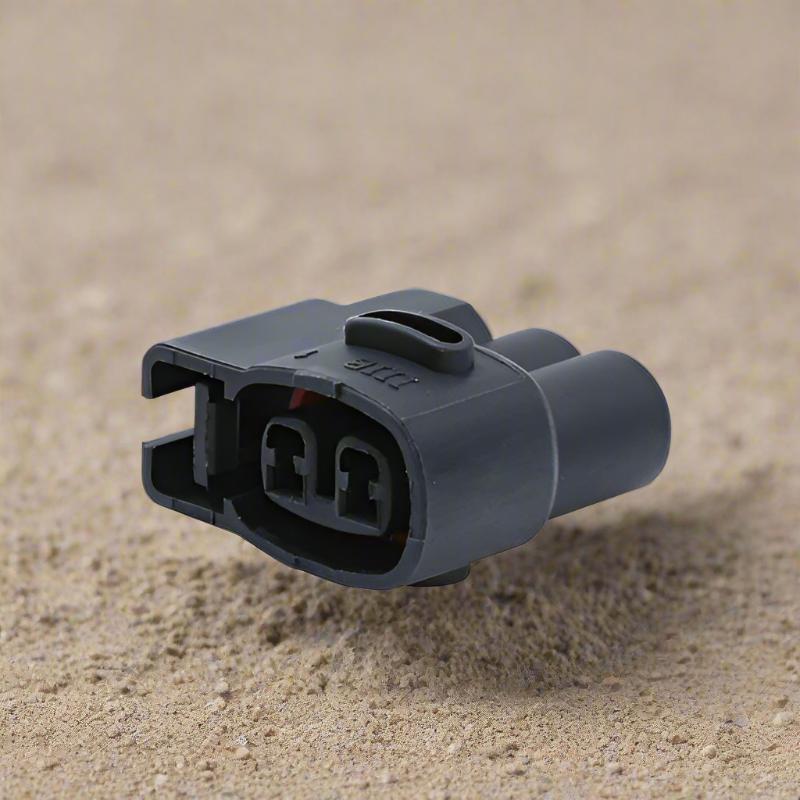

Black 2 way sealed female connector kit complete with terminals and seals suits oval Denso ignition coils on Toyota, Mazda, Hyundai & Kia.

Please refer to the applications tab below.

Jay-Dee Part #: DIC2/K

Pack Qty: 1 (1 x Connector, 2 x Terminals, 2 x Seals)

Brand: Jay-Dee

Material: Housing:PBT+G,PA66+GF;Terminal:Copper Alloy,Brass,Phosphor Bronze

Operating Temperature range -40℃~120℃

Length: 23.50mm

Width: 23.60mm

Height: 15.90mm

Spare Terminals: AUFT

Applications:

Mazda RX7 S6 Ignition Coil

Mazda RX7 S7 Ignition Coil

Mazda RX7 S8 Ignition Coil

Toyota 1JZ-GE Ignition Coil

Toyota 1JZ-GTE Ignition Coil

Toyota 2JZ-GE Ignition Coil

Toyota 2JZ-GTE Ignition Coil

Toyota 1UZ-FE Ignition Coil

Toyota 3SGE Ignition Coil (not BEAMS)

Toyota 3SGTE Ignition Coil

Hyundai - Some Ignition Coils

Kia - Some Ignition Coils

Recommended Crimping Tools:

IWS-1424AB
