Crank Angle Sensor Connector Kit - Toyota

Crank Angle Sensor Connector Kit - Toyota

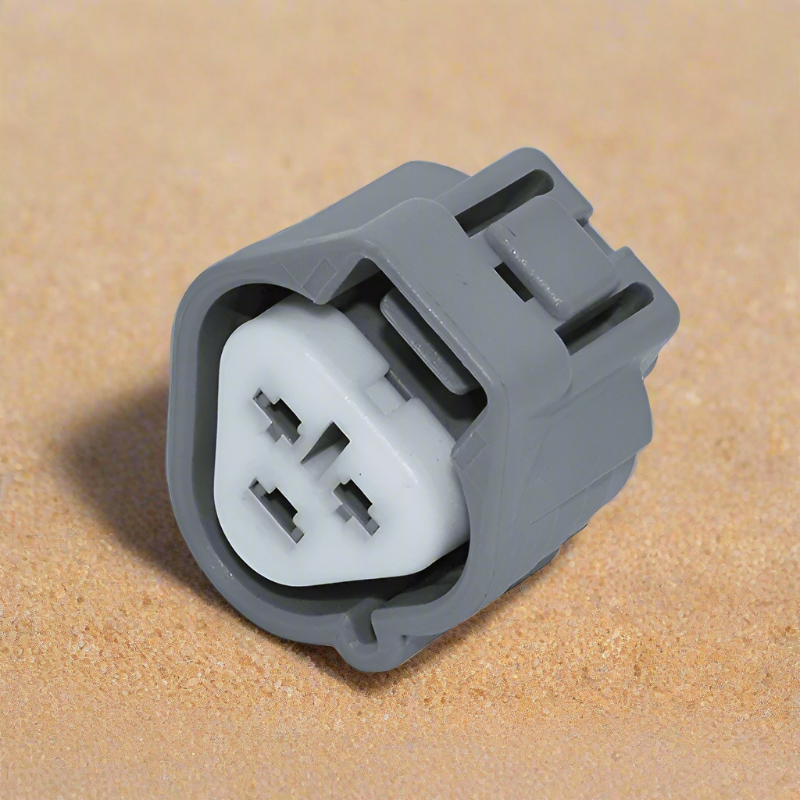

Grey 3 way sealed female connector kit complete with terminals and seals suits late model Toyota Crank Angle sensors.

Please refer to the applications tab below.

Jay-Dee Part #: TCAS3/K

Pack Qty: 1 (1 x Connector, 1 x Lock, 3 x Terminal, 3 x Seal)

Brand: Jay-Dee

Material: Housing: PBT+G,PA66+GF; Terminal: Copper Alloy, Brass, Phosphor Bronze

Operating Temperature range -40℃~120℃

Length: 24.15mm

Width: 24.10mm

Height: 29.05mm

Spare Terminals: AUDPT

Applications:

Toyota late model Crank Angle Sensors

Recommended Crimping Tools:

IWS-1424B
