Part #: AMP347713-1
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

Econoseal III 250 Series Seal

Name: Econoseal III 250 Series Seal
Brand: KinKong
SKU: AMP347713-1
Price: 0.3 AUD
Availability: InStock

$0.30

Description

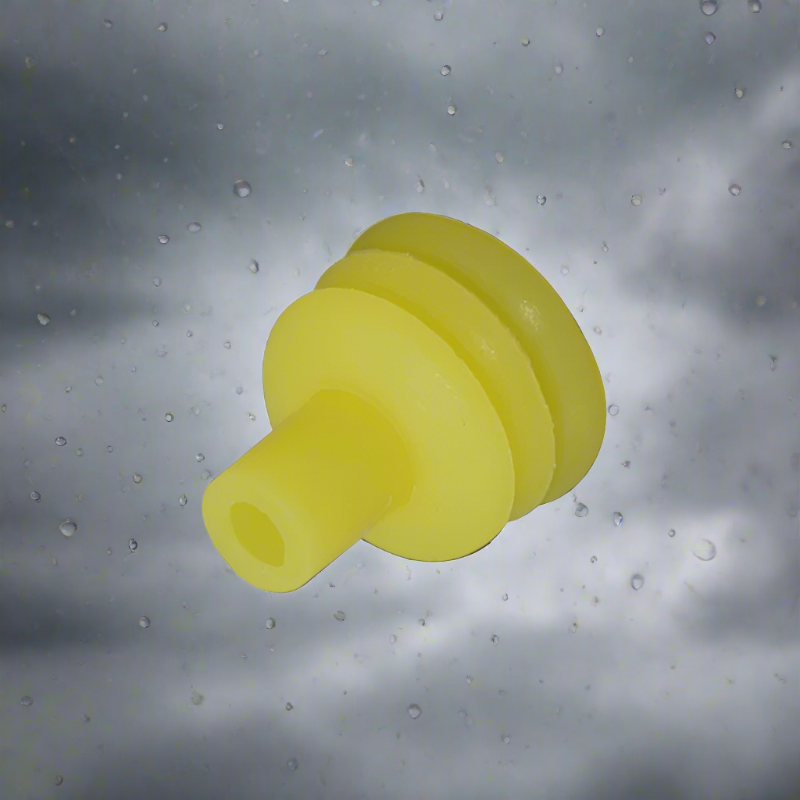

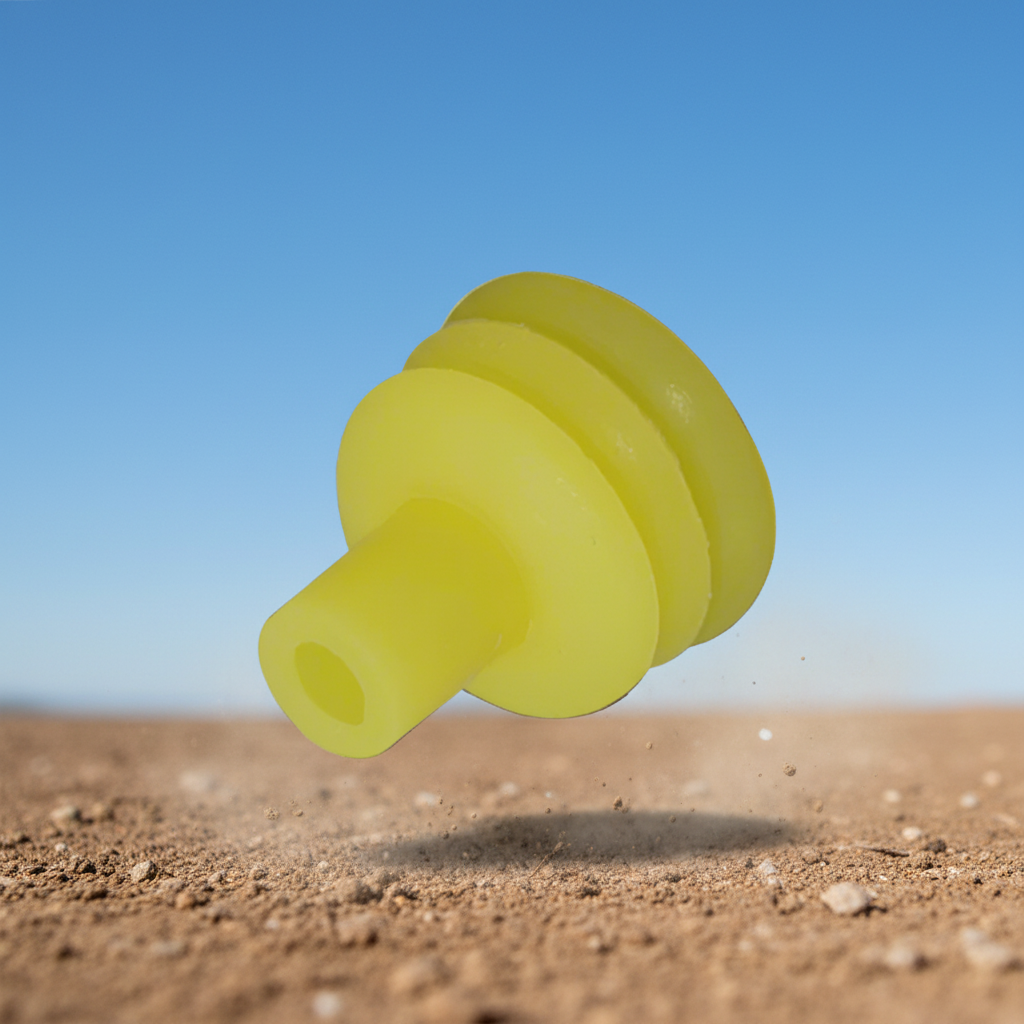

Yellow silicone wire seal suits AMP Econoseal III 250 Series and other connectors that have a seal opening of 9.3mmØ.

Jay-Dee Part #: AMP347713-1

Pack Qty: 10 Pack (Ordered as 1)

Brand: Jay-Dee

Colour: Yellow

Material: Silicone

Length: 9.80mm

Diameter: 9.30mm

Wire Size: 2.0-3.0mm² (2.6 - 3.4mm⌀)

Recommended Crimping Tools:

IWS-1424AB

Reviews

Cable Type	Nominal Area	Outside Diameter	Amp Rating @ 30°C
8B&S Single Core	7.71mm²	5.5mm	74A
6B&S Single Core	13.50mm²	7.2mm	103A
4B&S Single Core	20.26mm²	8.3mm	135A
3B&S Single Core	26.45mm²	10.2mm	168A
2B&S Single Core	32.07mm²	11.3mm	188A
1B&S Single Core	39.55mm²	12.1mm	210A
0B&S Single Core	49.00mm²	12.7mm	246A
00B&S Single Core	64.15mm²	14.5mm	292A
000B&S Single Core	83.19mm²	16.4mm	335A
8B&S Twin Core	7.71mm²	7.1mm x 12.5mm	59.2A
6B&S Twin Core	13.50mm²	8.8mm x 16.0mm	82.4A
4B&S Twin Core	20.26mm²	10.3mm x 18.6mm	108A
2B&S Twin Core	32.07mm²	13.4mm x 24.6mm	150.4A
2B&S Welding	35mm²	13.1mm	155A
0B&S Welding	50mm²	14.9mm	185A
00B&S Welding	70mm²	17.0mm	240A
