C2TS-12-1

Twin Sheath Cable - 5mm (2.90mm²)

Colour
Red/Black
Red/Blue
Length
Cable Size
99 items left

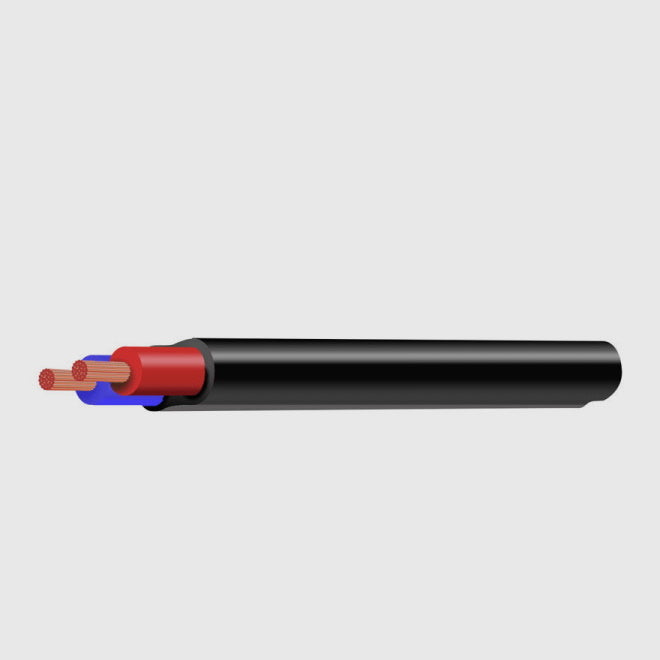

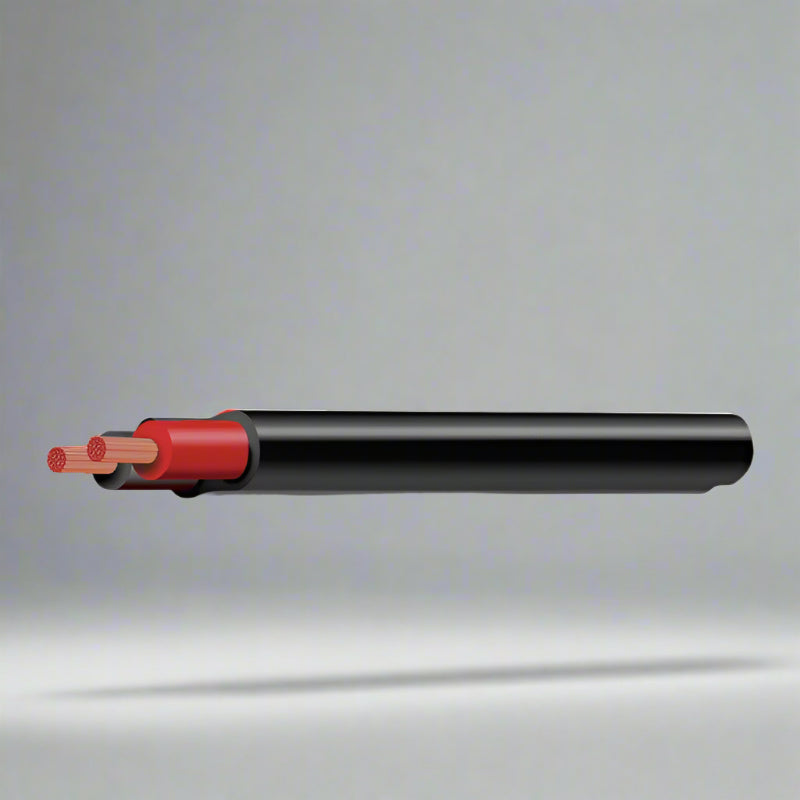

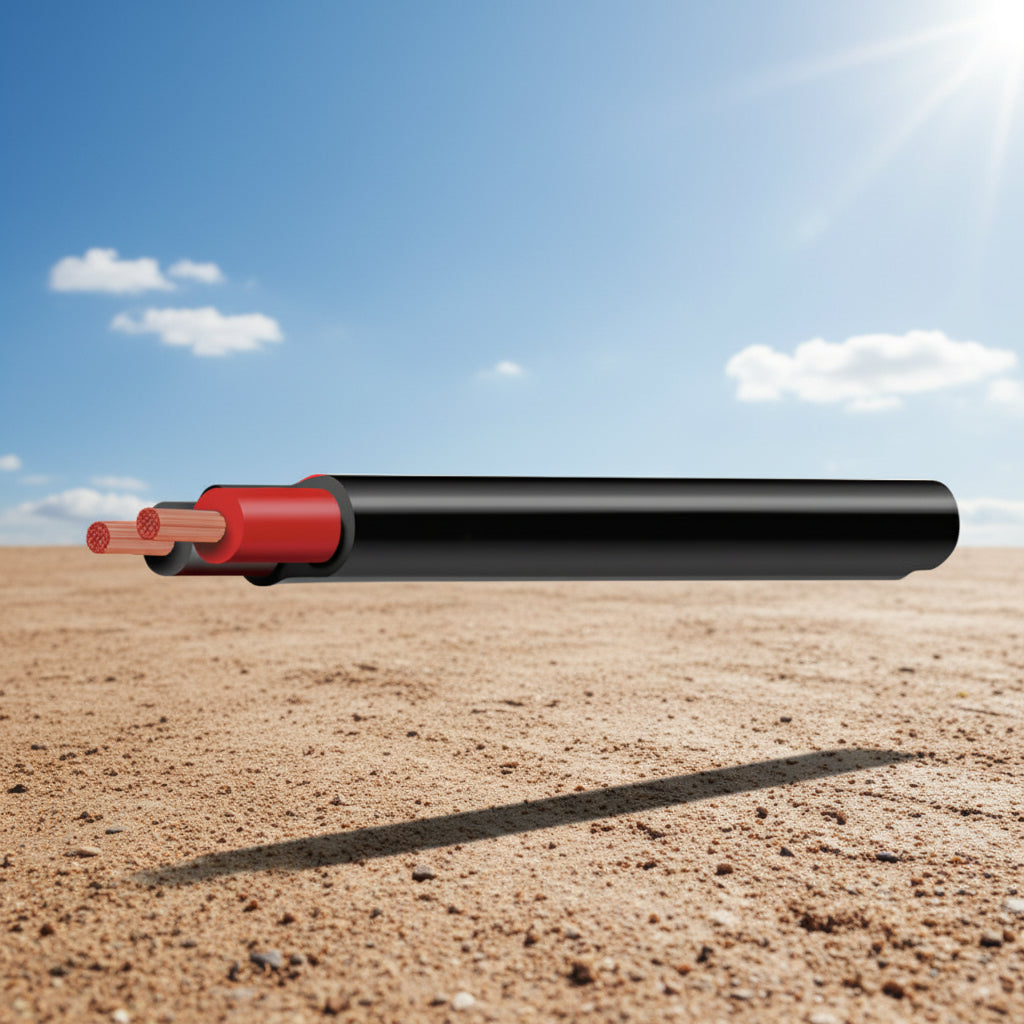

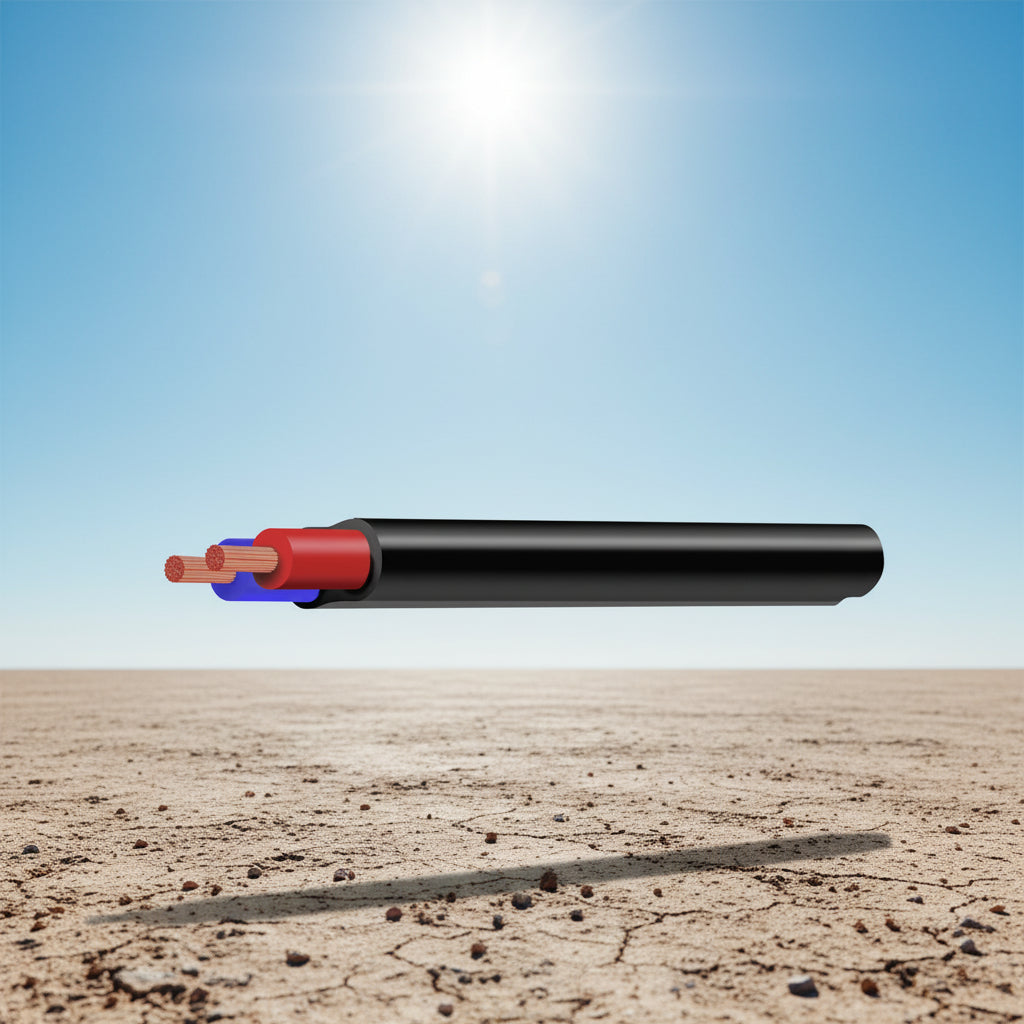

Twin Sheath Cable - 5mm Auto Size (2.90mm²) 29 Amp

Indusrty Standard Size: 5mm

Conductor Material: Oxygen free plain copper to 99.98%

Conductor Size: 36/.032mm

Nominal Conductor Area: 2.90mm²

AMP Rating: 29A (refer JASO D609 derating factors)

Indusrty Material: V90 PVC to AS/NZS 3808

Insulation Thickness: 0.40/0.60mm

Resistance: 6.00Ω @20°C (ohm/km)­­

Nominal OD: 4.7mm x 7.5mm


Sheath Colour: Black

Core Colour: Red/Black or Red/Blue

Length: 1m, 30m, 100m
