Part #: C2TS-14-1
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

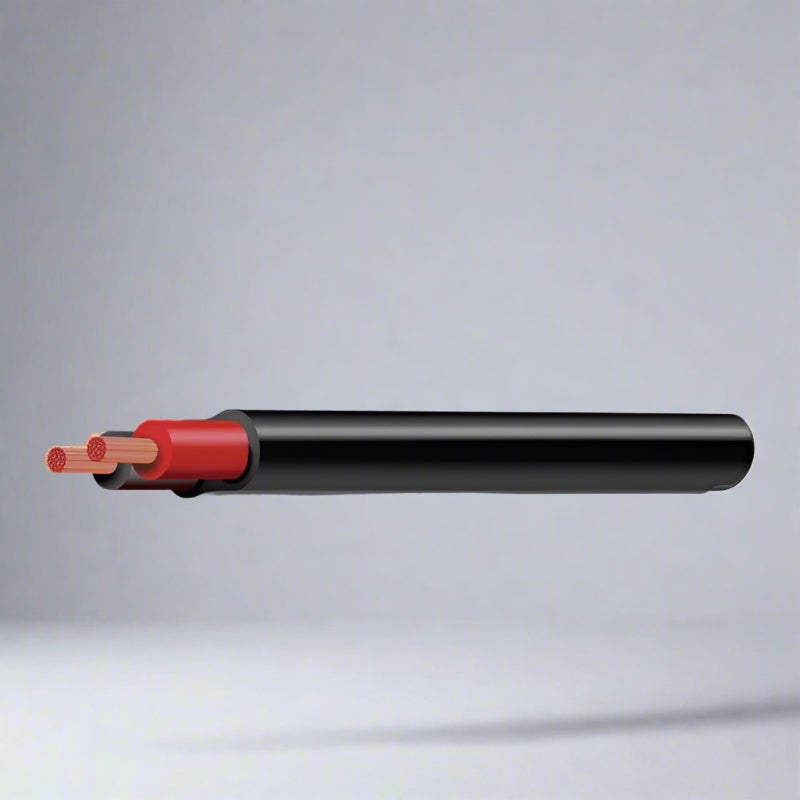

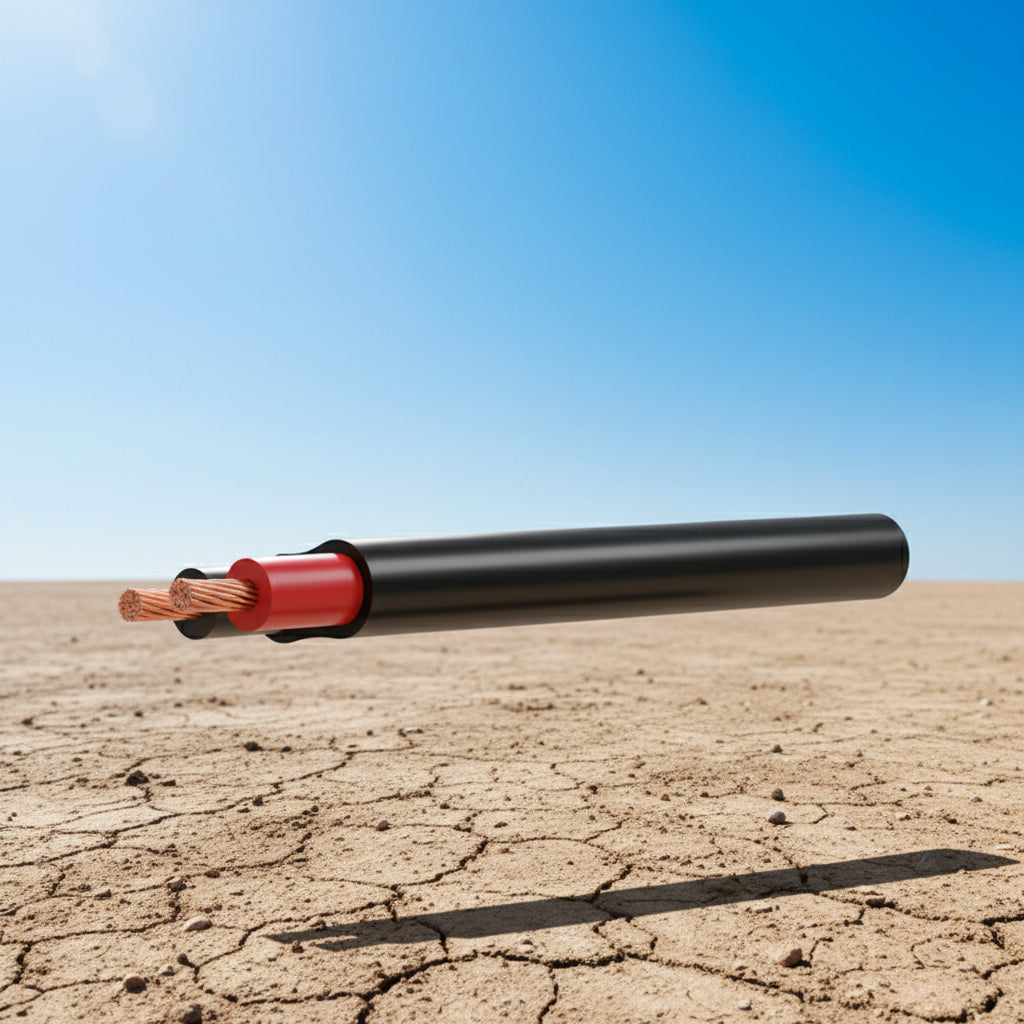

Twin Sheath Cable 4mm (1.84mm²)

Name: Twin Sheath Cable 4mm (1.84mm²)
Brand: Key Cables
SKU: C2TS-14-1
Price: 2.45 AUD
Availability: InStock

$2.45

Description

Industry Standard Size: 4mm

Conductor Material: Oxygen free plain copper to 99.98%

Conductor Size: 23/.032mm

Nominal Conductor Area: 1.84mm²

AMP Rating: 29A (refer JASO D609 derating factors)

Industry Material: V90 PVC to AS/NZS 3808

Insulation Thickness: 0.40/0.60mm

Resistance: 9.50Ω @20°C (ohm/km)

Nominal OD: 4.0mm x 6.5mm

Sheath Colour: Black

Core Colour: Red & Black

Length: 1m, 30m, 100m

Reviews

Cable Type	Nominal Area	Outside Diameter	Amp Rating @ 30°C
8B&S Single Core	7.71mm²	5.5mm	74A
6B&S Single Core	13.50mm²	7.2mm	103A
4B&S Single Core	20.26mm²	8.3mm	135A
3B&S Single Core	26.45mm²	10.2mm	168A
2B&S Single Core	32.07mm²	11.3mm	188A
1B&S Single Core	39.55mm²	12.1mm	210A
0B&S Single Core	49.00mm²	12.7mm	246A
00B&S Single Core	64.15mm²	14.5mm	292A
000B&S Single Core	83.19mm²	16.4mm	335A
8B&S Twin Core	7.71mm²	7.1mm x 12.5mm	59.2A
6B&S Twin Core	13.50mm²	8.8mm x 16.0mm	82.4A
4B&S Twin Core	20.26mm²	10.3mm x 18.6mm	108A
2B&S Twin Core	32.07mm²	13.4mm x 24.6mm	150.4A
2B&S Welding	35mm²	13.1mm	155A
0B&S Welding	50mm²	14.9mm	185A
00B&S Welding	70mm²	17.0mm	240A
