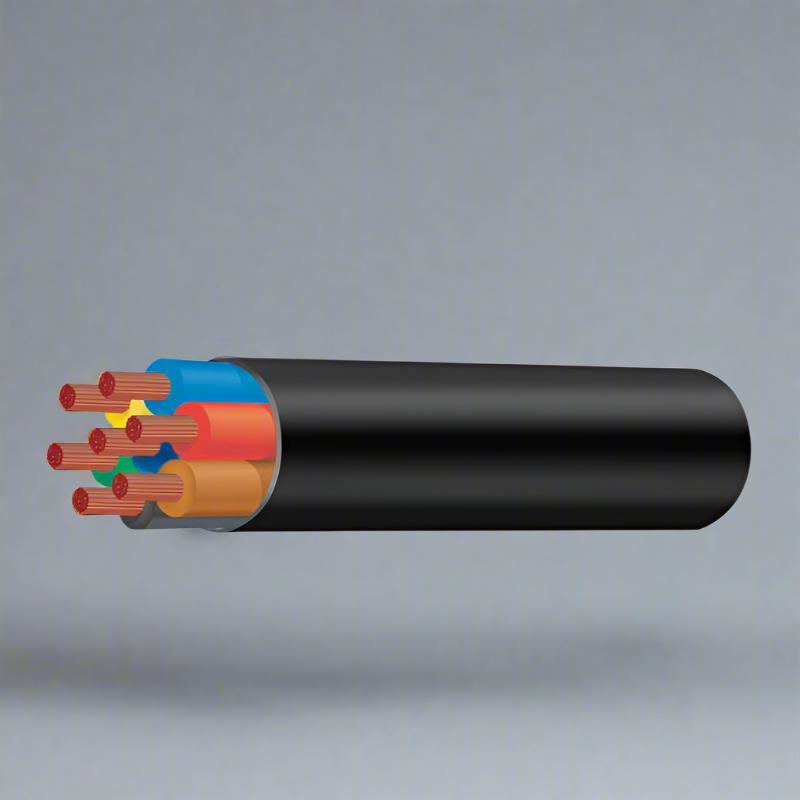

7 Core Cable - 2mm (0.56mm²)


80 items left

7 Core Trailer Cable - 2mm Auto Size (0.56mm²) 5 Amp

Industry Standard Size: 2mm

Conductor Material: Oxygen free plain copper to 99.98%

Conductor Size: 7/.032mm

Nominal Conductor Area: 0.56mm²

AMP Rating: 5A (refer JASO D609 derating factors)

Industry Material: V90 PVC to AS/NZS 3808

Insulation Thickness: 0.40/.060mm

Resistance: 31.70Ω @20°C (ohm/km)­­

Nominal OD: 6.6mm

Colour: Black Outer Sheath/Black, Blue, Green, Brown, Red, White & Yellow Cores

Length: 1m, 30m, 100m
