C5TR-16-1

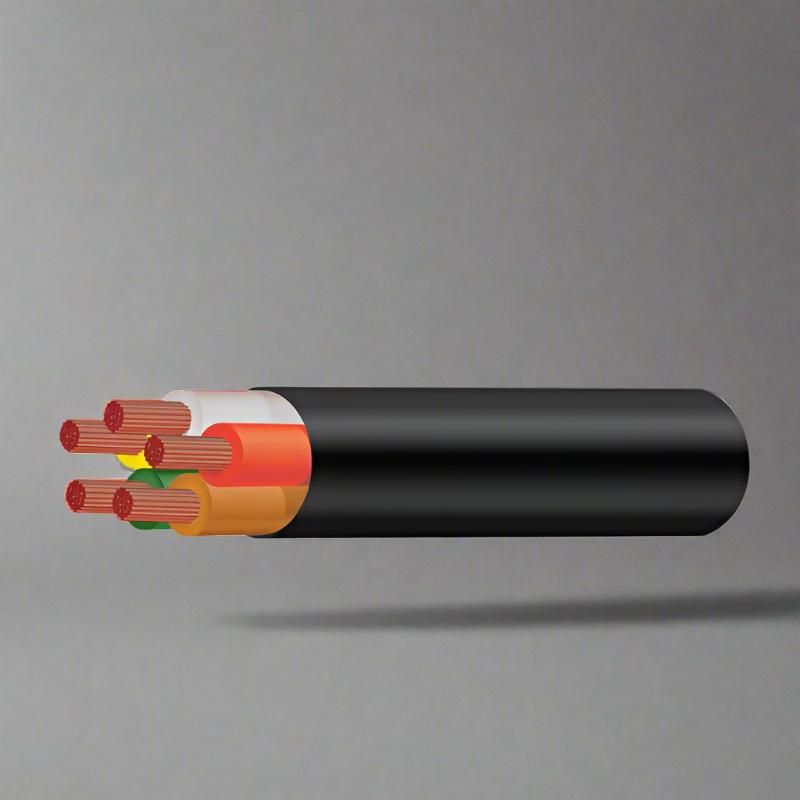

5 Core Trailer Cable - 3mm (1.13mm²)

Length
20 items left

5 Core Trailer Cable - 3mm Auto Size (1.13mm²) 11 Amp

Industry Standard Size: 3mm

Conductor Material: Oxygen free plain copper to 99.98%

Conductor Size: 14/.032mm

Nominal Conductor Area: 1.13mm²

AMP Rating: 11A (refer JASO D609 derating factors)

Indusrty Material: V90 PVC to AS/NZS 3808

Insulation Thickness: 0.40/.060mm

Resistance: 15.80Ω @20°C (ohm/km)­­

Nominal OD: 7.3mm


Colour: Black Outer Sheath/Green, Brown, Red, White & Yellow Cores

Length: 1m, 30m, 100m
