4 Core Multi Cable
  • Part #: C4TR-6653-30
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

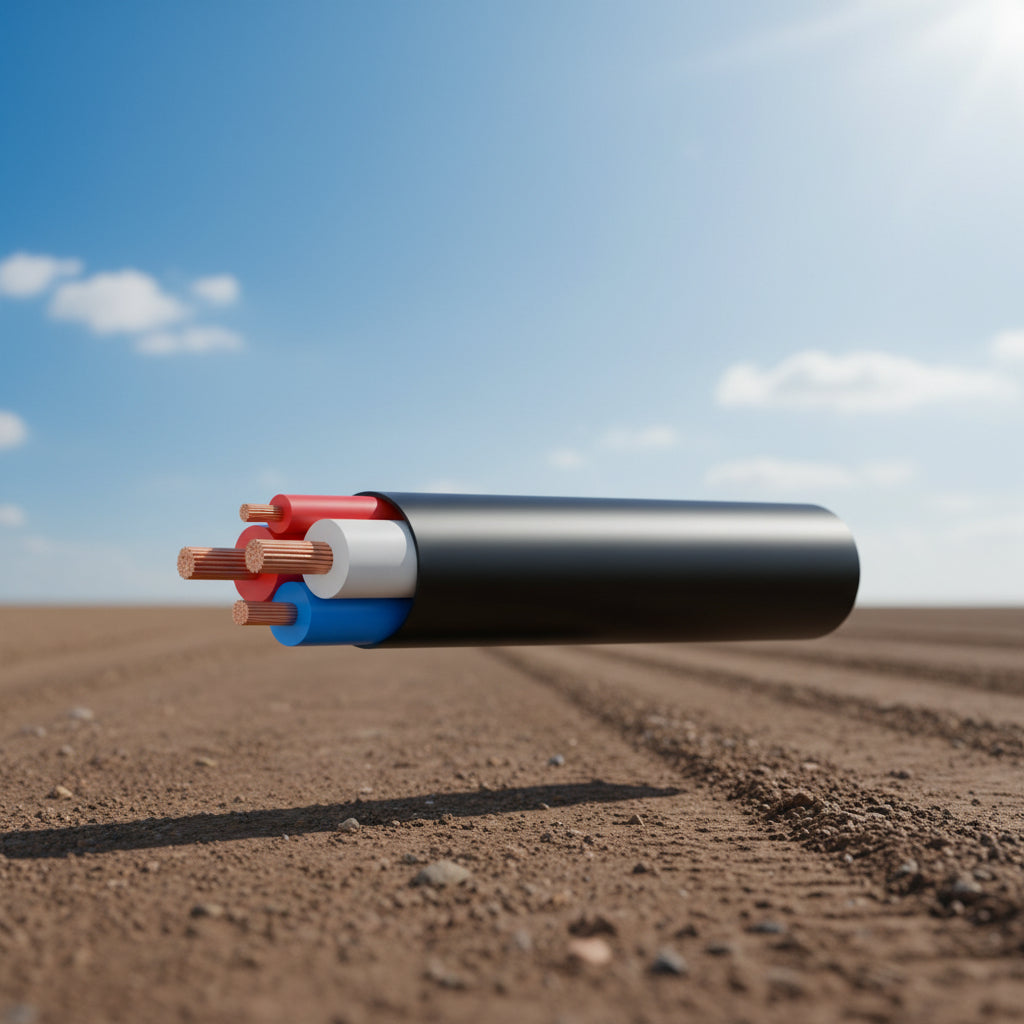

4 Core Multi Cable


Scroll down page for more product details. . .


4 Core Trailer Cable - Multi Auto Size

Industry Standard Size: 1 x 3mm, 1 x 5mm, 2 x 6mm

Conductor Material: Oxygen free plain copper to 99.98%

Conductor Size: 1 x 14/.032, 1 x 36/.032, 2 x 57/.032mm

Nominal Conductor Area: 1 x 1.13mm², 1 x 2.90mm²,  2 x 4.59mm²

AMP Rating: 20 - 38A per core (refer JASO D609 derating factors)

Indusrty Material: V90 PVC to AS/NZS 3808

Insulation Thickness: 0.40 - 0.60mm

Resistance: 3.80 - 15.80Ω @20°C (ohm/km)­­

Nominal OD: 10.0mm

Colour: Black Outer Sheath/Red 3mm, Blue 5mm, Red 6mm, White 6mm Cores

Length: 30m
