C4TR-16-30

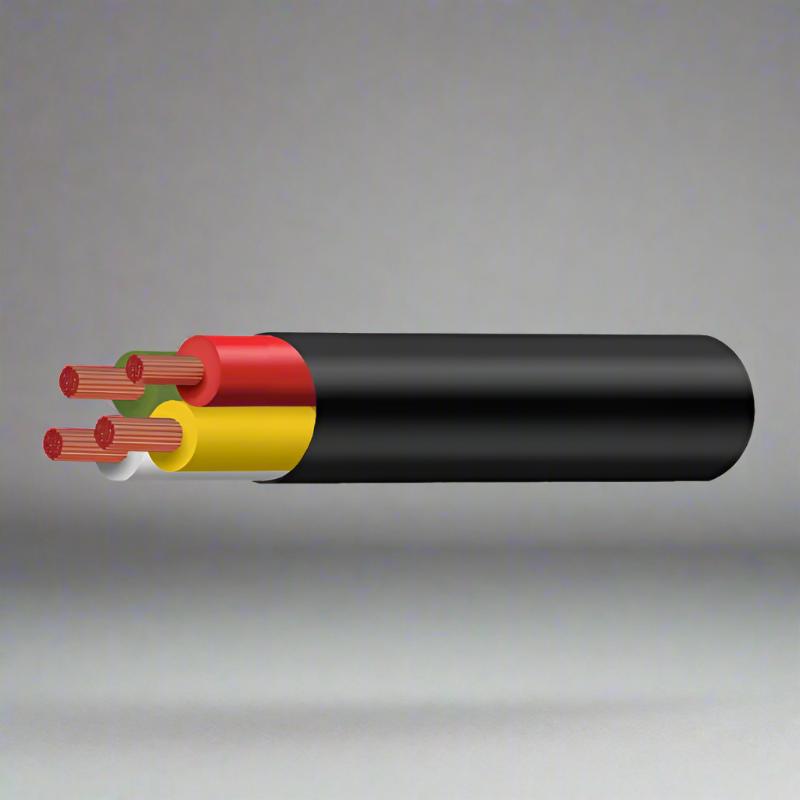

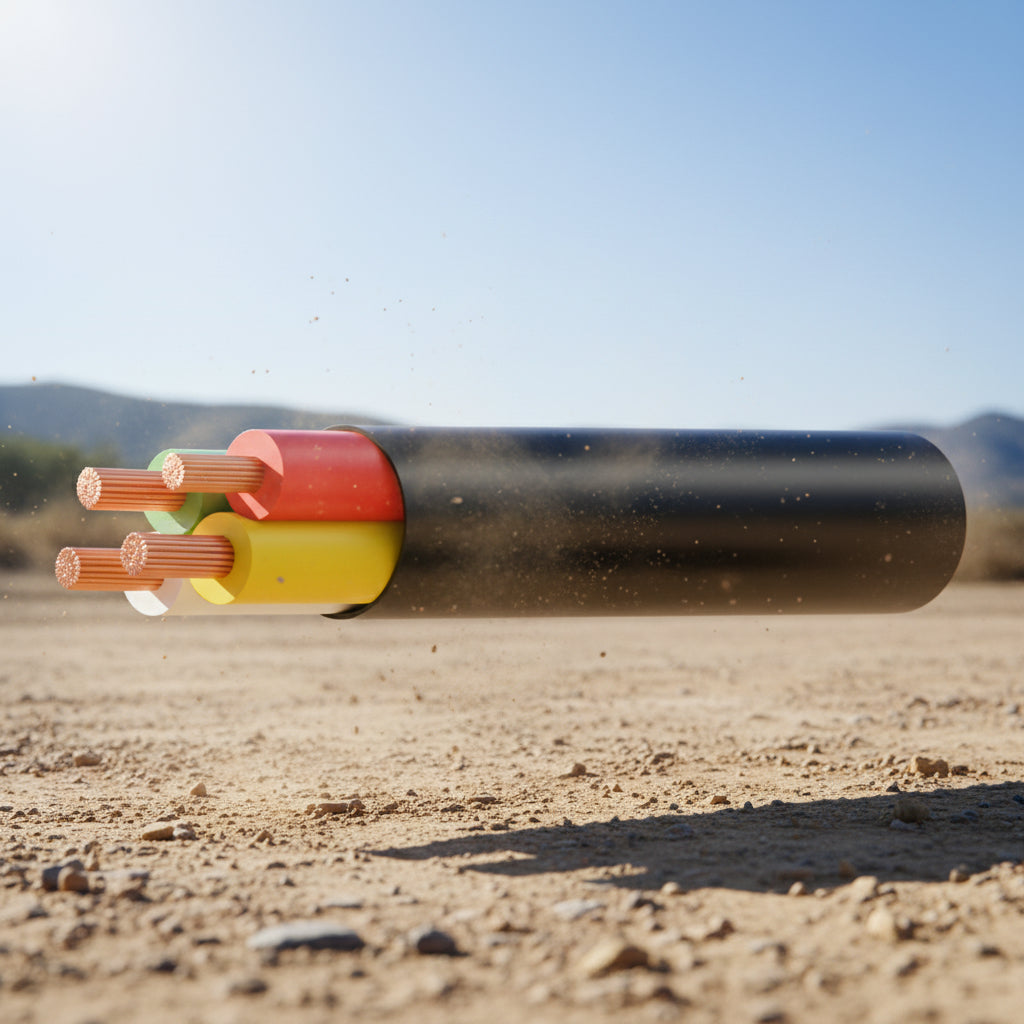

4 Core Trailer Cable - 3mm (0.92mm²)

Length
5 items left

4 Core Trailer Cable - 3mm (0.92mm²) 12 Amp

Industry Standard Size: 3mm

Conductor Material: Oxygen free plain copper to 99.98%

Conductor Size: 13/.03mm per core

Nominal Conductor Area: 0.92mm² per core

AMP Rating: 12A per core (refer JASO D609 derating factors)

Indusrty Material: V90 PVC to AS/NZS 3808

Insulation Thickness: 0.40mm

Resistance: 15.80Ω @20°C (ohm/km)­­

Nominal OD: 6.7mm


Colour: Black Outer Sheath/Green, Red, White & Yellow Cores

Length: 30m, 100m
