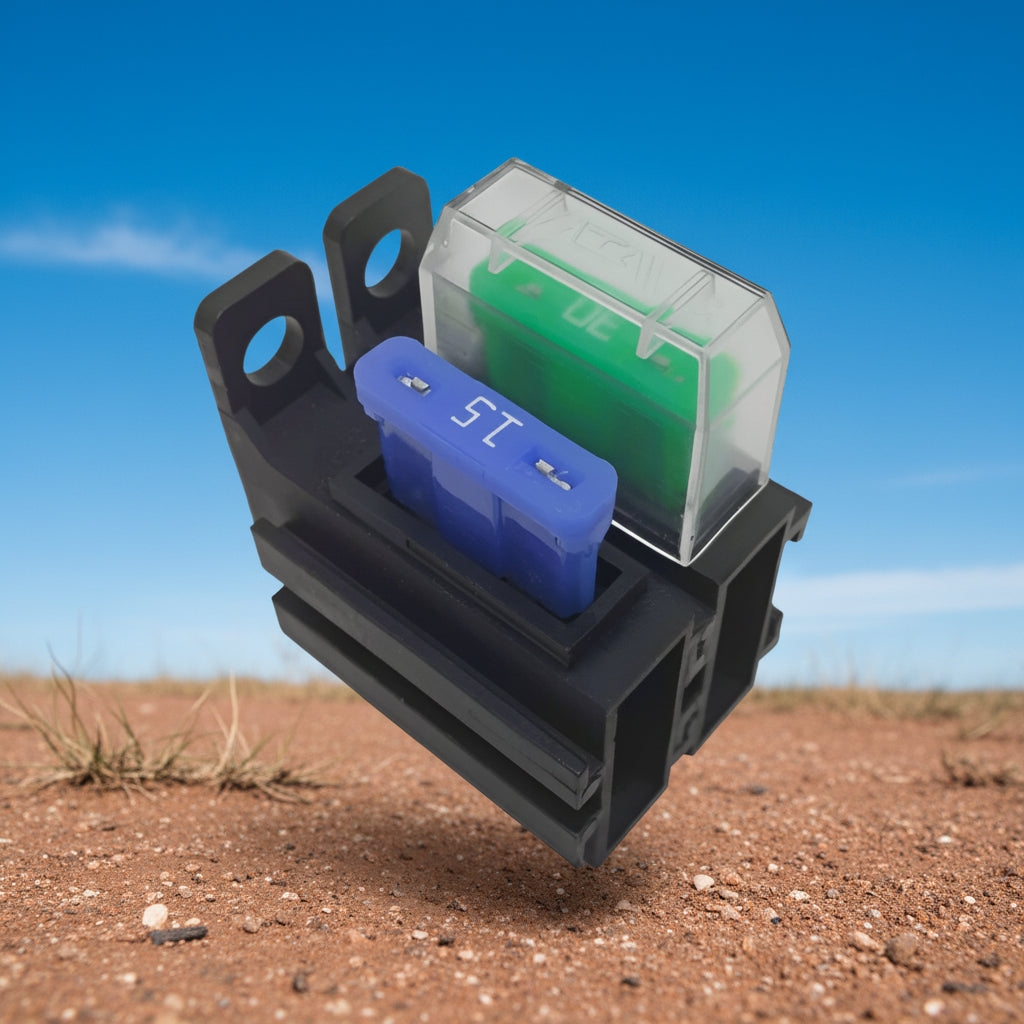

These Fuse Holders for Standard AF Blade Fuses with are able to be stacked together to create a bank of fuses.
They can also be dovetailed with MRA3 and MRA6/K relay holders to create a bank of fuses and relays.

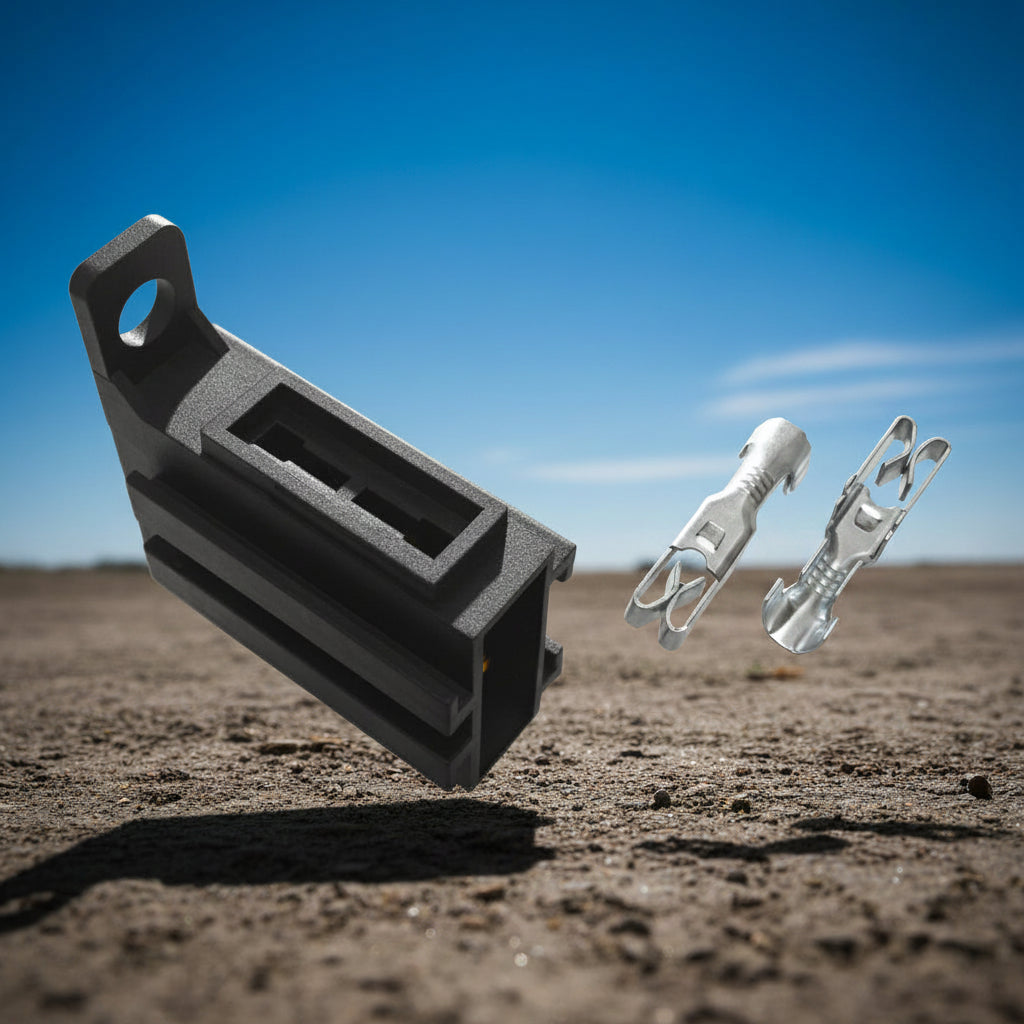

Kit includes: 1 x Body, 2 x Terminals (Terminals and Transparent Cover also sold separately)
Part #: MRA3F
Pack Qty: 1
Brand: IKA
Voltage: 32V
Fuse Positions: 1
Materials: Black thermoplastic
Terminals: Tin Plated Brass Crimp Style (2-3mm² in kit)
Current Rating: 30A max load per circuit.
Cover: Splash resistant transparent cover
Total Dimensions: No Cover - L36.0mm x W14.8mm x H36.0mm
With Cover - L36.0mm x W14.8mm x H42.0mm

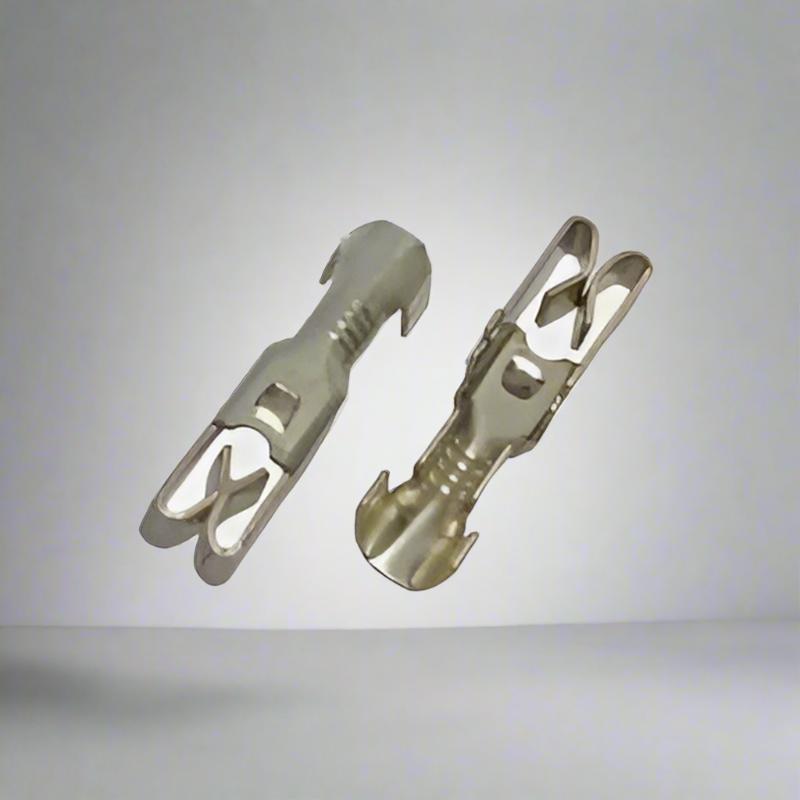

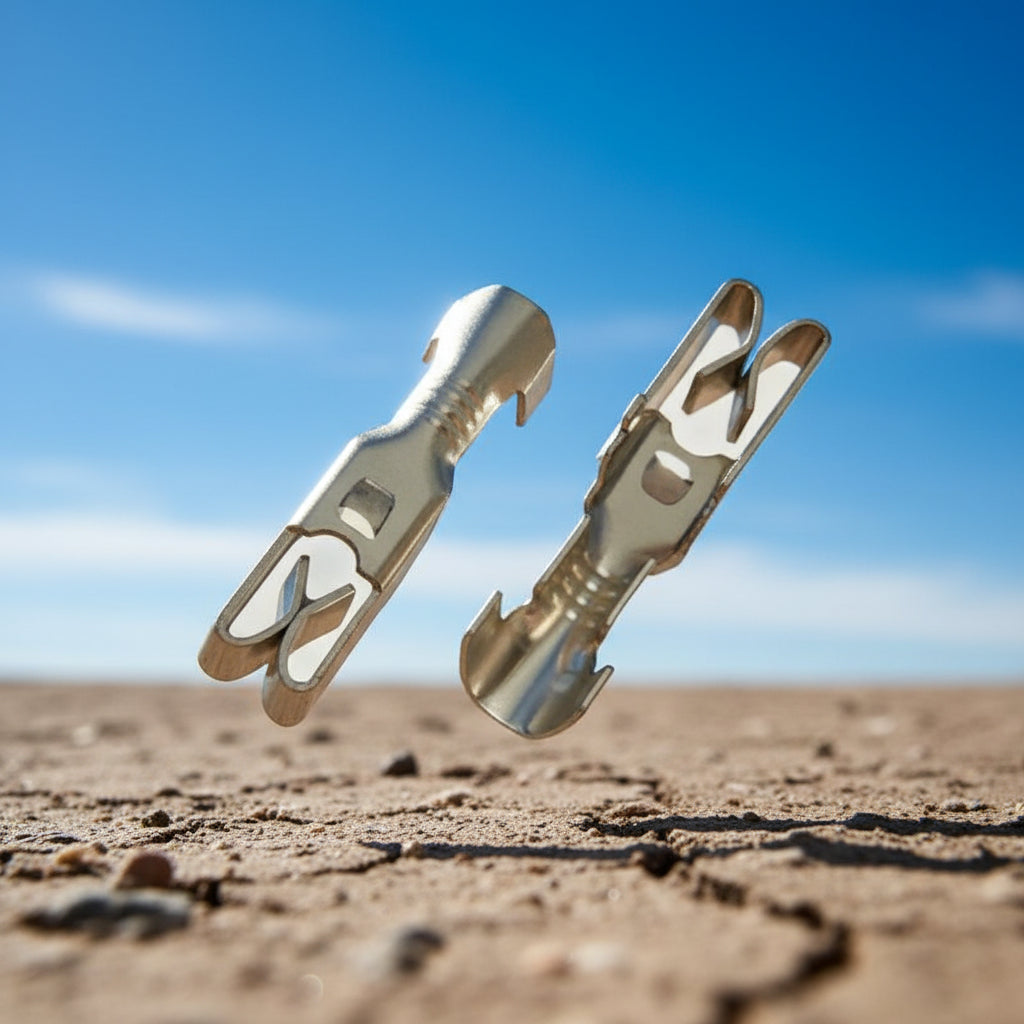

Spare Terminals also sold separately in two sizes:
Standard: 2-3mm² (MRA3FT)
Large: 4-6mm² (MRA3FTL)

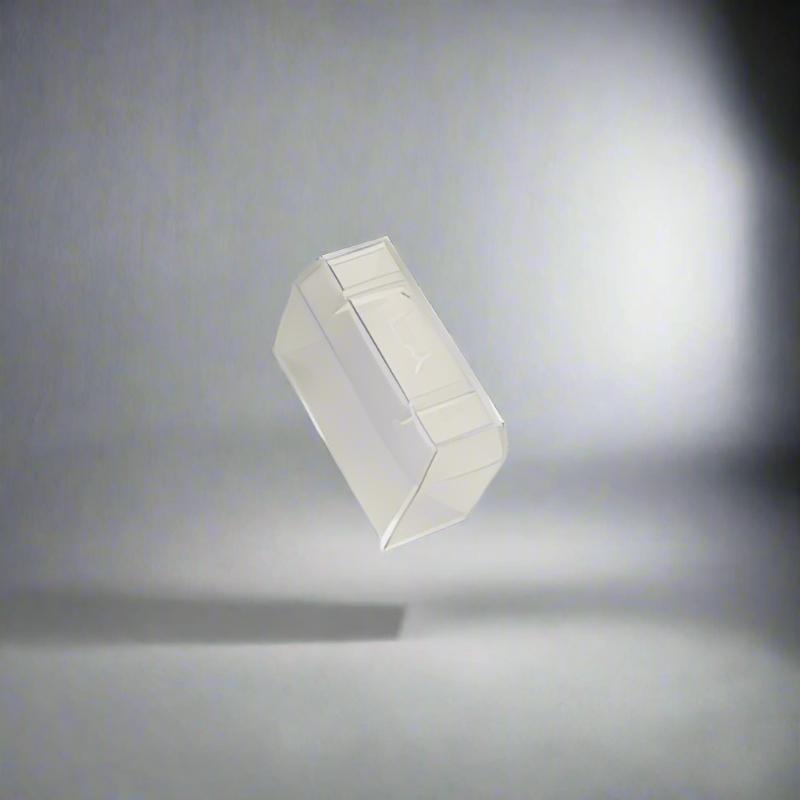

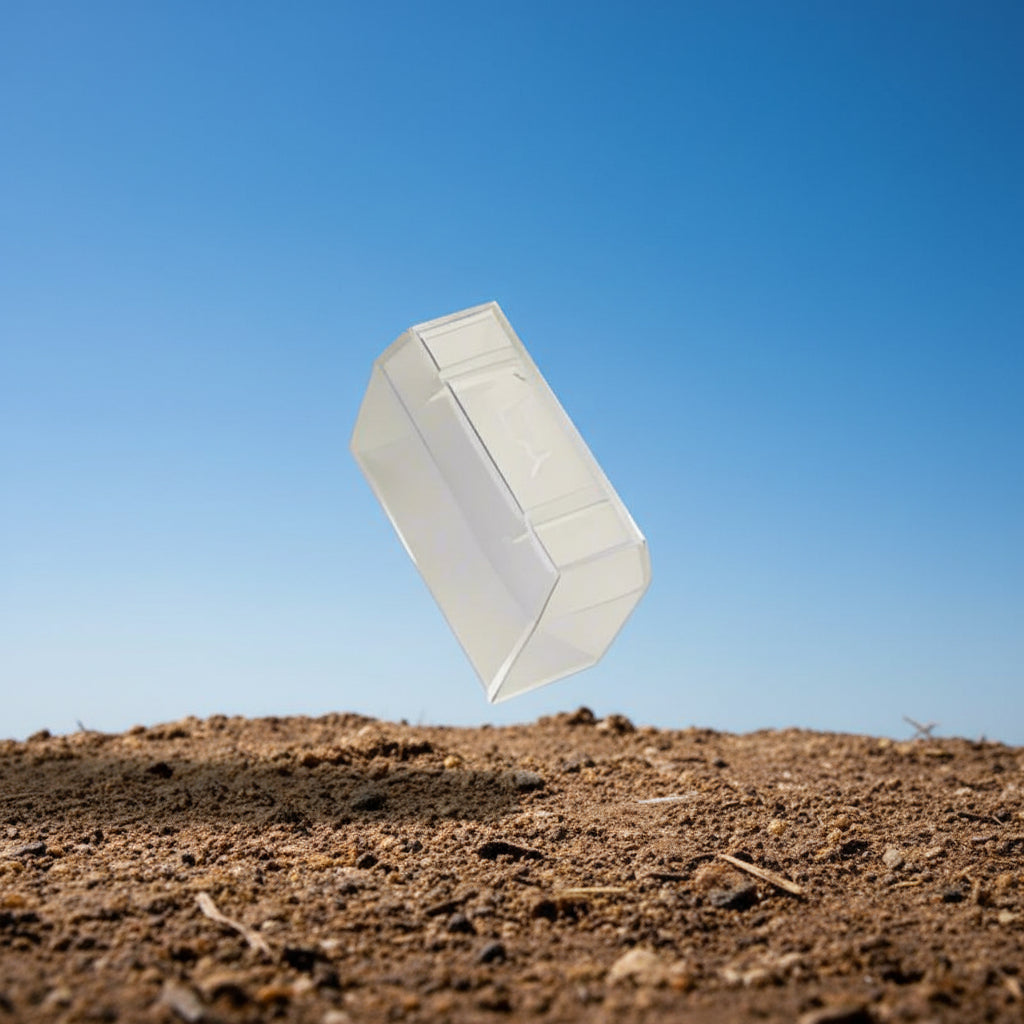

Cover:
Transparent Cover: MRA3FC
Recommended Crimping Tools:
JD61
JD62
IWS-1424AB
Cable Type | Nominal Area | Outside Diameter | Amp Rating @ 30°C |
---|---|---|---|
8B&S Single Core | 7.71mm² | 5.5mm | 74A |
6B&S Single Core | 13.50mm² | 7.2mm | 103A |
4B&S Single Core | 20.26mm² | 8.3mm | 135A |
3B&S Single Core | 26.45mm² | 10.2mm | 168A |
2B&S Single Core | 32.07mm² | 11.3mm | 188A |
1B&S Single Core | 39.55mm² | 12.1mm | 210A |
0B&S Single Core | 49.00mm² | 12.7mm | 246A |
00B&S Single Core | 64.15mm² | 14.5mm | 292A |
000B&S Single Core | 83.19mm² | 16.4mm | 335A |
8B&S Twin Core | 7.71mm² | 7.1mm x 12.5mm | 59.2A |
6B&S Twin Core | 13.50mm² | 8.8mm x 16.0mm | 82.4A |
4B&S Twin Core | 20.26mm² | 10.3mm x 18.6mm | 108A |
2B&S Twin Core | 32.07mm² | 13.4mm x 24.6mm | 150.4A |
2B&S Welding | 35mm² | 13.1mm | 155A |
0B&S Welding | 50mm² | 14.9mm | 185A |
00B&S Welding | 70mm² | 17.0mm | 240A |
