Part #: H16LPB
Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

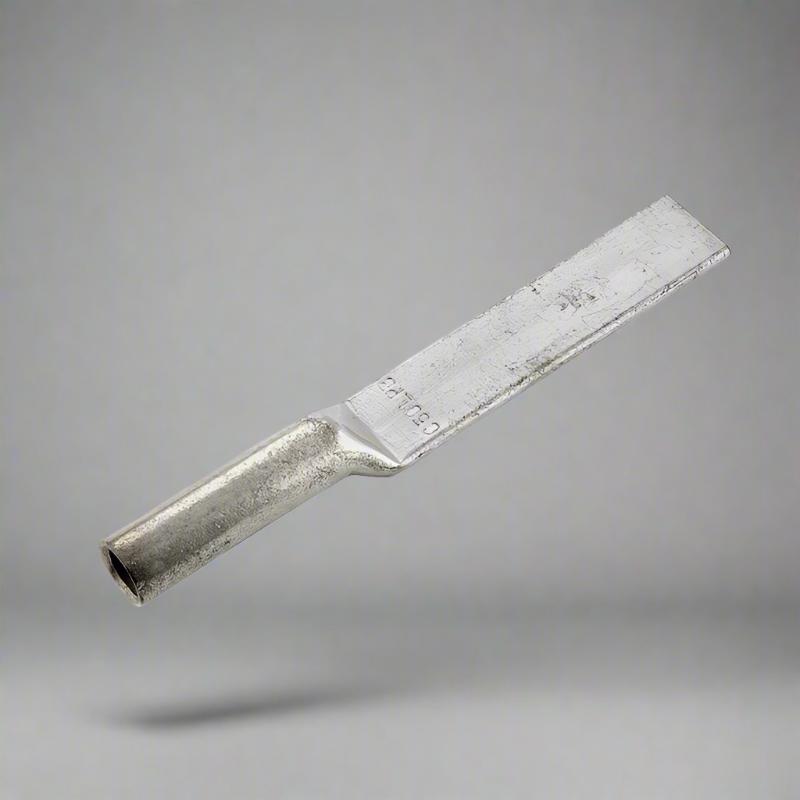

Copper Crimp Long Palm

$4.45

Description

The barrels are internally silver soldered at the palm junction and the inspection window is not present

These lugs can easily be modified to make special lugs by bending the palm, cropping the palm or shortening the barrel

Recommended Crimping Tools:

IWS-16

20A or 20B

Reviews

Cable Type	Nominal Area	Outside Diameter	Amp Rating @ 30°C
8B&S Single Core	7.71mm²	5.5mm	74A
6B&S Single Core	13.50mm²	7.2mm	103A
4B&S Single Core	20.26mm²	8.3mm	135A
3B&S Single Core	26.45mm²	10.2mm	168A
2B&S Single Core	32.07mm²	11.3mm	188A
1B&S Single Core	39.55mm²	12.1mm	210A
0B&S Single Core	49.00mm²	12.7mm	246A
00B&S Single Core	64.15mm²	14.5mm	292A
000B&S Single Core	83.19mm²	16.4mm	335A
8B&S Twin Core	7.71mm²	7.1mm x 12.5mm	59.2A
6B&S Twin Core	13.50mm²	8.8mm x 16.0mm	82.4A
4B&S Twin Core	20.26mm²	10.3mm x 18.6mm	108A
2B&S Twin Core	32.07mm²	13.4mm x 24.6mm	150.4A
2B&S Welding	35mm²	13.1mm	155A
0B&S Welding	50mm²	14.9mm	185A
00B&S Welding	70mm²	17.0mm	240A
