B24059

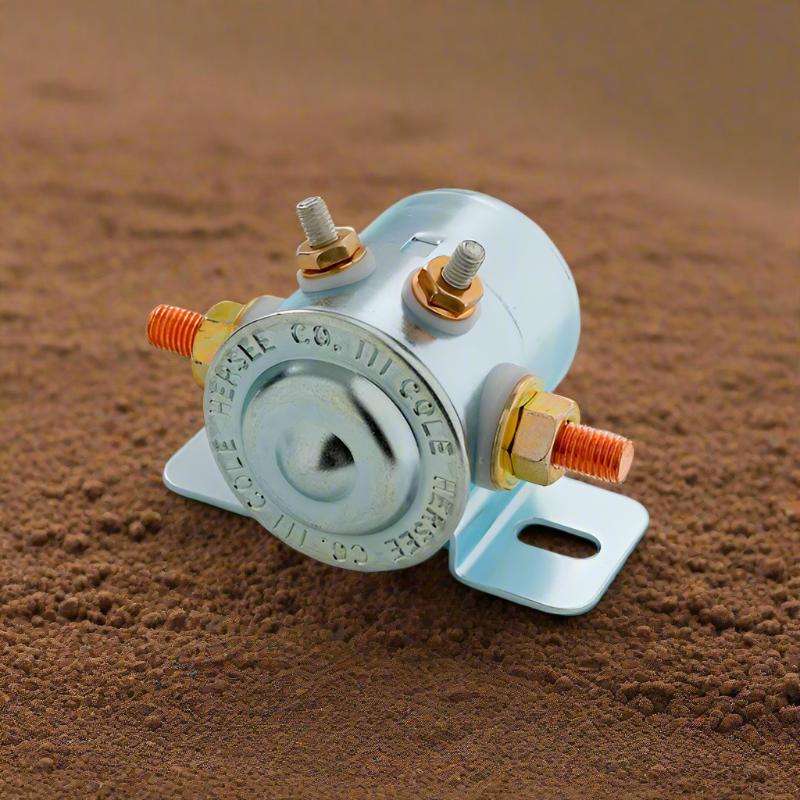

Cole Hersee 85A Solenoids

Volts
Type

Continuous Duty Solenoid SPST 12V 85A

4 stud, Insulated stud earth

SPST Normally open (one circuit) OFF/ON

Copper Stud terminals 5/16″-24

Insulated Coil terminals 10-32

Plated steel housing, nuts & washers Inc.

Mounting holes 8mm x 15mm, 56mm Centre to Centre

Mount with brand cap facing DOWN

Int. ratings: 10 sec ON, 30 min OFF



Voltage: 12V

  • Amperage: 85A Cont, 750A make, 100A break, 17.5 ohm
  • Dimensions: H 60 x D 64 x W 84
  • Configuration: SPST
  • Modes: Continuous Duty

Voltage: 24V

  • Amperage: 85A Cont, 120A make, 100A break, 71 ohm
  • Dimensions: H 60 x D 64 x W 84
  • Configuration: SPST
  • Modes: Continuous Duty
